| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 156-54-23360 | FENDER,L.H | 37613- | |
| 2 | 156-54-23120 | FENDER,R.H | 37613- | |
| 3 | 09420-01904 | HANDLE | 37613- | |
| 4 | 01010-81235 | BOLT | 37613- | |
| 5 | 01643-31232 | WASHER | 37613- | |
| 6 | 01010-82050 | BOLT | 37613- | |
| 7 | 01643-32060 | WASHER | 37613- |
- Главная
- Каталог запчастей
- Гусеничные трубоукладчики
- D85c 21 a s/n 36551 up
- Guard
- Fender (with combustible heater) (with winch safety device)(#37613 )
Поиск по каталогу

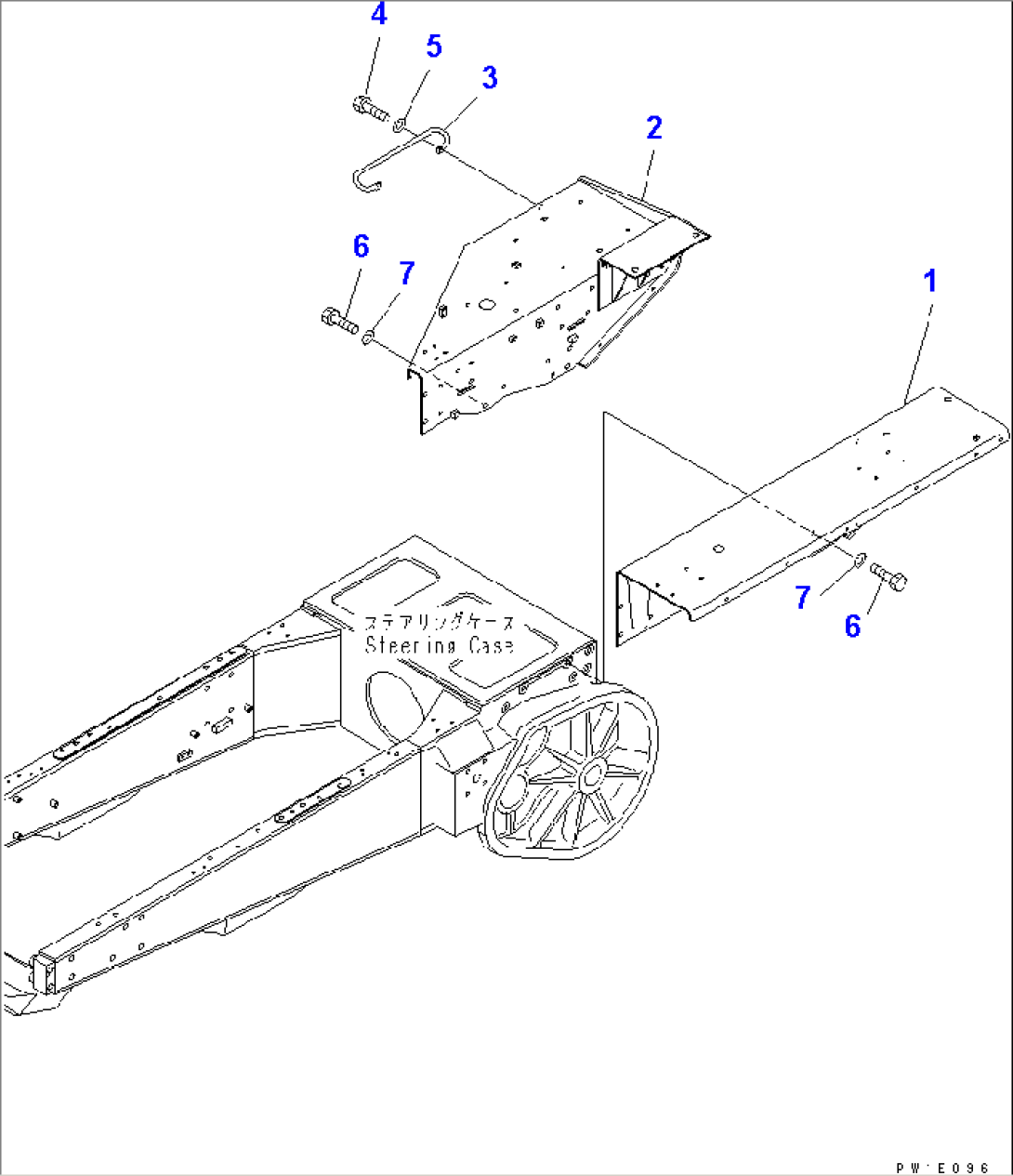

FENDER (WITH COMBUSTIBLE HEATER) (WITH WINCH SAFETY DEVICE)(#37613-)
