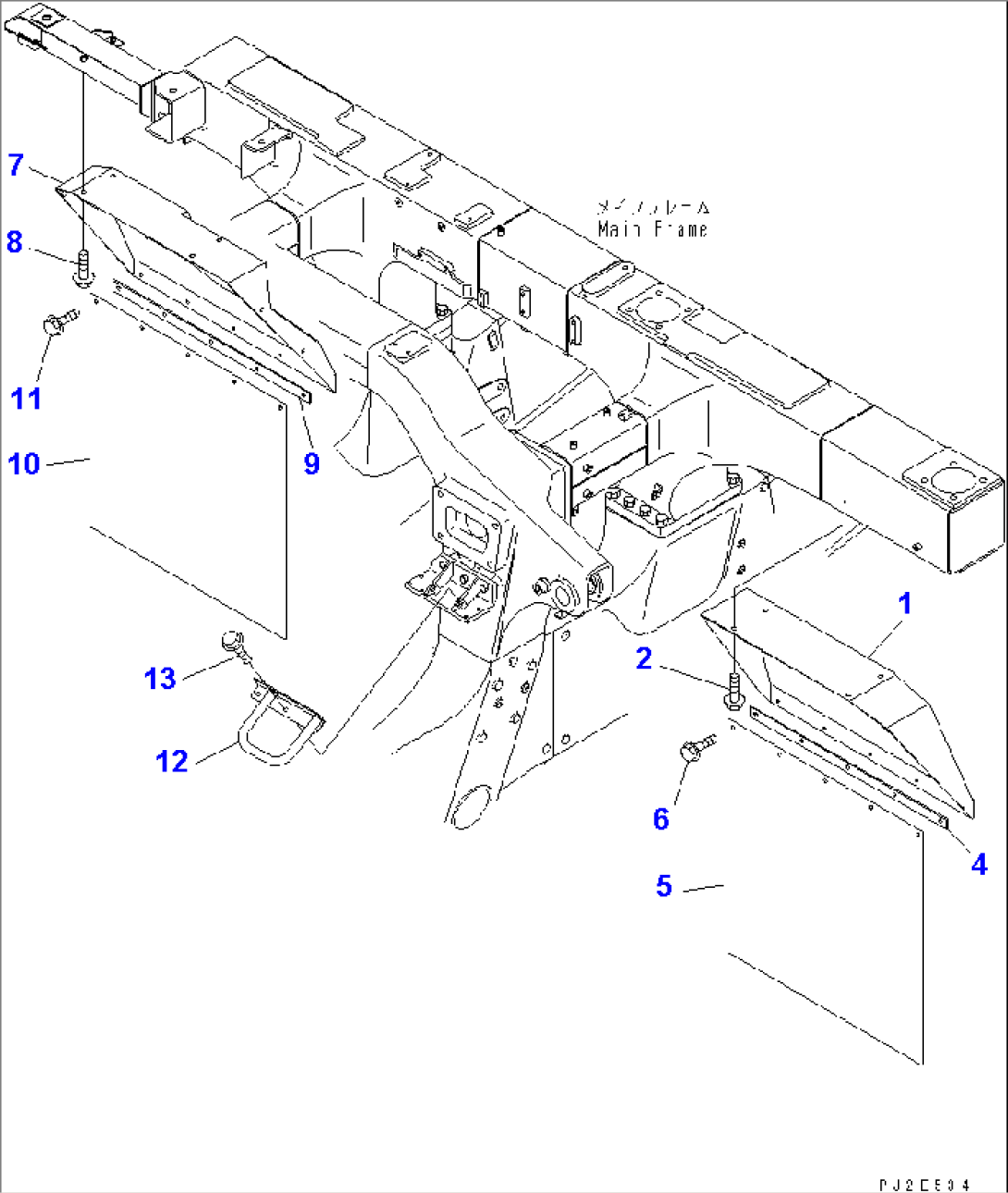

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 569-54-81511 | FENDER,L.H. | 7001-@ | |
| 2 | 01435-01220 | BOLT | 7001-@ | |
| 4 | 569-54-41551 | PLATE | 7001-@ | |
| 5 | 569-54-41541 | GUARD | 7001-@ | |
| 6 | 01435-01225 | BOLT | 7001-@ | |
| 7 | 569-84-82170 | FENDER,R.H. | 7001-7061 | |
| 8 | 01435-01225 | BOLT | 7001-7061 | |
| 9 | 569-54-41551 | PLATE | 7001-@ | |
| 10 | 569-54-41541 | GUARD | 7001-@ | |
| 11 | 01435-01225 | BOLT | 7001-@ | |
| 12 | 569-54-82180 | GRIP | 7001-@ | |
| 13 | 01435-01020 | BOLT | 7001-@ |
