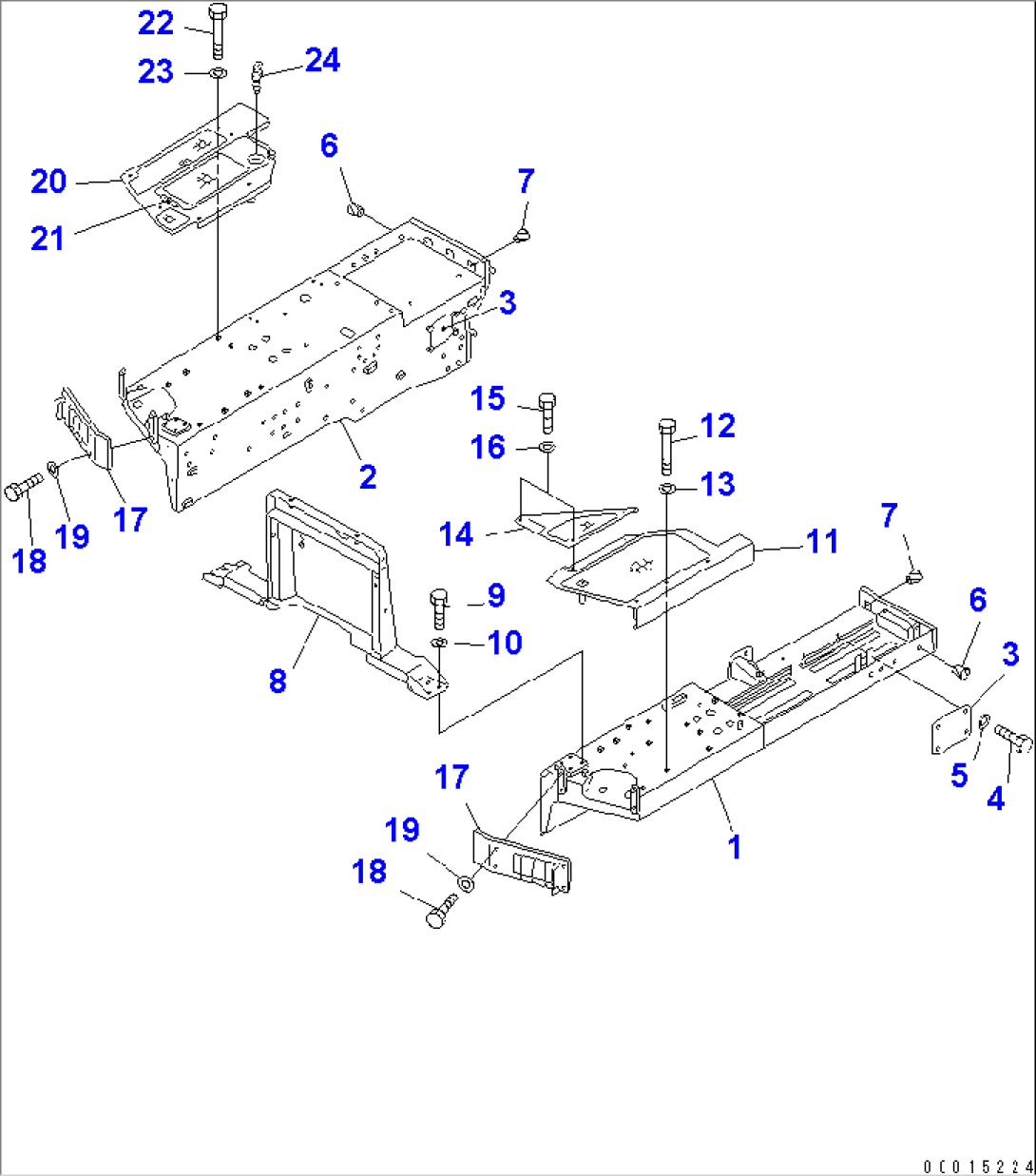

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 154-54-41732 | FENDER | 36534- | |
| 2 | 154-54-41742 | FENDER | 36534- | |
| 3 | 175-54-22420 | COVER | 36534- | |
| 4 | 01010-81230 | BOLT | 36534- | |
| 5 | 01643-31232 | WASHER | 36534- | |
| 6 | 07049-01620 | PLUG | 36534- | |
| 7 | 07049-02430 | PLUG | 36534- | |
| 8 | 154-54-41710 | BRACKET | 36534- | |
| 9 | 01010-81635 | BOLT | 36534- | |
| 10 | 01643-31645 | WASHER | 36534- | |
| 11 | 154-54-42271 | COVER | 36534- | |
| 12 | 01011-81210 | BOLT | 36534- | |
| 13 | 01643-31232 | WASHER | 36534- | |
| 14 | 154-54-42260 | COVER | 36534- | |
| 15 | 01010-81225 | BOLT | 36534- | |
| 16 | 01643-31232 | WASHER | 36534- | |
| 17 | 154-54-41954 | COVER | 36534- | |
| 18 | 195-54-43210 | BOLT | 36534- | |
| 19 | 198-54-42280 | WASHER | 36534- | |
| 20 | 154-54-42281 | COVER | 36534- | |
| 21 | 21T-54-14340 | HINGE (WELDED) | 36534- | |
| 22 | 01011-81210 | BOLT | 36534- | |
| 23 | 01643-31232 | WASHER | 36534- | |
| 24 | 09459-20000 | LOCK | 36534- |
