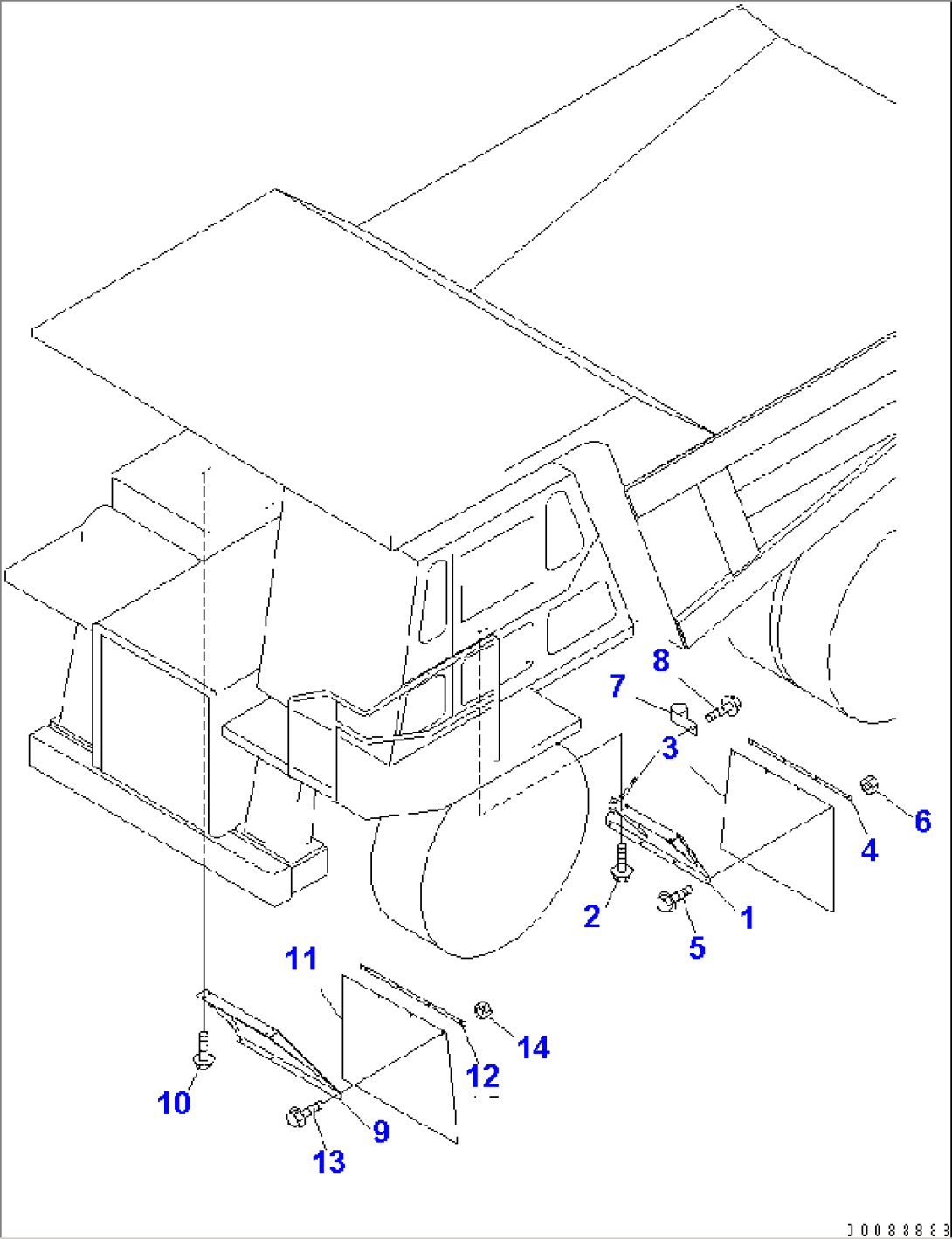

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 567-54-71752 | FENDER,L.H. | 1601- | |
| 2 | 01435-01225 | BOLT | 1601- | |
| 3 | 566-54-41532 | GUARD | 1618- | |
| 3 | 567-54-72730 | GUARD | 1601-1617 | |
| 4 | 566-54-41542 | PLATE | 1601- | |
| 5 | 01435-01230 | BOLT | 1601- | |
| 6 | 01580-11210 | NUT | 1601- | |
| 7 | 04434-51510 | CLIP | 1601- | |
| 8 | 01435-01016 | BOLT | 1601- | |
| 9 | 567-54-71260 | FENDER,R.H. | 1601- | |
| 10 | 01435-01225 | BOLT | 1601- | |
| 11 | 566-54-41532 | GUARD | 1618- | |
| 11 | 567-54-72730 | GUARD | 1601-1617 | |
| 12 | 566-54-41542 | PLATE | 1601- | |
| 13 | 01435-01230 | BOLT | 1601- | |
| 14 | 01580-11210 | NUT | 1601- |
