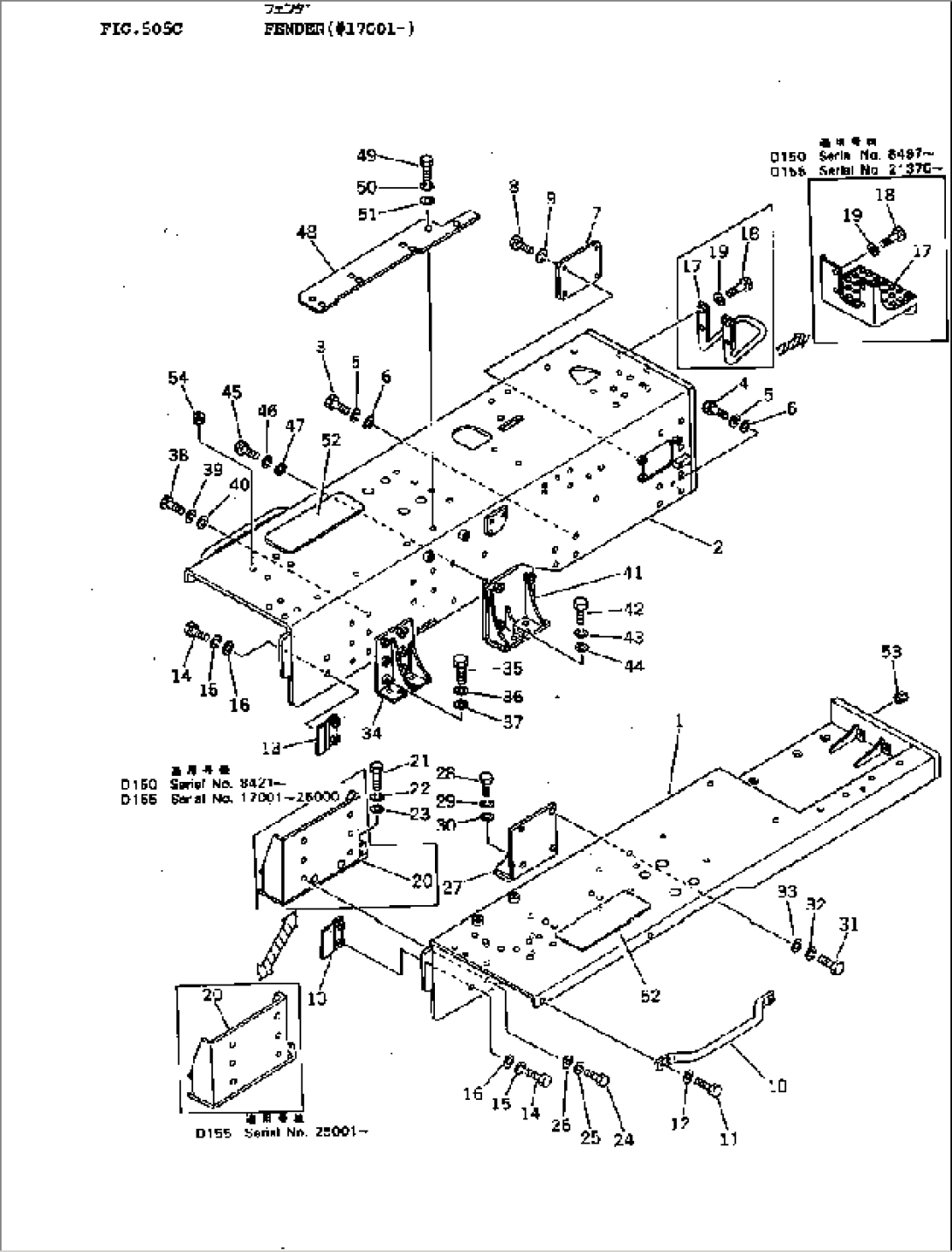

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 175-54-33543 | FENDER | 25001- | |
| \0\175-54-33542 | FENDER | 17001-25000 | ||
| 2 | 175-54-33553 | FENDER | 25001- | |
| \0\175-54-33552 | FENDER | 17001-25000 | ||
| 3 | 01010-62450 | BOLT | 25001- | |
| \0\01010-62455 | BOLT | 17001-25000 | ||
| 4 | 01010-62465 | BOLT | 25001- | |
| \0\01010-62470 | BOLT | 17001-25000 | ||
| 5 | 01602-02472 | WASHER,SPRING | 17001-25000 | |
| 6 | 01643-32460 | WASHER | 17001- | |
| 7 | 175-54-22420 | COVER | 5508- | |
| 8 | 01010-31235 | BOLT | 5508- | |
| 9 | 01602-01236 | WASHER | 5508- | |
| 10 | 175-54-22840 | HANDLE | 10263- | |
| 11 | 01010-31445 | BOLT | 10263- | |
| 12 | 01643-31445 | WASHER | 25001- | |
| \0\01602-01442 | WASHER,SPRING | 10263-25000 | ||
| 13 | 175-54-21390 | PLATE | 5508- | |
| 14 | 01010-31235 | BOLT | 17001- | |
| 15 | 01602-01236 | WASHER,SPRING | 5508-25000 | |
| 16 | 01643-31232 | WASHER | 5508- | |
| 17 | 195-54-23991 | STEP | 21376- | |
| 175-54-22562 | HANDLE | 10263-21575 | ||
| 18 | 01010-31850 | BOLT | 17001- | |
| 19 | 01643-31845 | WASHER | 25001- | |
| \0\01602-01854 | WASHER,SPRING | 15001-25000 | ||
| 20 | 175-54-26255 | BRACKET | 25001- | |
| 175-54-26254 | BRACKET | 17001-25000 | ||
| 21 | 01010-31655 | BOLT | 19001- | |
| 01010-31660 | BOLT | 17001-19000 | ||
| 22 | 01602-01648 | WASHER,SPRING | 15001-19000 | |
| 23 | 01643-31645 | WASHER | 15001- | |
| 24 | 01010-31645 | BOLT | 19001- | |
| 01010-31650 | BOLT | 6843-19000 | ||
| 25 | 01602-01648 | WASHER | 5508-19000 | |
| 26 | 01643-31645 | WASHER | 5508- | |
| 27 | 175-54-26263 | BRACKET | 17001- | |
| 28 | 01010-31655 | BOLT | 19001- | |
| 01010-31660 | BOLT | 17001-19000 | ||
| 29 | 01602-01648 | WASHER,SPRING | 15001-19000 | |
| 30 | 01643-31645 | WASHER | 15001- | |
| 31 | 01010-31645 | BOLT | 19001- | |
| 01010-31650 | BOLT | 17001-19000 | ||
| 32 | 01602-01648 | WASHER,SPRING | 17001-19000 | |
| 33 | 01643-31645 | WASHER | 17001- | |
| 34 | 175-54-26272 | BRACKET | 17001- | |
| 35 | 01010-31655 | BOLT | 19001- | |
| 01010-31660 | BOLT | 17001-19000 | ||
| 36 | 01602-01648 | WASHER | 17001-19000 | |
| 37 | 01643-31645 | WASHER | 17001- | |
| 38 | 01010-31645 | BOLT | 19001- | |
| 01010-31650 | BOLT | 17001-19000 | ||
| 39 | 01602-01648 | WASHER | 17001-19000 | |
| 40 | 01643-31645 | WASHER | 17001- | |
| 41 | 175-54-34110 | BRACKET | 17001- | |
| 42 | 01010-31655 | BOLT | 19001- | |
| 01010-31660 | BOLT | 17001-19000 | ||
| 43 | 01602-01648 | WASHER,SPRING | 17001-19000 | |
| 44 | 01643-31645 | WASHER | 17001- | |
| 45 | 01010-31645 | BOLT | 19001- | |
| 01010-31650 | BOLT | 17001-19000 | ||
| 46 | 01602-01648 | WASHER | 17001-19000 | |
| 47 | 01643-31645 | WASHER | 17001- | |
| 48 | 175-54-33252 | PLATE | 17001- | |
| 49 | 01010-31450 | BOLT | 17001- | |
| 50 | 01602-01442 | WASHER,SPRING | 17001-25000 | |
| 51 | 01643-31445 | WASHER | 17001- | |
| 52 | 175-54-22861 | SEAT | 15001-25000 | |
| 53 | 07049-02430 | PLUG,(WITHOUT ROPS) | 19001- | |
| 54 | 07049-01418 | PLUG,(WITHOUT ROPS) | 15001- |
