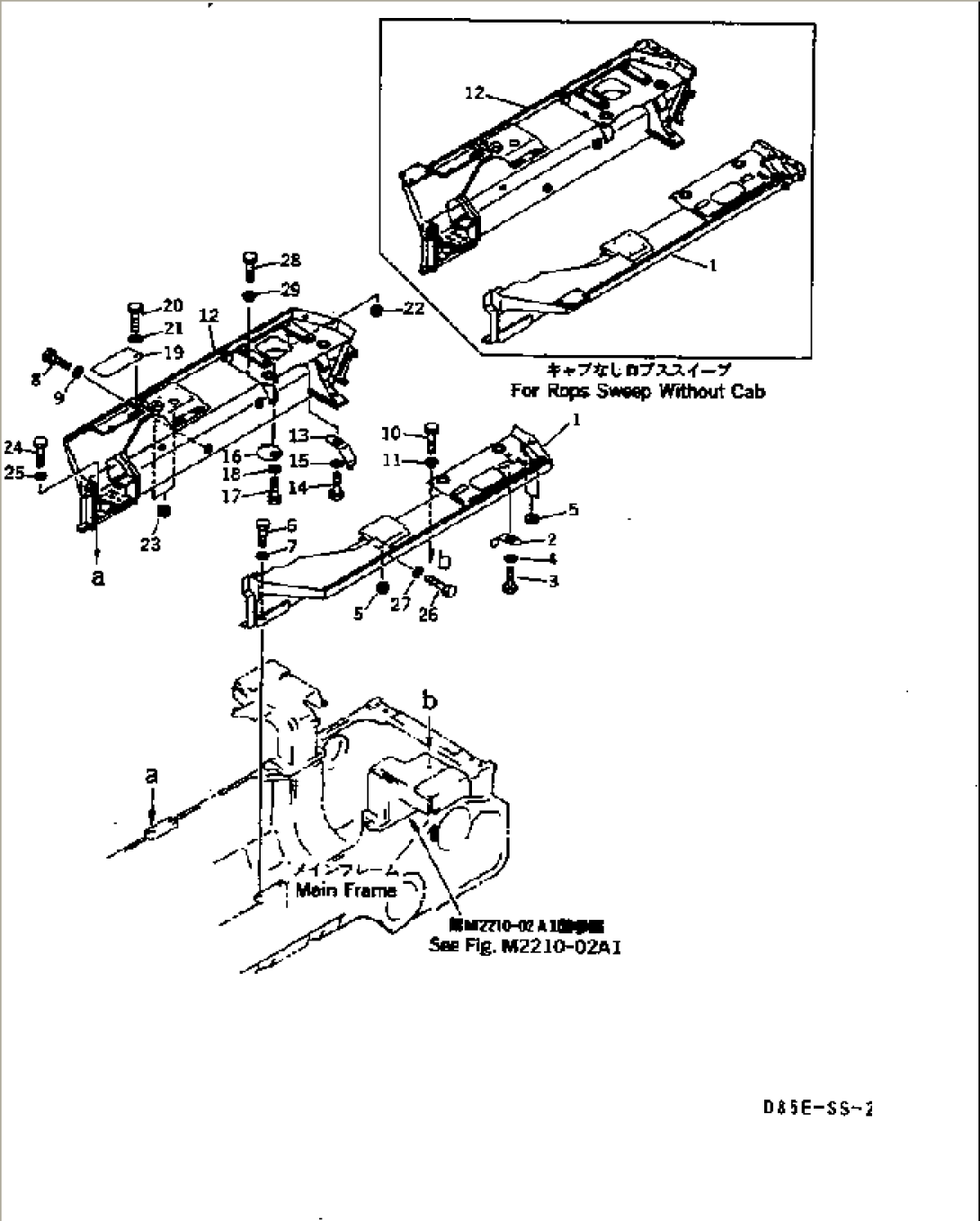

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 14W-54-13212 | FENDER,L.H. | 3010- | |
| 1 | 14W-54-13211 | FENDER,L.H. | 3001-3009 | |
| 2 | 14X-54-13151 | COVER | 3001- | |
| 3 | 01010-51220 | BOLT | 3001- | |
| 4 | 01643-31232 | WASHER | 3001- | |
| 5 | 09415-03614 | CAP | 3001- | |
| 6 | 01010-52460 | BOLT | 3001- | |
| 7 | 01643-32460 | WASHER | 3001- | |
| 8 | 01010-51630 | BOLT | 3001- | |
| 9 | 01643-31645 | WASHER | 3001- | |
| 10 | 01010-51235 | BOLT | 3001- | |
| 11 | 14W-54-13190 | BOSS | 3001- | |
| 12 | 14W-54-13223 | FENDER,R.H. | 3025- | |
| 12 | 14W-54-13222 | FENDER,R.H. | 3010-3024 | |
| 12 | 14W-54-13221 | FENDER,R.H. | 3001-3009 | |
| 13 | 14X-54-13151 | COVER | 3001- | |
| 14 | 01010-51220 | BOLT | 3001- | |
| 15 | 01643-31232 | WASHER | 3001- | |
| 16 | 14X-54-13160 | COVER | 3001- | |
| 17 | 01010-51225 | BOLT | 3001- | |
| 18 | 01643-31232 | WASHER | 3001- | |
| 19 | 14X-54-13132 | COVER | 3001- | |
| 20 | 01010-51225 | BOLT | 3001- | |
| 21 | 01643-31232 | WASHER | 3001- | |
| 22 | 09415-03614 | CAP | 3001- | |
| 23 | 09415-05016 | CAP | 3001- | |
| 24 | 01010-52460 | BOLT | 3001- | |
| 25 | 01643-32460 | WASHER | 3001- | |
| 26 | 01010-51630 | BOLT | 3001- | |
| 27 | 01643-31645 | WASHER | 3001- | |
| 28 | 01010-51235 | BOLT | 3001- | |
| 29 | 14W-54-13190 | BOSS | 3001- |
