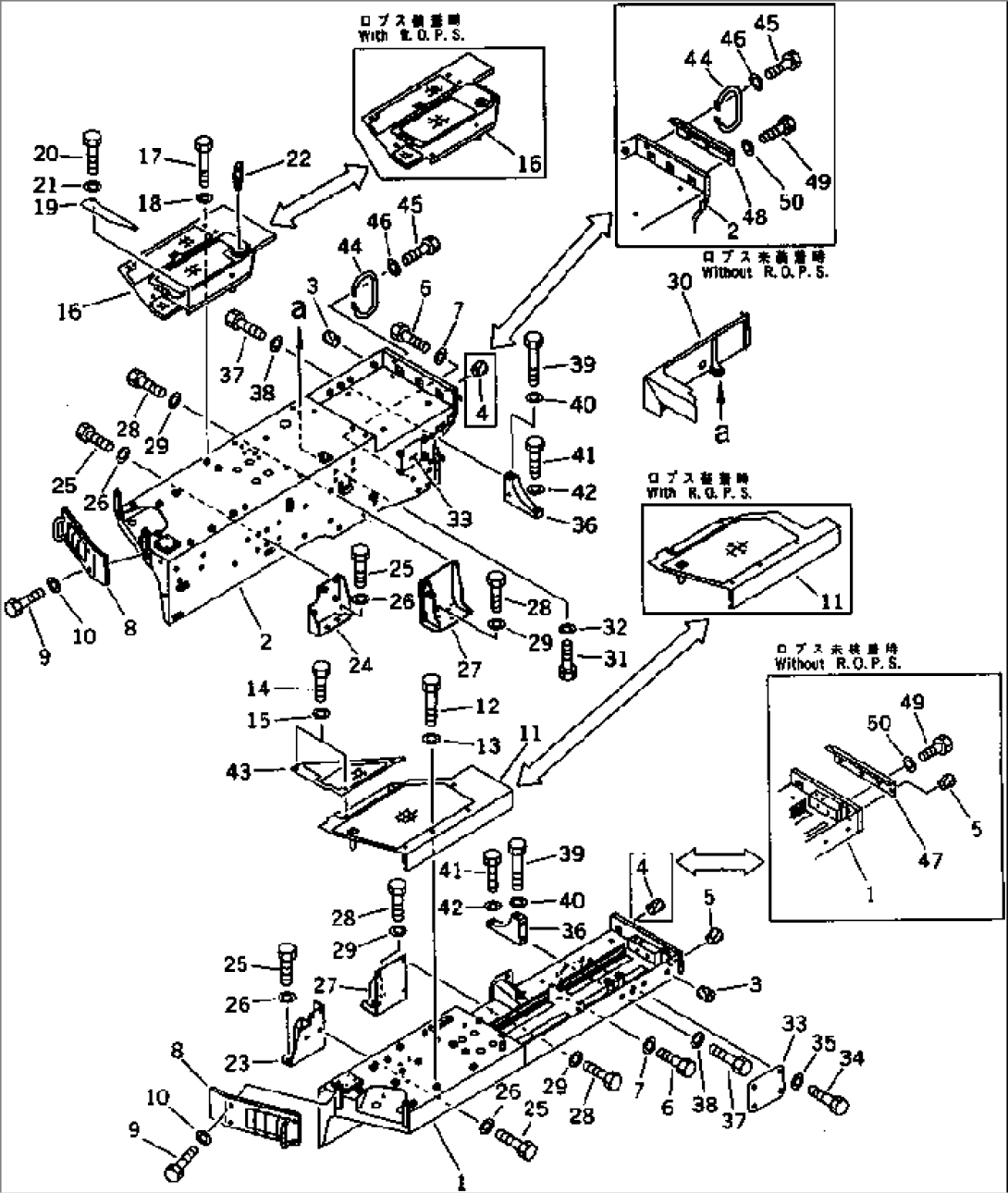

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 154-54-41732 | FENDER,L.H. | 3382- | |
| 154-54-41731 | FENDER,L.H. | 3223-3381 | ||
| 2 | 154-54-45212 | FENDER,R.H. | 3382- | |
| 154-54-45211 | FENDER,R.H. | 3223-3381 | ||
| 3 | 07049-01620 | PLUG | 3001- | |
| 4 | 07049-02430 | PLUG,(WITH ROPS) | 3001- | |
| 5 | 07049-01822 | PLUG | 3001- | |
| 6 | 01010-52050 | BOLT | 3001- | |
| 7 | 01643-32060 | WASHER | 3001- | |
| 8 | 154-54-41954 | COVER | 3229- | |
| 154-54-41953 | COVER | 3001-3228 | ||
| 9 | 195-54-43210 | BOLT | 3001- | |
| 10 | 198-54-42280 | WASHER | 3001- | |
| 11 | 154-54-42251 | COVER,L.H. (WITHOUT ROPS) | 3223- | |
| 154-54-42271 | COVER,L.H. (WITH ROPS) | 3223- | ||
| 12 | 01011-51210 | BOLT | 3001- | |
| 13 | 01643-31232 | WASHER | 3001- | |
| 14 | 01010-51225 | BOLT | 3001- | |
| 15 | 01643-31232 | WASHER | 3001- | |
| 16 | 154-54-41922 | COVER,R.H. (WITHOUT ROPS) | 3223- | |
| 154-54-42281 | COVER,R.H. (WITH ROPS) | 3223- | ||
| 17 | 01011-51210 | BOLT | 3001- | |
| 18 | 01643-31232 | WASHER | 3001- | |
| 19 | 154-54-41942 | PLATE | 3001- | |
| 20 | 01010-51225 | BOLT | 3001- | |
| 21 | 01643-31232 | WASHER | 3001- | |
| 22 | 09459-00000 | LOCK | 3223- | |
| 23 | 154-54-41860 | BRACKET,L.H. | 3001- | |
| 24 | 154-54-41850 | BRACKET,R.H. | 3001- | |
| 25 | 01010-51640 | BOLT | 3001- | |
| 26 | 01643-31645 | WASHER | 3001- | |
| 27 | 154-54-42210 | BRACKET | 3001- | |
| 28 | 01010-51640 | BOLT | 3001- | |
| 29 | 01643-31645 | WASHER | 3001- | |
| 30 | 154-54-41931 | COVER | 3001- | |
| 31 | 01010-51230 | BOLT | 3001- | |
| 32 | 01643-31232 | WASHER | 3001- | |
| 33 | 175-54-22420 | COVER | 3001- | |
| 34 | 01010-51230 | BOLT | 3001- | |
| 35 | 01643-31232 | WASHER | 3001- | |
| 36 | 154-54-11970 | BRACKET | 3001- | |
| 37 | 01010-51635 | BOLT | 3001- | |
| 38 | 01643-31645 | WASHER | 3001- | |
| 39 | 01011-51690 | BOLT | 3001- | |
| 40 | 01643-31645 | WASHER | 3001- | |
| 41 | 01010-51655 | BOLT | 3001- | |
| 42 | 01643-31645 | WASHER | 3001- | |
| 43 | 154-54-42260 | COVER | 3001- | |
| 44 | 154-54-22990 | HANDLE | 3001- | |
| 45 | 01010-51850 | BOLT | 3001- | |
| 46 | 01643-31845 | WASHER | 3001- | |
| 47 | 154-54-46950 | COVER,L.H. (WITHOUT ROPS) | 3092- | |
| 48 | 154-54-46960 | COVER,R.H. (WITHOUT ROPS) | 3092- | |
| 49 | 01010-82755 | BOLT,(WITHOUT ROPS) | 3427- | |
| 01010-52450 | BOLT,(WITHOUT ROPS) | 3092-3426 | ||
| 50 | 01643-32780 | WASHER,(WITHOUT ROPS) | 3427- | |
| 01643-32460 | WASHER,(WITHOUT ROPS) | 3092-3426 |
