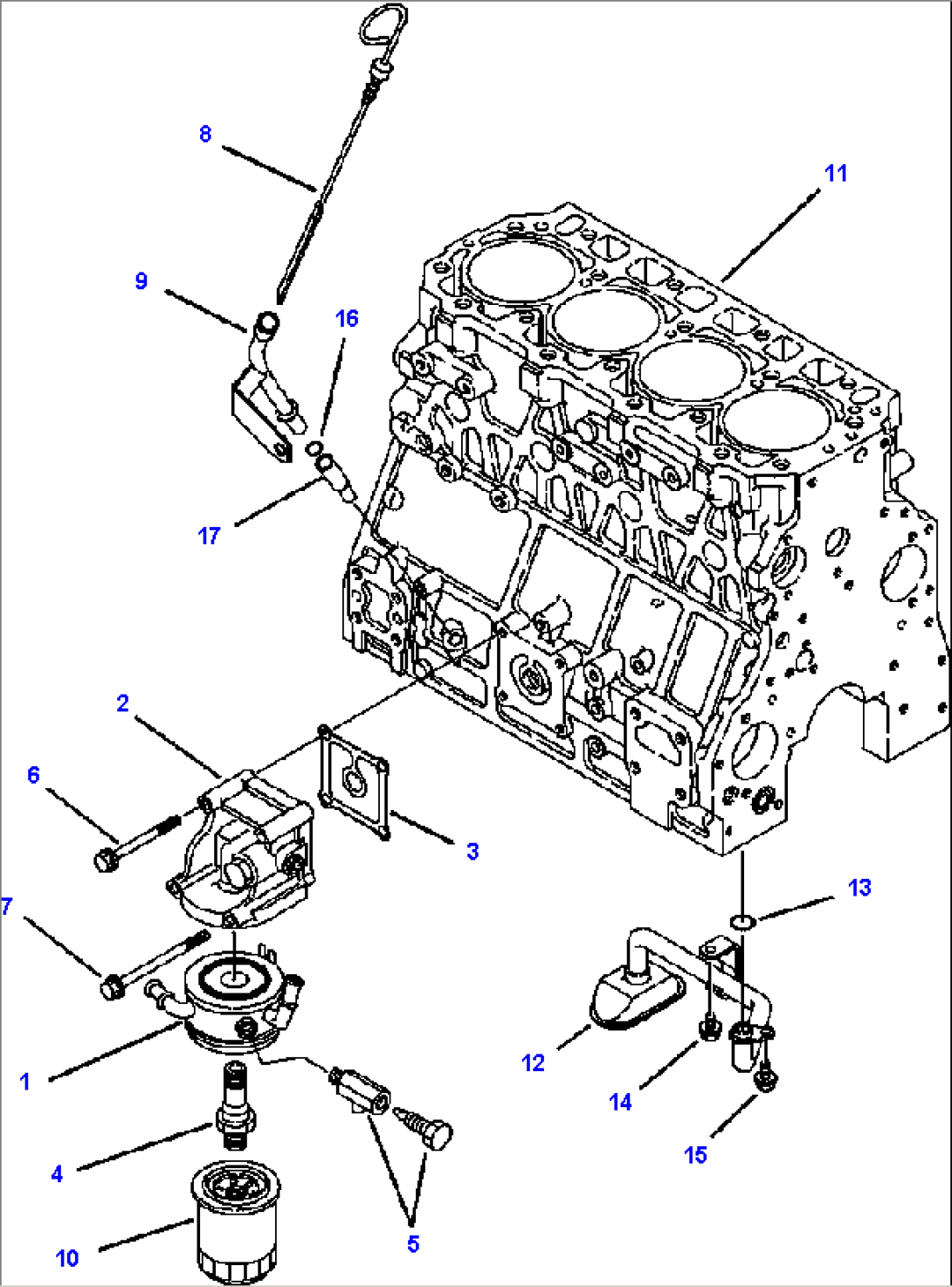

| Item | Part No. | Part Name | Qty | Serial No. |
| ENGINE, TIER II (SEE FIG. A0100-01A1) | A90009-- | |||
| 1 | YM12391033011 | COOLER, OIL | A90009-- | |
| 2 | HOUSING, COOLER (SEE FIG. A0120-01A2) | A90009-- | ||
| 3 | YM12390033060 | GASKET | A90009-- | |
| 4 | YM12391033100 | FITTING | A90009-- | |
| 5 | YM11962049290 | DRAIN VALVE | A90009-- | |
| 6 | YM26106080752 | BOLT | A90009-- | |
| 7 | YM26106081002 | BOLT | A90009-- | |
| 8 | YM12391034802 | DIPSTICK | A90009-- | |
| 9 | YM12394534810 | GUIDE, DIPSTICK TUBE | A90009-- | |
| 10 | YM11900535100 | FILTER, OIL | A90009-- | |
| 11 | ENGINE BLOCK (SEE FIG. A0110-01A1) | A90009-- | ||
| 12 | YM12391035000 | PIPE, OIL SUCTION | A90009-- | |
| 13 | YM24314000180 | O-RING | A90009-- | |
| 14 | YM26106080122 | BOLT | A90009-- | |
| 15 | YM26106080162 | BOLT | A90009-- | |
| 16 | YM24311240100 | O-RING | A90009-- | |
| 17 | YM11926034810 | GUIDE, DIPSTICK | A90009-- | |
