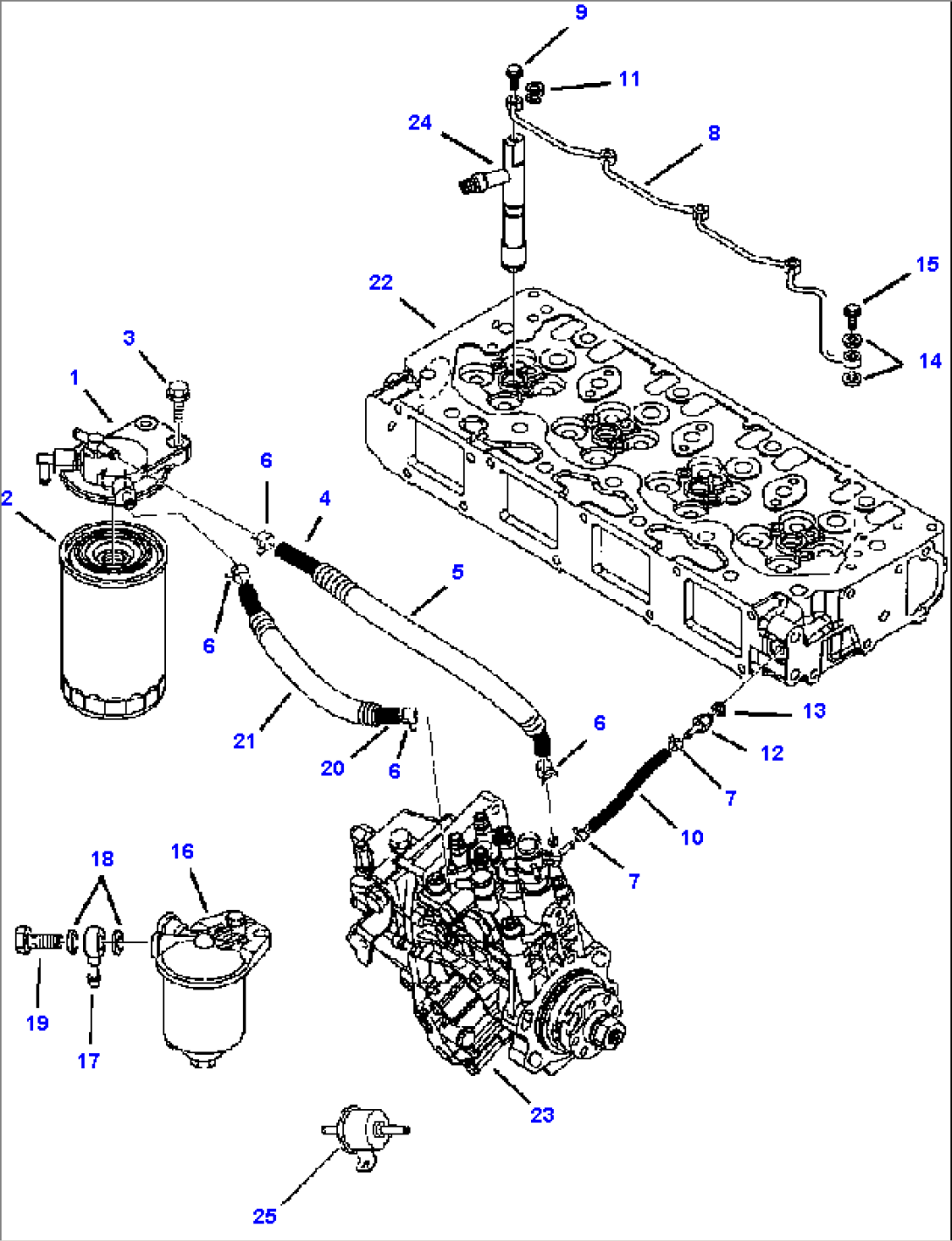

| Item | Part No. | Part Name | Qty | Serial No. |
| | ENGINE, TIER II (SEE FIG. A0100-01A1) | | A60049-- |
| 1 | YM129004-55610 | BRACKET, HEADER | | A60049-- |
| 2 | YM123907-55800 | FILTER, SPIN ON | | A60049-- |
| 3 | YM261060-80302 | BOLT | | A60049-- |
| YM119160-59010 | HOSE, FUEL | | A60049-- |
| 4 | YM105025-59530 | HOSE | | A60049-- |
| 5 | YM129950-59221 | PROTECTOR | | A60049-- |
| 6 | YM230000-13000 | CLAMP, HOSE | | A60049-- |
| 7 | YM124066-59100 | CLAMP, HOSE | | A60049-- |
| 8 | YM123907-59140 | TUBE, RETURN | | A60049-- |
| 9 | YM123907-59540 | CONNECTOR | | A60049-- |
| 10 | YM119000-59550 | HOSE, RETURN | | A60049-- |
| 11 | YM123907-59550 | GASKET | | A60049-- |
| 12 | YM123907-59560 | FITTING, HOSE | | A60049-- |
| 13 | YM221900-80002 | SEAL, WASHER | | A60049-- |
| 14 | YM234140-80000 | GASKET | | A60049-- |
| 15 | YM238570-30000 | CONNECTOR | | A60049-- |
| 16 | | SEPARATOR (SEE FIG. A0130-01A2) | | A60049-- |
| 17 | YM121750-59910 | FITTING, BANJO | | A60049-- |
| 18 | YM221901-40002 | GASKET | | A60049-- |
| 19 | YM238570-80000 | CONNECTOR | | A60049-- |
| YM129957-59040 | HOSE, FUEL | | A60049-- |
| 20 | YM129335-59090 | HOSE | | A60049-- |
| 21 | YM119560-59110 | PROTECTOR | | A60049-- |
| 22 | | CYLINDER HEAD (SEE FIG. A0103-01A1) | | A60049-- |
| 23 | | INJECTION PUMP (SEE FIG. A0133-01A3) | | A60049-- |
| 24 | | FUEL INJECTOR (SEE FIG. A0132-01A1) | | A60049-- |
| 25 | YM129612-52100 | PUMP, FEED | | A60049-- |
| | | | |
| | | | |
