| Item | Part No. | Part Name | Qty | Serial No. |
| ENGINE, TIER I (SEE FIG. A0100-01A0) | A60029-A60048- | |||

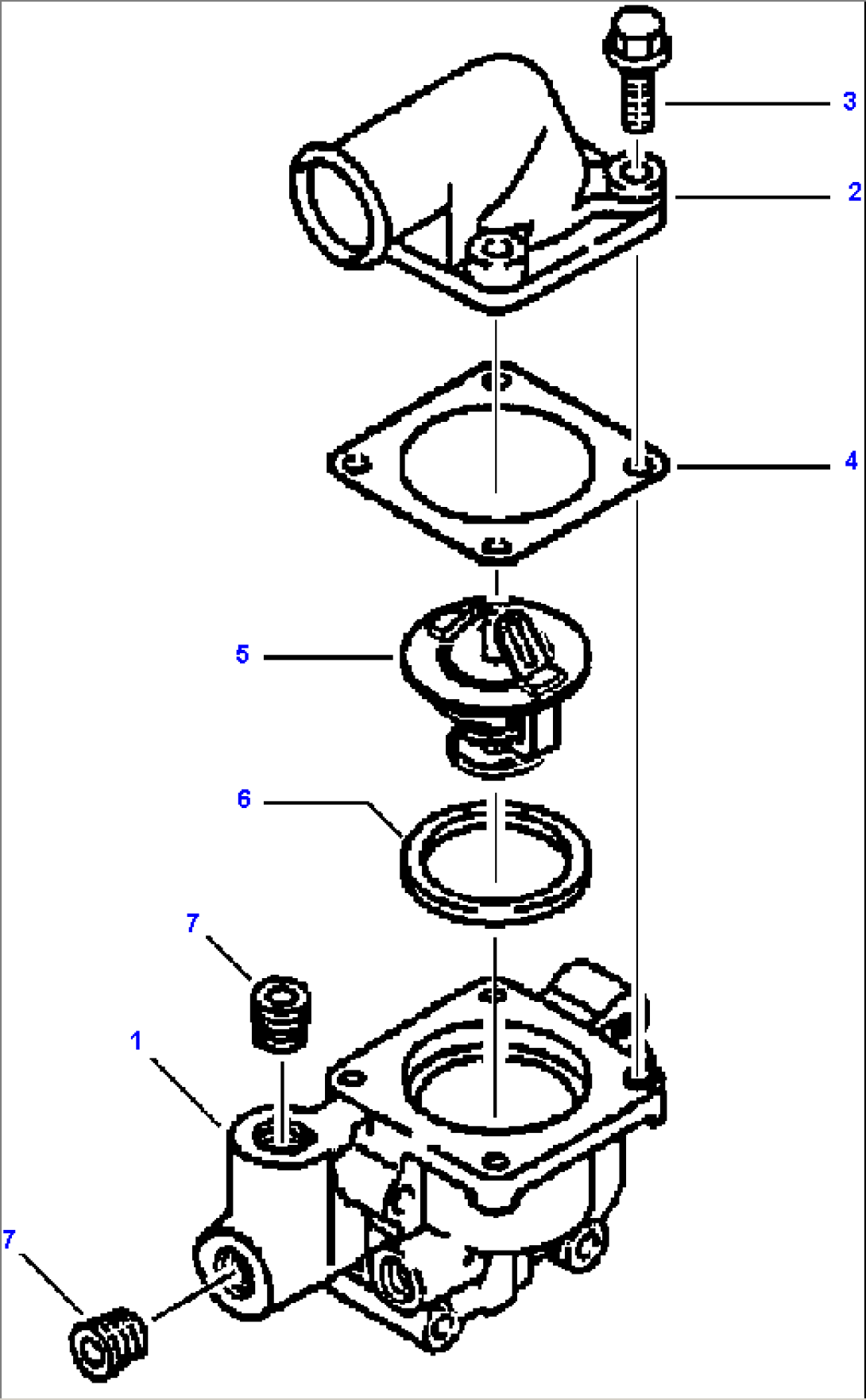

| YM123910-49800 | THERMOSTAT HOUSING | A60029-A60048- | ||
| 1 | (NSS) | HOUSING | A60029-A60048- | |
| 2 | YM123910-49530 | COVER, TOP | A60029-A60048- | |
| 3 | YM261060-80702 | BOLT | A60029-A60048- | |
| 4 | YM124610-49291 | GASKET, COVER | A60029-A60048- | |
| 5 | YM123911-48620 | THERMOSTAT | A60029-A60048- | |
| 6 | YM123500-49550 | GASKET, BOTTOM | A60029-A60048- | |
| 7 | YM238760-30000 | PLUG, PORT | A60029-A60048- | |
