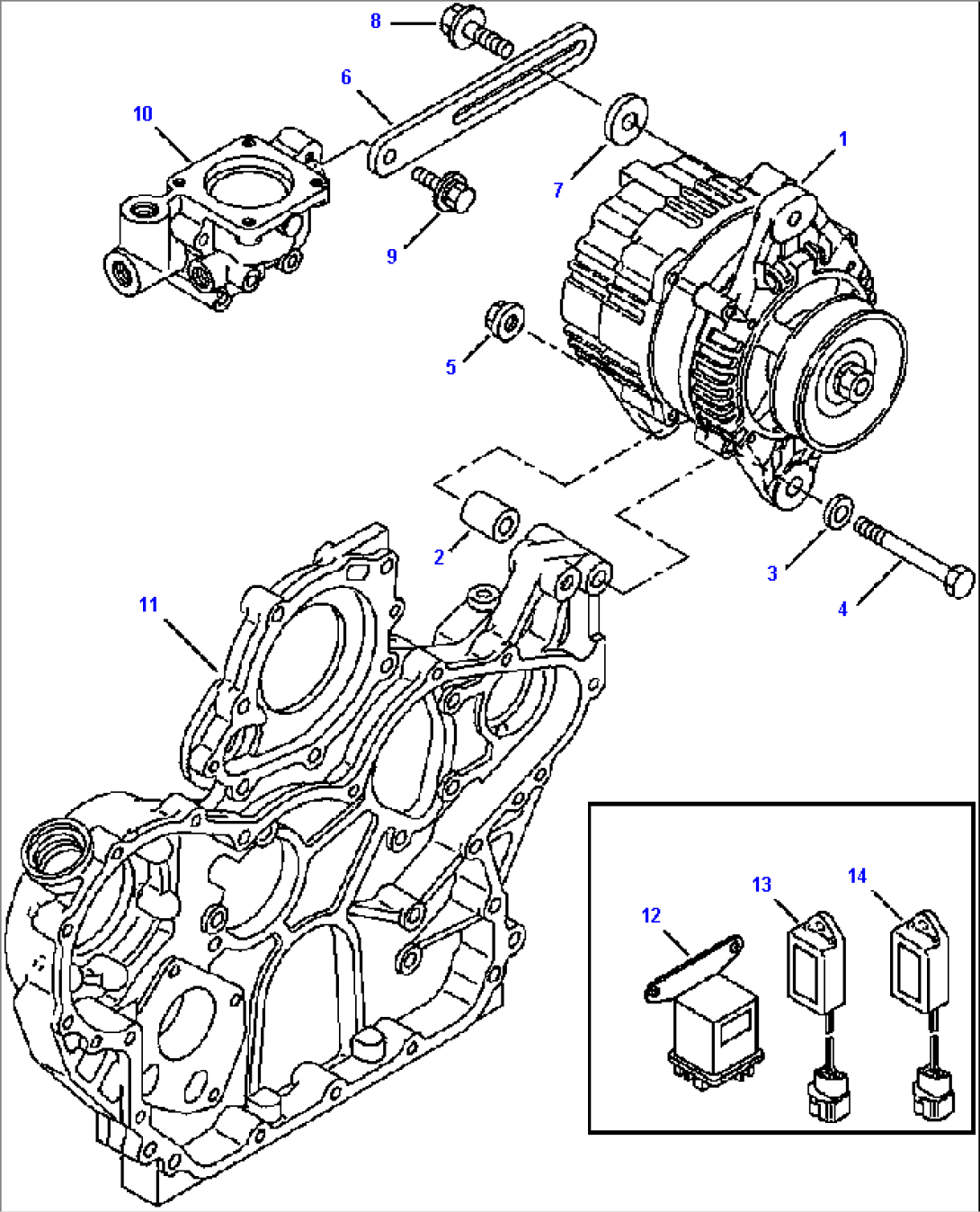

| Item | Part No. | Part Name | Qty | Serial No. |
| | ENGINE, TIER I (SEE FIG. A0100-01A0) | | A60029-A60048- |
| | ENGINE, TIER II (SEE FIG. A0100-01A1) | | A60049-- |
| 1 | | ALTERNATOR, 80A (SEE FIG. A0150-01A1) | | A60029-- |
| 2 | YM123900-77340 | SPACER | | A60029-- |
| 3 | YM221371-00000 | WASHER | | A60029-- |
| 4 | YM261161-01202 | BOLT | | A60029-- |
| 5 | YM263661-00002 | NUT | | A60029-- |
| 6 | YM123900-77330 | BRACKET | | A60029-- |
| 7 | YM121236-77340 | SPACER | | A60049-- |
| 8 | YM119810-77340 | BOLT | | A60029-A60048- |
| 8 | YM119005-77350 | BOLT | | A60049-- |
| 9 | YM260140-80252 | BOLT | | A60029-- |
| 10 | | THERMOSTAT (SEE FIG. A0141-01A0) | | A60029-A60048- |
| 10 | | THERMOSTAT (SEE FIG. A0141-01A1) | | A60049-- |
| 11 | | GEAR CASE (SEE FIG. A0111-01A0) | | A60029-A60048- |
| 11 | | GEAR CASE (SEE FIG. A0111-01A1) | | A60049-- |
| 12 | YM129100-77910 | RELAY | | A60029-A60048- |
| 13 | YM128300-77920 | TIMER | | A60029-A60048- |
| 14 | YM119632-77920 | TIMER | | A60029-A60048- |
| | | | |
| | | | |
