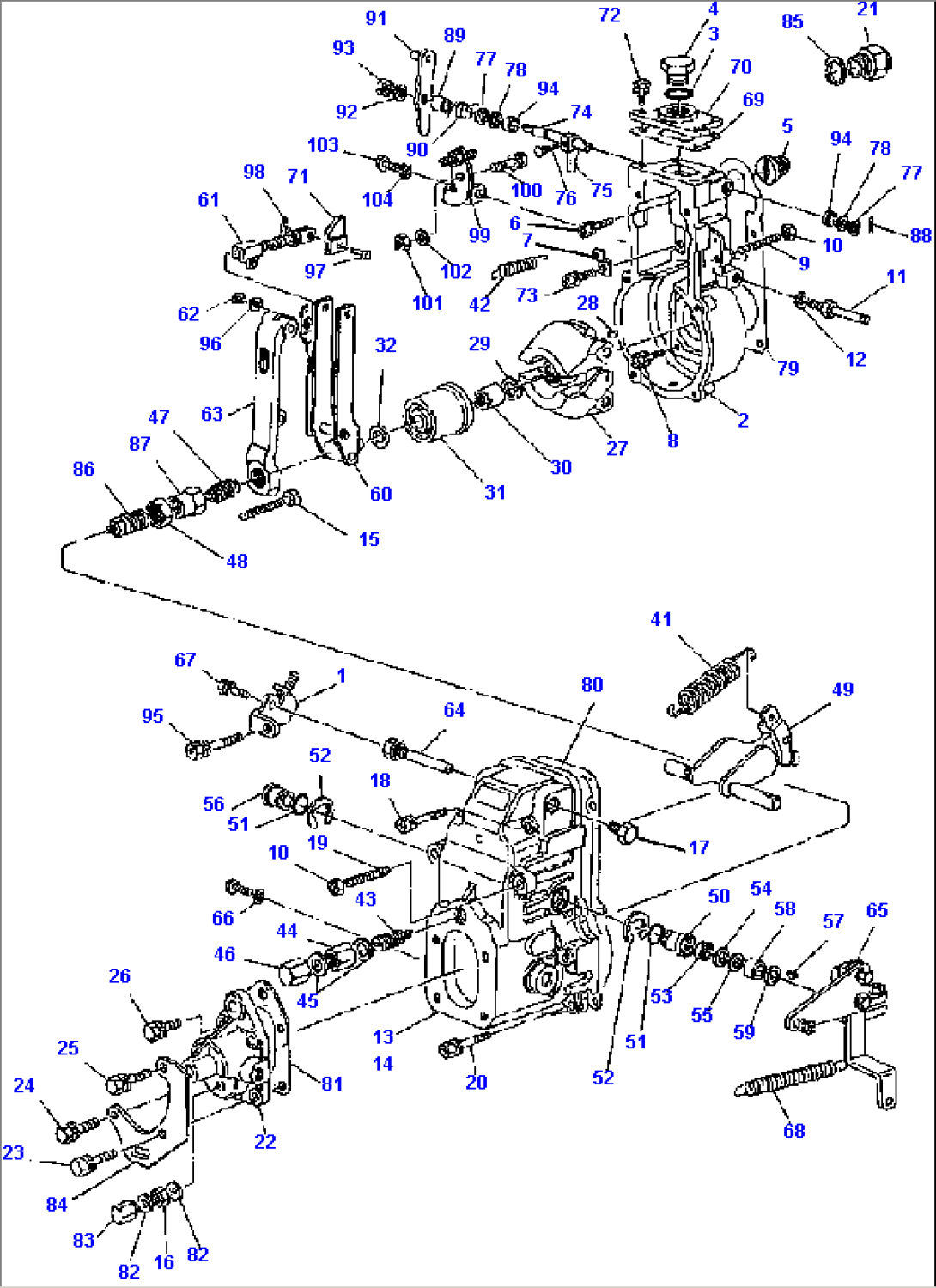

FIG. A0231-03A0 GOVERNOR

FIG. A0231-03A0 GOVERNOR
ItemPart No.Part NameQtySerial No.
TURBO ENGINE(SEE FIG. A0106-03A0)
1YMX1543763120BRACKET
2YMX1540045620FLANGED HOUSING
3YMX0296325070O-RING
4YMX1540072900PLUG
5YMX1540070200ADAPTOR
6YMX0200181840BOLT
7YMX1543501800PLATE
8YMX0290106810BOLT
9YMX1540101100SCREW
10YMX1540110100NUT
11YMX1540132320BOLT
12YMX0141108440SPRING WASHER
13YMX1545011120COVER
14YMX1545011100COVER
15YMX1540314700SCREW
16YMX1392080400NUT
17YMX1540361200PLUG
18YMX1390067100BOLT
19YMX1540100100SCREW
20YMX0201063840BOLT
21YMX1530204420LIMITER
22YMX1540644200COVER
23YMX0290206260BOLT
24YMX0290206260BOLT
25YMX0200062040BOLT
26YMX0200061640BOLT
27YMX1541010020FLYWHEEL ASSEMBLY
28YMX0258031610KEY
29YMX0293212020SPRING
30YMX0292312030NUT
31YMX1541232320SLEEVE
32YMX0293110010SHIM
YMX0293110180SHIM
YMX0293110190SHIM
YMX0293110210SHIM
YMX1394100000SHIM
YMX1394100100SHIM
YMX1394103000SHIM
YMX1394103100SHIM
YMX1394103200SHIM
41YMX1541502900SPRING
42YMX1541540701SPRING
43YMX1541580920SPRING
44YMX0292012140NUT
45YMX0265121540GASKET
46YMX1541591200CAP
47YMX1541771920SPRING
48YMX0292016080NUT
49YMX1542006920LEVER
50YMX1542043000BUSH
51YMX0296318020O RING
52YMX0160101640RING
53YMX1396110000SEAL, OIL
54YMX1394110000SHIM
55YMX0293111070SHIM
56YMX1542043100BUSHING
57YMX0258031310KEY
58YMX1542062800COLLAR
59YMX1542060200WASHER
60YMX1542185220LEVER
61YMX1542344020LINK
62YMX0160100540RING
63YMX1542395120LEVER
64YMX1542371100PIN
65YMX1543963120LEVER
66YMX0141103440SPRING
67YMX0200061240BOLT
68YMX1543142600SPRING
69YMX1543902000GASKET
70YMX1540637900COVER
71YMX1542323000CONNECTOR
72YMX0200061640BOLT
73YMX0201061640BOLT
74YMX1550043301SHAFT
75YMX1550032520LEVER
76YMX1550060700BOLT
77YMX1393080900WASHER
78YMX1393081000WASHER
79YMX1543901300GASKET
80YMX1543900300GASKET
81YMX1543905000GASKET
82YMX0265081140GASKET
83YMX1540352000CAP NUT
84YMX1543763000BRACKET
85YMX0265182240GASKET
86YMX1541884320SPRING
87YMX0292016010NUT
88YMX0255201210SPRING
89YMX1542065200COLLAR
90YMX1543280500SPRING
91YMX1543832420LEVER
92YMX0141108440SPRING
93YMX0130208040NUT
94YMX0296208050OIL SEAL
95YMX0201065040BOLT
96YMX0293105170SHIM
97YMX1542225800PIN
98YMX1554023800SNAP PIN
99YMX1543591320BRACKET
100YMX0201181640BOLT
101YMX1540111100NUT
102YMX0293008320SHIM
103YMX1540106100SCREW
104YMX0141108440SPRING
