| Item | Part No. | Part Name | Qty | Serial No. |

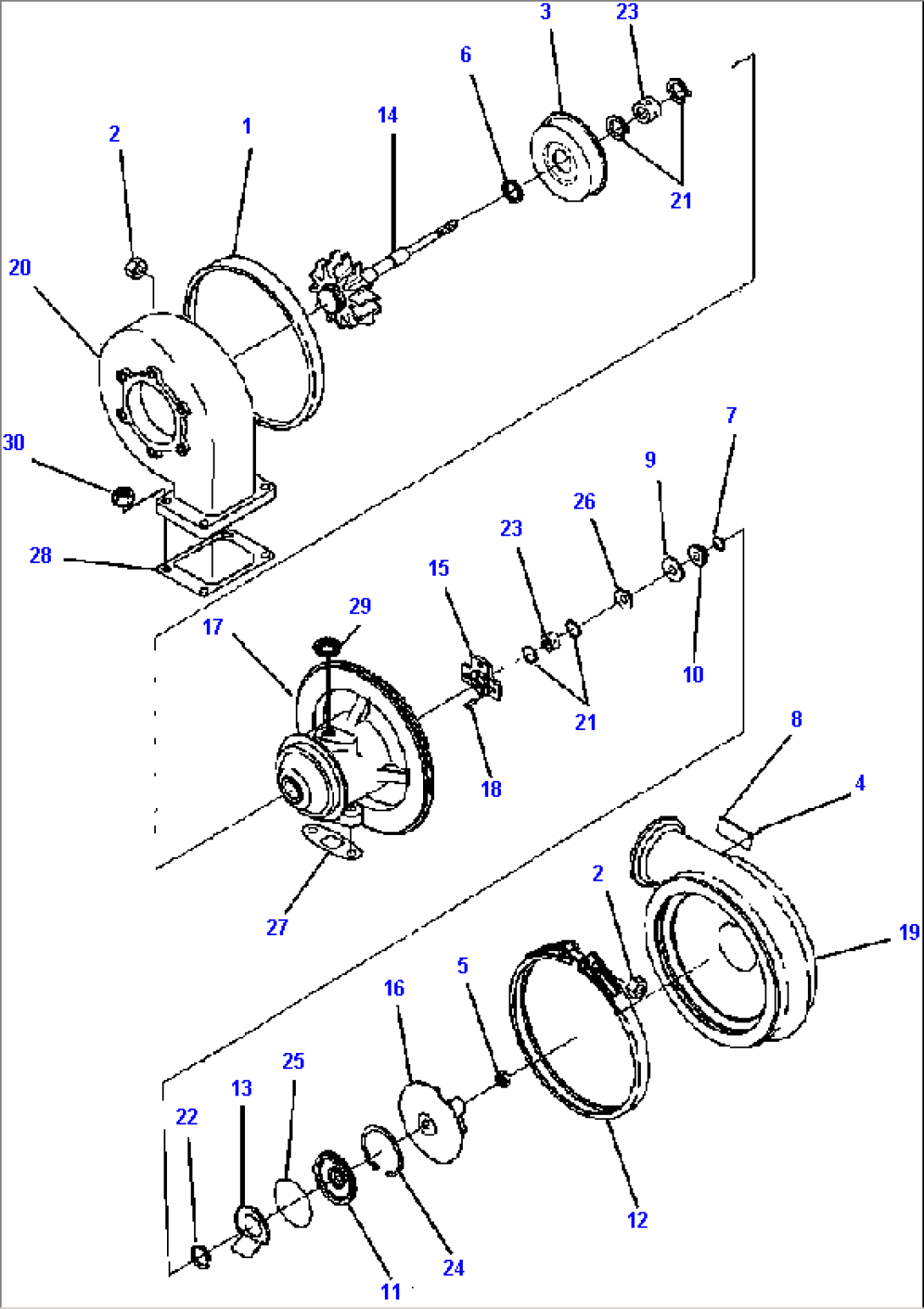

| 6216-84-8150 | KIT, TURBOCHARGER | |||
| (NSS) | TURBOCHARGER ASSEMBLY | |||
| 1 | 6216-84-8560 | CLAMP, V-BAND | ||
| 2 | 6736-81-8510 | NUT (1/4-28 UNF) | ||
| 3 | 6216-84-8220 | SHIELD, HEAT | ||
| 4 | 6736-81-8480 | SCREW, DRIVE | ||
| 5 | 6216-84-8230 | NUT, LOCK | ||
| 6 | 6216-84-8240 | SEAL, SPLIT RING | ||
| 7 | 6216-84-8250 | SEAL, SPLIT RING | ||
| 8 | (NSS) | DATAPLATE | ||
| 9 | 6216-84-8260 | COLLAR, THRUST | ||
| 10 | 6216-84-8270 | SLINGER, OIL | ||
| 11 | 6216-84-8280 | PLATE, OIL SEAL | ||
| 12 | 6216-84-8290 | CLAMP, V-BAND | ||
| 13 | 6216-84-8310 | BAFFLE, OIL | ||
| 14 | 6216-84-8320 | SHAFT AND WHEEL | ||
| 15 | 6216-84-8330 | BEARING, THRUST | ||
| 16 | 6216-84-8340 | IMPELLER, COMPRESSOR | ||
| 17 | (NSS) | HOUSING, TURBOCHARGER BEARING | ||
| 18 | 6216-84-8360 | PIN, ROLL | ||
| 19 | 6216-81-4830 | HOUSING, COMPRESSOR | ||
| 20 | (NSS) | HOUSING, TURBINE | ||
| 21 | 6216-84-8380 | RING, RETAINING | ||
| 22 | 6216-84-8390 | RING, RETAINING | ||
| 23 | 6216-84-8410 | BEARING, TURBOCHARGER | ||
| 24 | 6216-84-8420 | RING, RETAINING | ||
| 25 | 6216-84-8430 | SEAL, O-RING | ||
| 26 | 6216-84-8440 | SLEEVE, OIL CONTROL | ||
| 27 | GASKET, CONNECTION (SEE FIG. A1120-A7A5) | |||
| 28 | GASKET (SEE FIG. A1118-A9A2) | |||
| 29 | 6216-14-6840 | O-RING | ||
| 30 | 6114-11-5590 | NUT, MOUNTING |
