| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 1307 687 H1 | GASKET, INTAKE MANIFOLD COVER | ||
| 2 | 6735-61-2120 | BOLT - M8-1.25 X 45 | ||
| 3 | 6732-11-4160 | BOLT - M8-1.25 X 25 | ||
| 4 | 1307 690 H1 | CONNECTION, AIR INTAKE | ||
| 5 | 1307 688 H1 | PLUG, THREADED | ||
| 6 | 1307 689 H1 | WASHER, SEALING |
- Главная
- Каталог запчастей
- Колесные погрузчики
- Wa420 3l s/n a30001 up
- Engine
- Fig. a1204 a3a2 air intake manifold cover connection
Поиск по каталогу

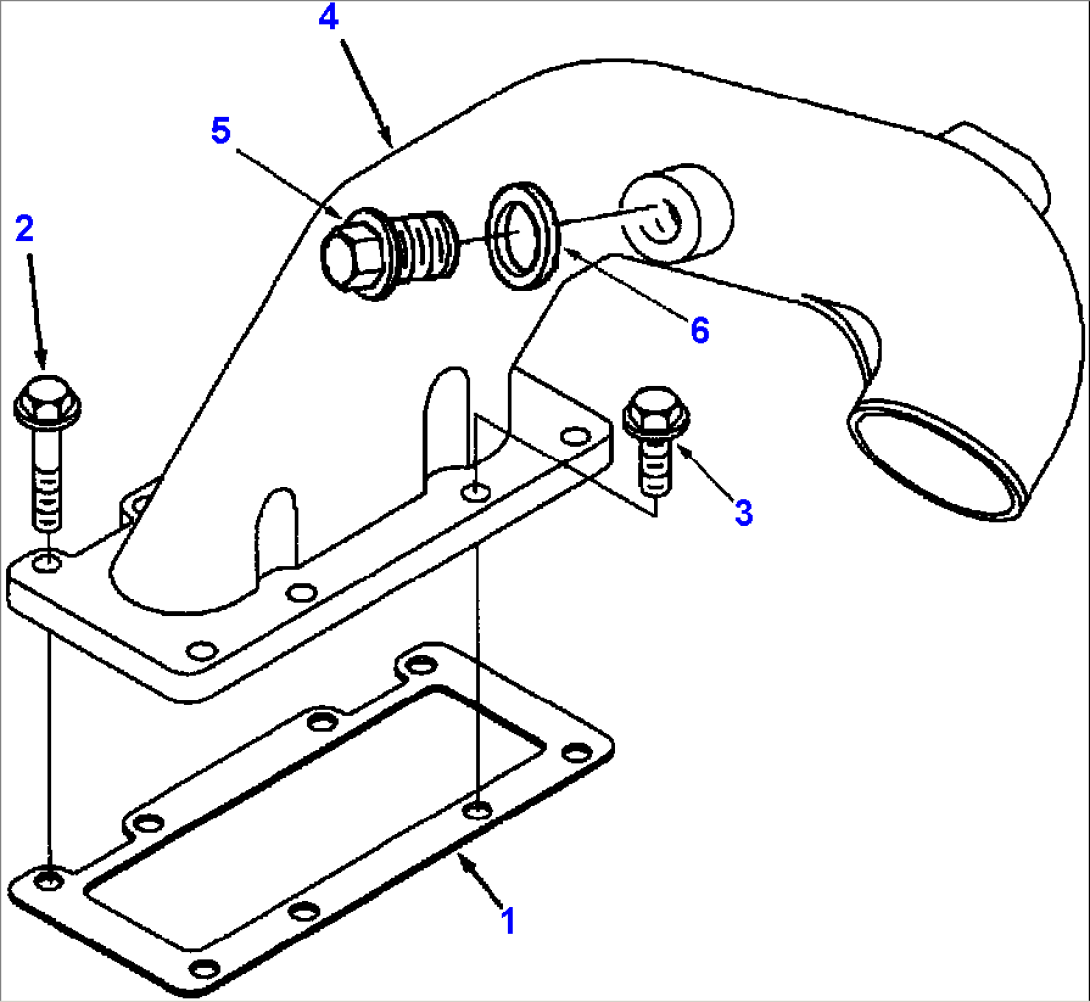

FIG. A1204-A3A2 AIR INTAKE MANIFOLD COVER CONNECTION
