| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 6216-11-631A | CONNECTION, AIR INTAKE | ||
| 2 | 01435-01040 | BOLT (M10-1.50x40) | ||
| 3 | 01436-01050 | BOLT (M10-1.50x150) | ||
| 4 | 6215-11-6210 | GASKET, CONNECTION | ||
| 5 | 6216-14-4810 | PLUG, PIPE (1/8 NPT) |
- Главная
- Каталог запчастей
- Самосвалы
- Hd785 5lc s/n a10271 a10274 (bfp42 03) (bepb048502)
- Engine
- Fig. a1206 a7a1 air intake connection
Поиск по каталогу

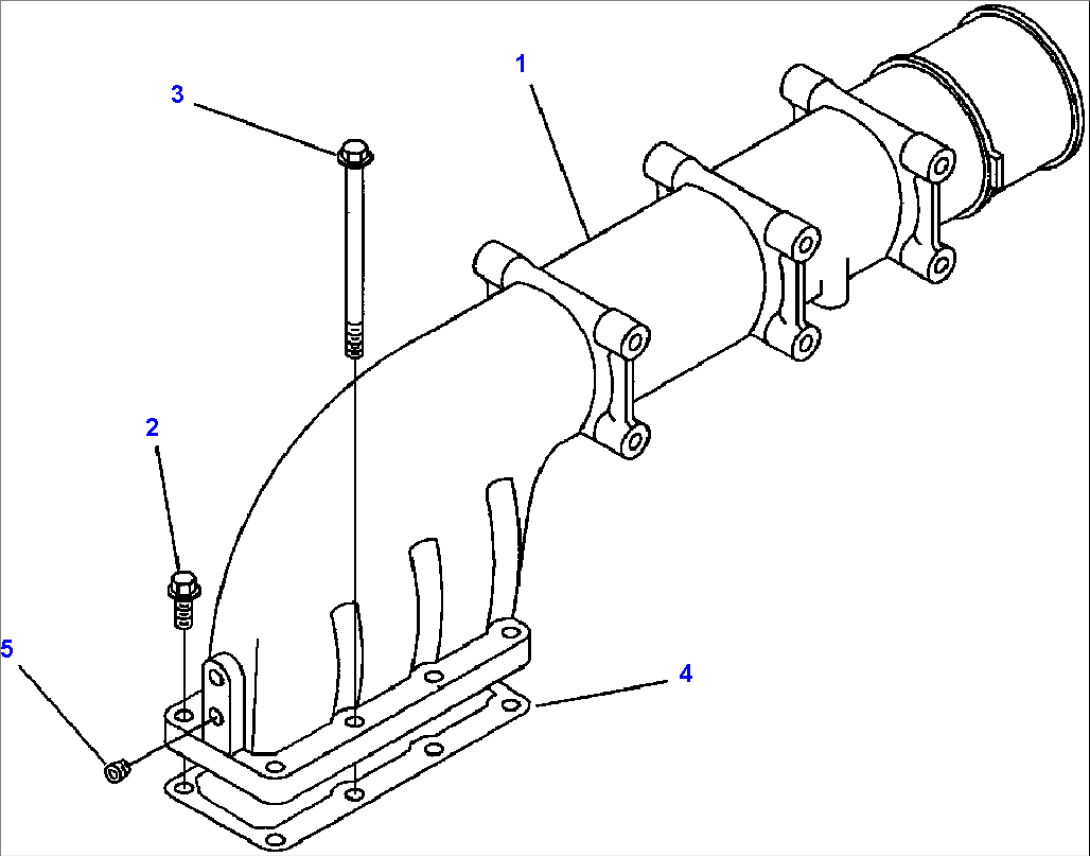

FIG. A1206-A7A1 AIR INTAKE CONNECTION
