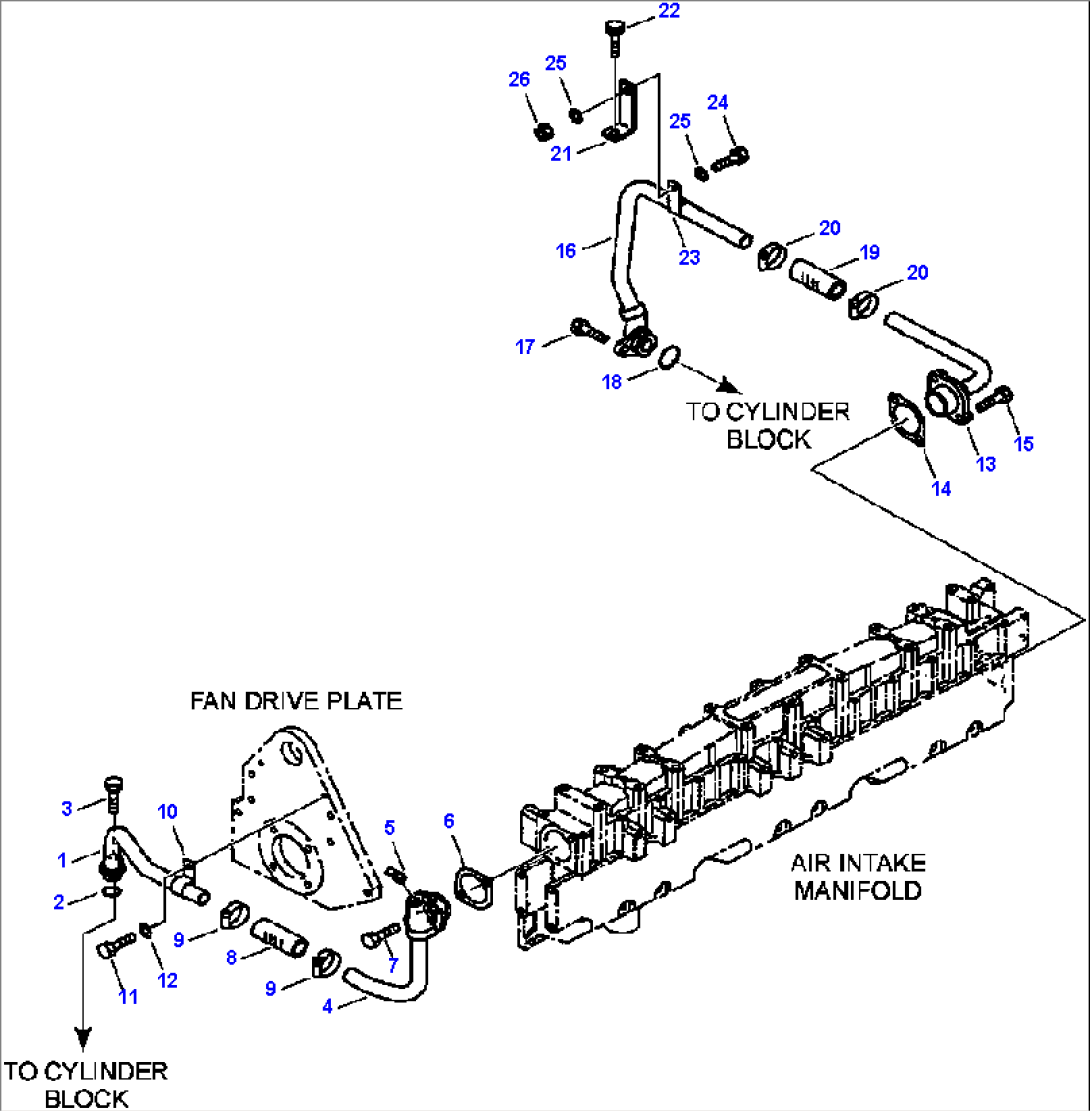

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 6152-62-6410 | TUBE | ||
| 2 | 07000-02021 | O-RING | ||
| 3 | 01010-81020 | BOLT | ||
| 4 | 6152-62-6420 | TUBE | ||
| 5 | 07062-00000 | VALVE | ||
| 6 | 6152-61-6721 | GASKET | ||
| 7 | 01010-81035 | BOLT | ||
| 8 | 07260-22008 | HOSE | ||
| 9 | 07281-00359 | CLAMP | ||
| 10 | 04434-52210 | CLIP | ||
| 11 | 01010-81016 | BOLT | ||
| 12 | 01640-21016 | WASHER | ||
| 13 | 6152-62-6520 | TUBE | ||
| 14 | 6152-61-6721 | GASKET | ||
| 15 | 01010-81035 | BOLT | ||
| 16 | 6152-62-6510 | TUBE | ||
| 17 | 01010-81025 | BOLT | ||
| 18 | 07000-A3030 | O-RING | ||
| 19 | 07260-22008 | HOSE | ||
| 20 | 07281-00359 | CLAMP | ||
| 21 | 6136-21-5630 | BRACKET | ||
| 22 | 01010-81025 | BOLT | ||
| 23 | 04434-52210 | CLIP | ||
| 24 | 01010-81016 | BOLT | ||
| 25 | 01640-21016 | WASHER | ||
| 26 | 01580-11008 | NUT | ||
| F1 - THESE ITEMS ARE ALSO INCLUDED IN CYLINDER HEAD GASKET KIT. (SEE FIG. A8116-B3A7) | ||||
