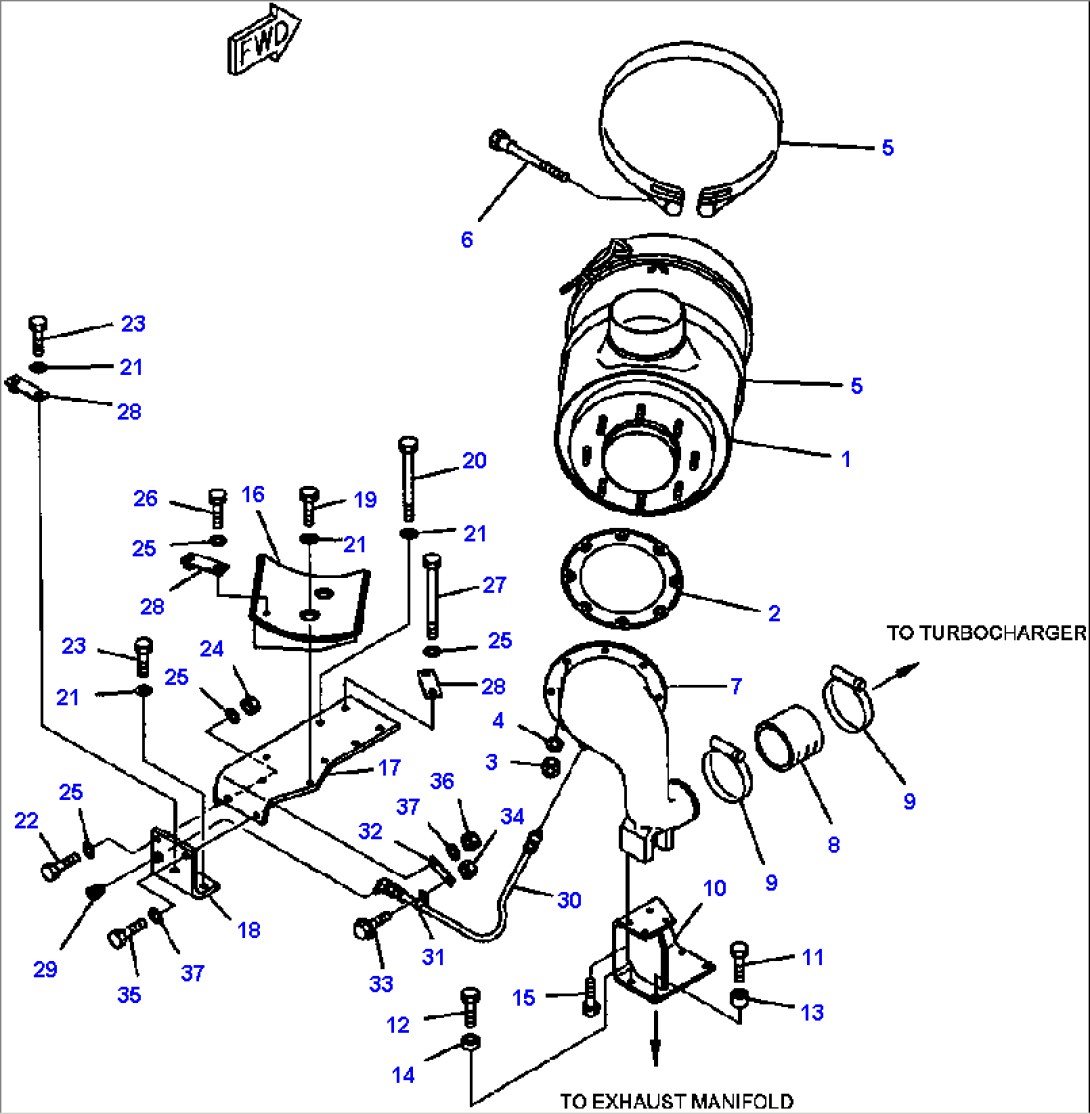

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | AIR CLEANER ASSEMBLY (SEE FIG. A1410-B3G1) | |||
| 2 | 6127-81-4823 | GASKET | ||
| 3 | 01580-11008 | NUT | ||
| 4 | 01640-21016 | WASHER | ||
| 5 | 6691-13-4610 | BAND ASSEMBLY | ||
| 6691-21-6550 | PIN | |||
| 6691-21-6560 | PIN, WITH THREAD | |||
| 6 | 6643-11-4641 | BOLT | ||
| 7 | 6151-11-4211 | CONNECTOR | ||
| 8 | 6151-11-4451 | HOSE | ||
| 9 | 07289-00105 | CLAMP | ||
| 10 | 6151-11-4690 | BRACKET | ||
| 11 | 01010-81040 | BOLT | ||
| 12 | 01010-81050 | BOLT | ||
| 13 | 6631-11-5630 | SPACER | ||
| 14 | 209-62-11810 | SPACER | ||
| 15 | 01010-81025 | BOLT | ||
| 16 | 6151-11-4681 | BRACKET | ||
| 17 | 6151-12-4710 | BRACKET | ||
| 18 | 6151-12-4780 | BRACKET | ||
| 19 | 01010-81025 | BOLT | ||
| 20 | 01011-81075 | BOLT | ||
| 21 | 01643-31032 | WASHER | ||
| 22 | 01010-81040 | BOLT | ||
| 23 | 01010-81035 | BOLT | ||
| 24 | 01580-11008 | NUT | ||
| 25 | 01643-31032 | WASHER | ||
| 26 | 01010-81030 | BOLT | ||
| 27 | 01011-81080 | BOLT | ||
| 28 | 154-Z11-5340 | BRACKET | ||
| 29 | 02720-20204 | PLUG | ||
| 30 | 08671-50070 | HOSE | ||
| 31 | 08036-21414 | CLIP | ||
| 32 | 6301-11-4630 | PLATE | ||
| 33 | 01435-21016 | BOLT | ||
| 34 | 01580-11008 | NUT | ||
| 35 | 01010-81045 | BOLT | ||
| 36 | 01580-11008 | NUT | ||
| 37 | 01643-31032 | WASHER | ||
| F1 THESE ITEMS ARE ALSO INCLUDED IN CYLINDER HEAD GASKET KIT. REFER TO FIG. A8122-A3A8. | ||||
