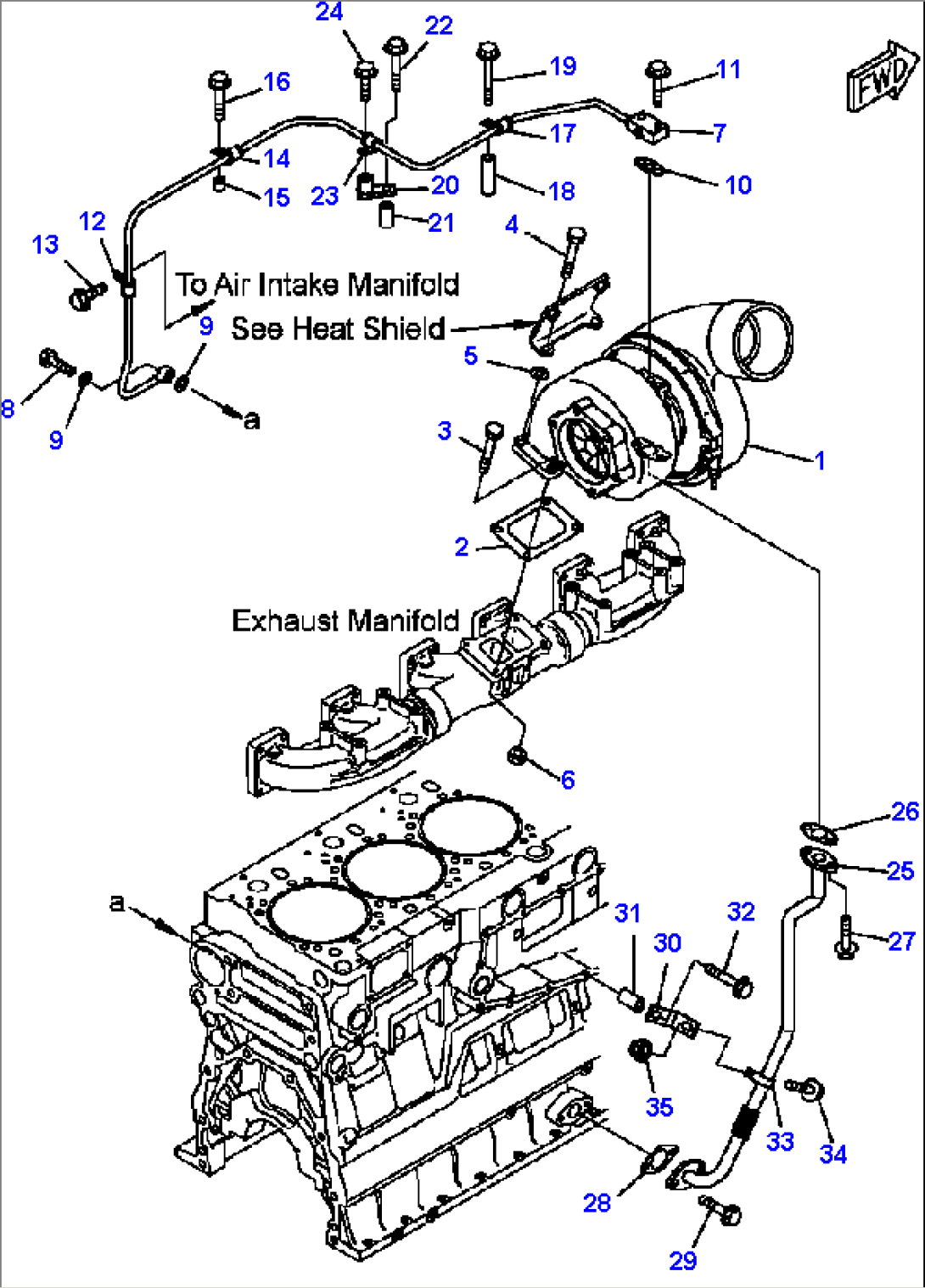

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | TURBOCHARGER (SEE FIG. A1530-B4G3) | |||
| 2 | 6218-11-5830 | GASKET(K1) | ||
| 3 | 6138-13-4510 | BOLT | ||
| 4 | 6217-11-5910 | BOLT | ||
| 5 | 01643-31032 | WASHER | ||
| 6 | 6114-11-5590 | NUT | ||
| 7 | 6218-51-8151 | TUBE, SUPPLY | ||
| 8 | 07206-31014 | BOLT, JOINT | ||
| 9 | 07005-01412 | GASKET(K1) | ||
| 10 | 6151-51-8161 | GASKET(K1) | ||
| 11 | 01435-01035 | BOLT | ||
| 12 | 6215-71-4940 | CLAMP | ||
| 13 | 01435-01025 | BOLT | ||
| 14 | 6215-71-4940 | CLAMP | ||
| 15 | 6215-71-4480 | SPACER | ||
| 16 | 01435-01035 | BOLT | ||
| 17 | 6215-71-4940 | CLAMP | ||
| 18 | 6136-11-5120 | SPACER | ||
| 19 | 01435-01085 | BOLT | ||
| 20 | 6218-51-8210 | PLATE | ||
| 21 | 203-54-11170 | SPACER | ||
| 22 | 01435-01055 | BOLT | ||
| 23 | 6215-71-4940 | CLAMP | ||
| 24 | 01435-01014 | BOLT | ||
| 25 | 6218-51-8110 | TUBE | ||
| 26 | 6151-51-8151 | GASKET(K1) | ||
| 27 | 01435-01025 | BOLT | ||
| 28 | 6127-51-6822 | GASKET(K1) | ||
| 29 | 01435-01020 | BOLT | ||
| 30 | 6204-11-5690 | BRACKET | ||
| 31 | 6142-22-4640 | SPACER | ||
| 32 | 01435-01075 | BOLT | ||
| 33 | 04434-51910 | CLIP | ||
| 34 | 01435-01016 | BOLT | ||
| 35 | 01584-01008 | NUT |
