| Item | Part No. | Part Name | Qty | Serial No. |
| 6152-82-8610 | TURBOCHARGER | |||
| 1 | SP314262 | HOUSING, COMPRESSOR | ||
| 2 | SP194649 | V-CLAMP | ||
| 3 | SP510927 | NUT, LOCK | ||
| 4 | SP194650 | V-CLAMP | ||
| 5 | SP510927 | NUT, LOCK | ||
| 6 | SP314637 | HOUSING, TURBINE | ||
| 7 | SP314636 | CENTER HOUSING ASSEMBLY |
- Главная
- Каталог запчастей
- Бульдозеры
- D87e 2 s/n p090001 up
- Engine
- Fig. a1530 b3d7 turbocharger inner parts
Поиск по каталогу

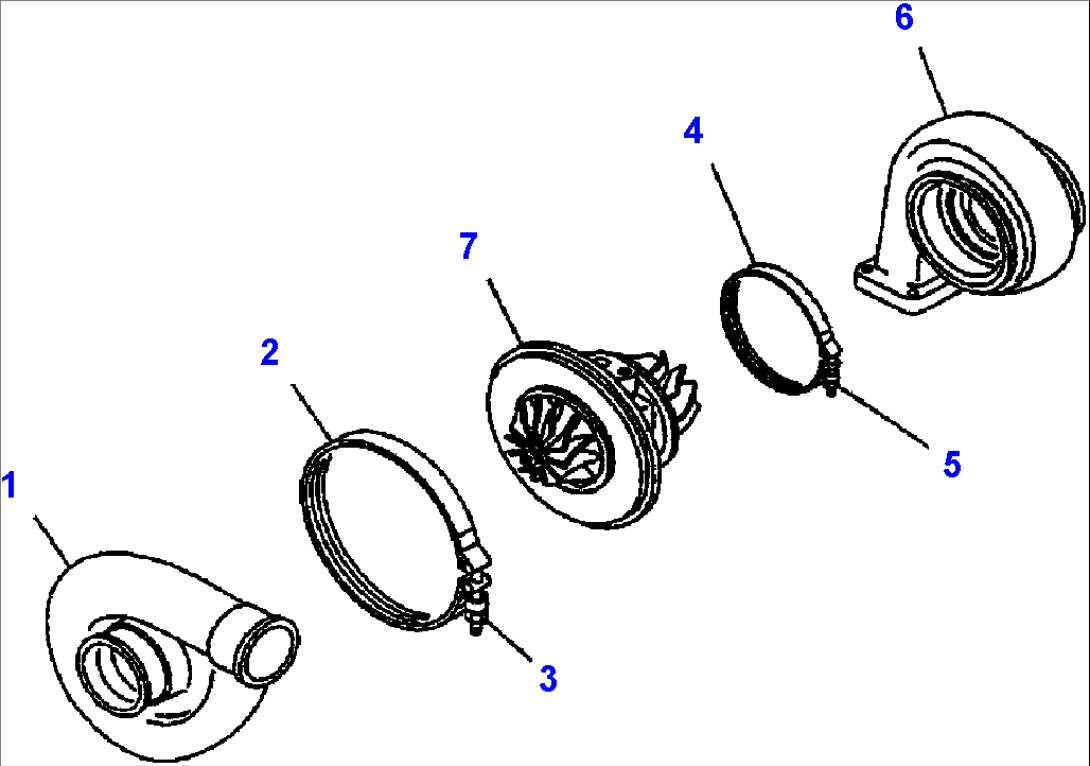

FIG. A1530-B3D7 TURBOCHARGER - INNER PARTS
