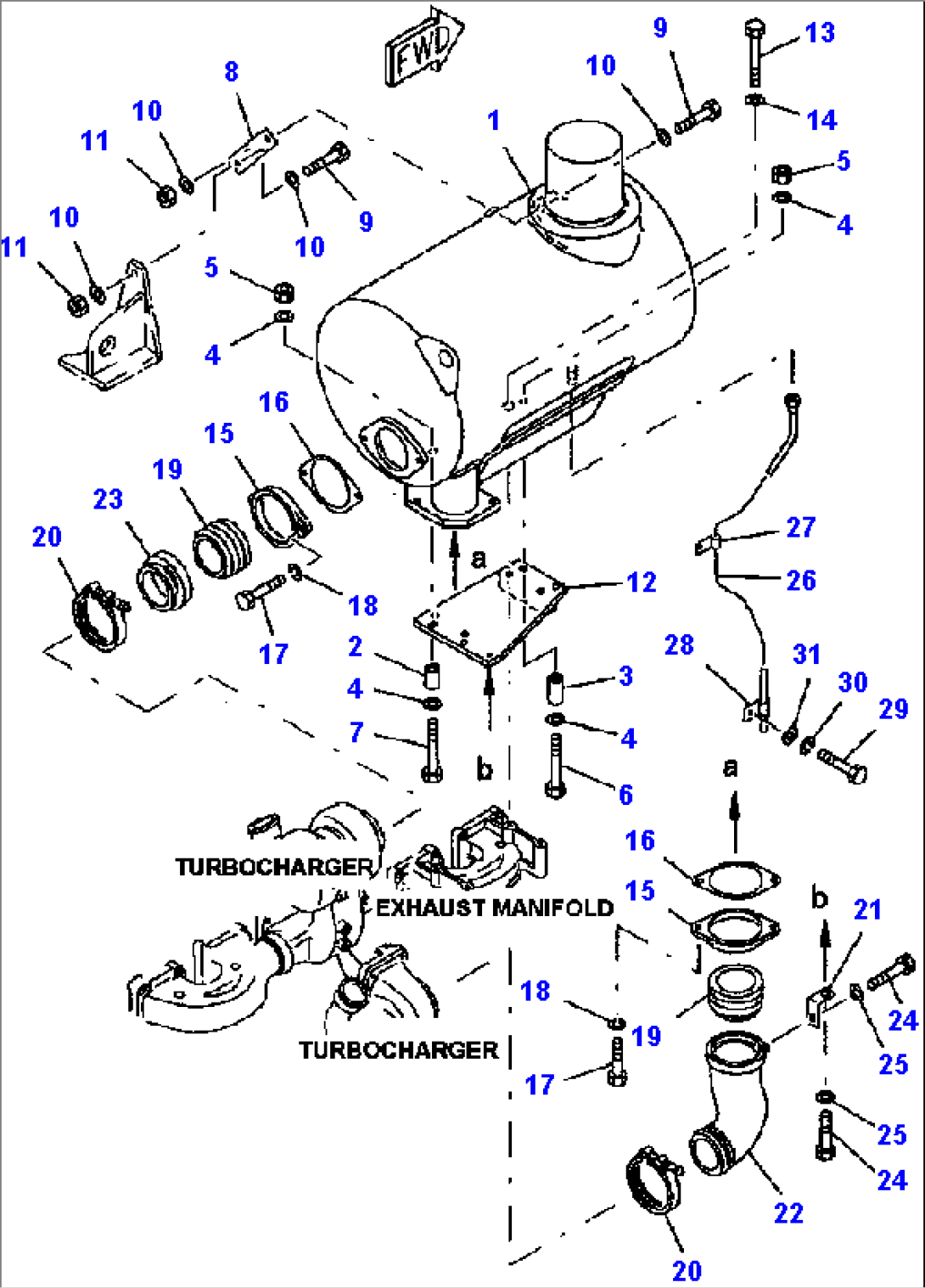

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 6162-15-5821 | MUFFLER | ||
| 2 | 6112-22-6960 | SPACER | ||
| 3 | 6142-22-4640 | SPACER | ||
| 4 | 01643-31232 | WASHER | ||
| 5 | 01580-01210 | NUT | ||
| 6 | 01010-E1280 | BOLT | ||
| 7 | 01010-E1285 | BOLT | ||
| 8 | 6162-14-5890 | STAY | ||
| 9 | 01010-E1240 | BOLT | ||
| 10 | 01643-31232 | WASHER | ||
| 11 | 01580-01210 | NUT | ||
| 12 | 6162-14-5350 | BRACKET | ||
| 13 | 01010-E1270 | BOLT | ||
| 14 | 01643-51232 | WASHER | ||
| 15 | 6162-14-5570 | FLANGE, MUFFLER | ||
| 16 | 6162-14-5540 | GASKET | ||
| 17 | 01010-E1030 | BOLT | ||
| 18 | 01602-01030 | WASHER, SPRING | ||
| 19 | 6162-13-5432 | JOINT | ||
| 20 | 6151-11-5361 | CLAMP | ||
| 21 | 6162-14-5590 | BRACKET | ||
| 22 | 6162-14-5550 | CONNECTOR, EXHAUST | ||
| 23 | 6162-14-5560 | JOINT | ||
| 24 | 01010-E1025 | BOLT | ||
| 25 | 01643-31032 | WASHER | ||
| 26 | 6162-13-5524 | TUBE, DRAIN | ||
| 27 | 6162-13-5660 | CLAMP | ||
| 28 | 6162-14-5880 | CLIP | ||
| 29 | 01010-81835 | BOLT | ||
| 30 | 01602-01854 | WASHER, SPRING | ||
| 31 | 01640-01826 | WASHER | ||
| F1 - THESE ITEMS ARE FOUND IN THE CYLINDER HEAD GASKET KIT (SEE FIG. A8118-A6A3). | ||||
