| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 6151-12-8620 | COVER | ||
| 2 | 01010-E1020 | BOLT | ||
| 3 | 01010-E1030 | BOLT | ||
| 4 | 01643-31032 | WASHER | ||
| 5 | 6151-12-8770 | COVER | ||
| 6 | 6151-12-8730 | COVER | ||
| 7 | 01010-E1025 | BOLT | ||
| 8 | 01643-31032 | WASHER | ||
| 9 | 6151-61-3781 | SPACER |
- Главная
- Каталог запчастей
- Бульдозеры
- D87e 2 s/n p090001 up
- Engine
- Fig. a1610 b3s3 muffler cover
Поиск по каталогу

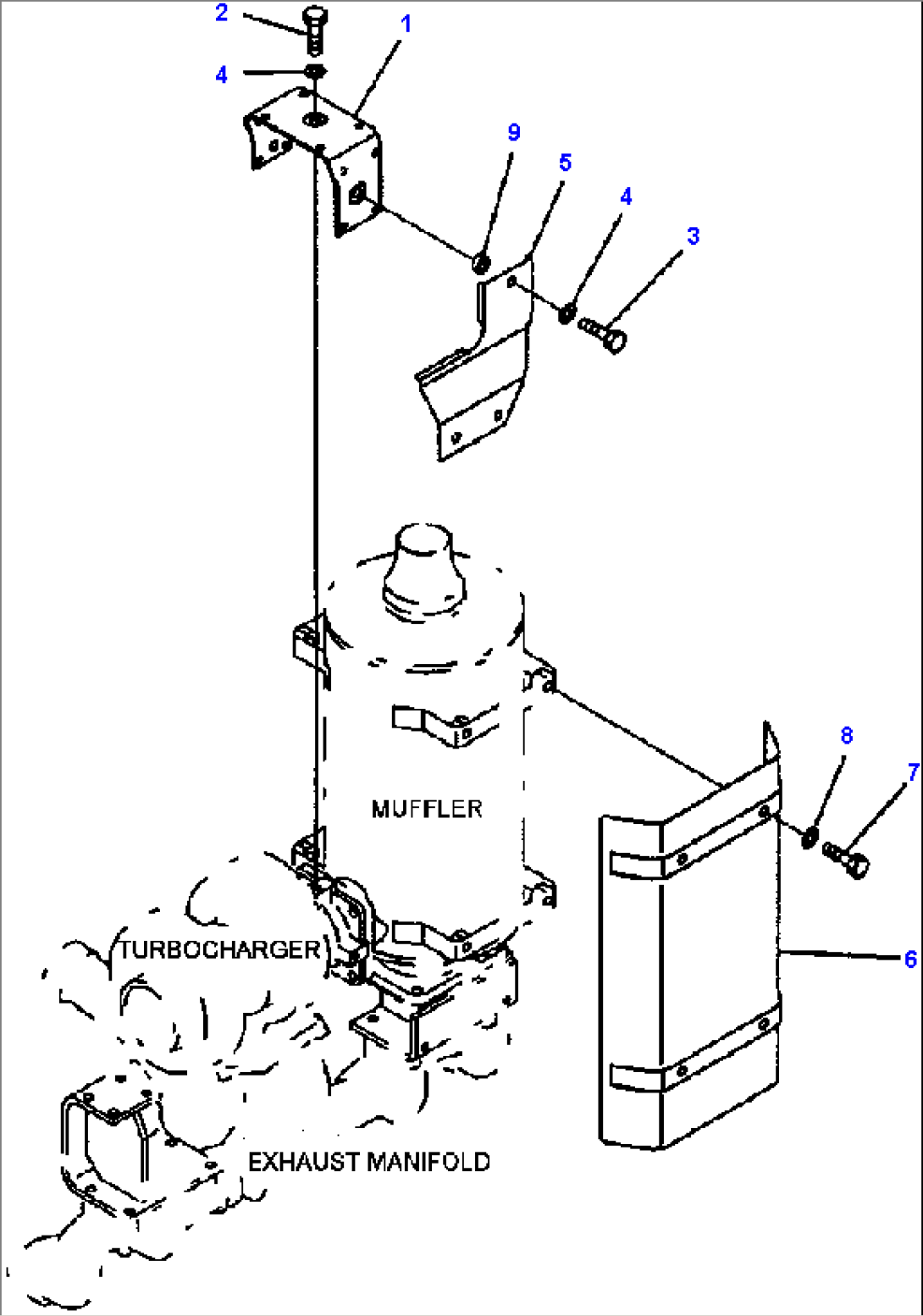

FIG. A1610-B3S3 MUFFLER COVER
