| Item | Part No. | Part Name | Qty | Serial No. |

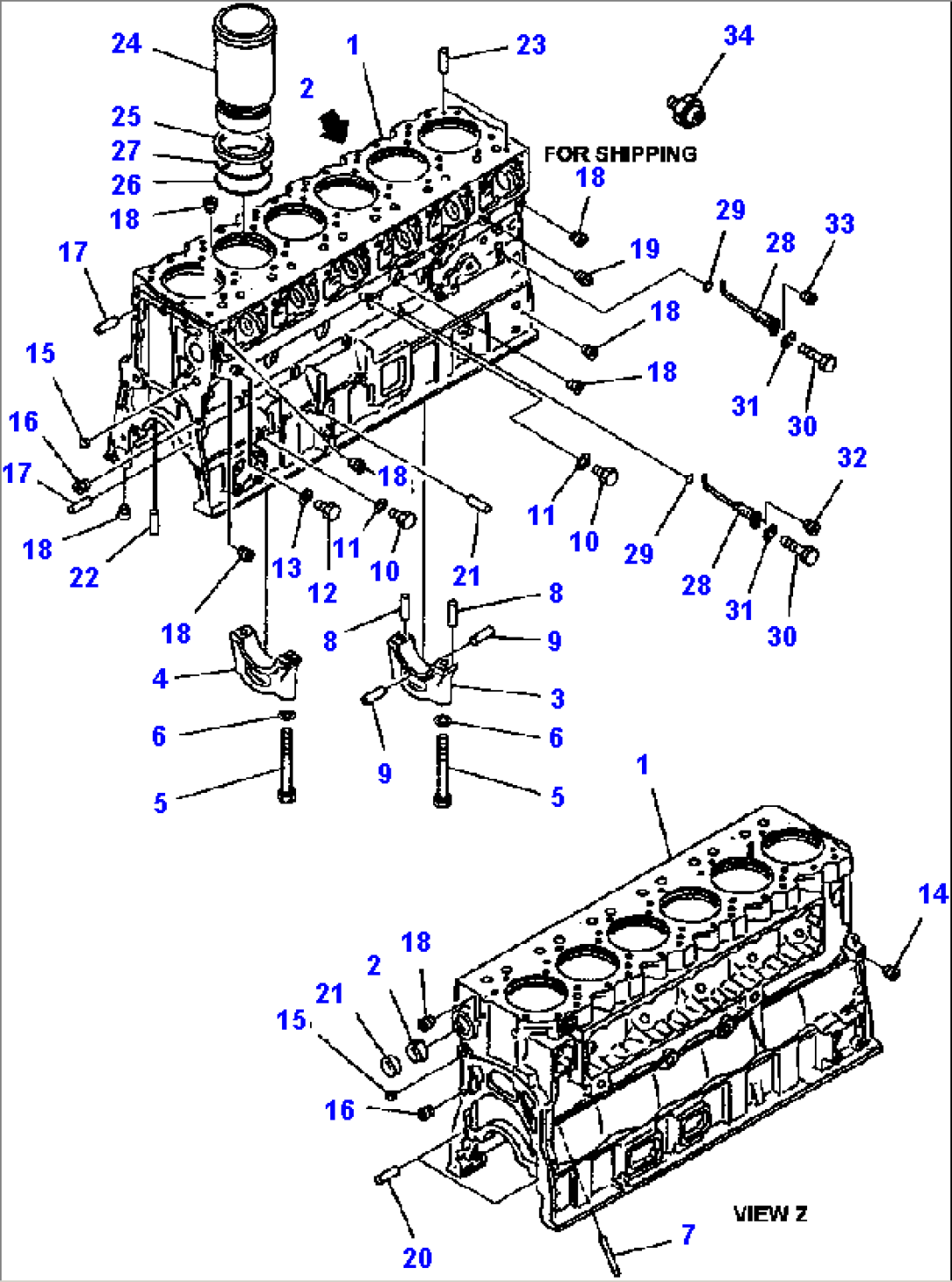

| 6162-23-1103 | CYLINDER BLOCK ASSEMBLY | |||
| 1 | (NSS) | BLOCK, CYLINDER | ||
| 2 | 6162-23-1490 | BUSHING, CAMSHAFT | ||
| 3 | 6162-29-1250 | CAP, MAIN (NO. 6) | ||
| 4 | 6162-29-1210 | CAP, MAIN (NO. 1,2,3,4,5,7) | ||
| 5 | 6162-23-1710 | BOLT, MAIN CAP | ||
| 6 | 6127-21-1741 | WASHER | ||
| 7 | 6162-23-1140 | TUBE | ||
| 8 | 04020-00514 | PIN, DOWEL | ||
| 9 | 6162-23-1260 | PIN, DOWEL | ||
| 10 | 07040-11409 | PLUG | ||
| 11 | 07005-01412 | GASKET | ||
| 12 | 07040-11007 | PLUG | ||
| 13 | 07005-01012 | GASKET | ||
| 14 | 07043-50211 | PLUG | ||
| 15 | 07046-43516 | PLUG | ||
| 16 | 07043-50415 | PLUG | ||
| 17 | 04020-01434 | PIN, DOWEL | ||
| 18 | 07043-50108 | PLUG | ||
| 19 | 07042-A0108 | PLUG | ||
| 20 | 6127-21-1160 | PIN, DOWEL | ||
| 21 | 07046-48020 | PLUG | ||
| 22 | 04020-00820 | PIN, DOWEL | ||
| 23 | 6162-13-1410 | PIN, GROOVE | ||
| 24 | 6162-25-2210 | LINER, CYLINDER | ||
| 25 | 6162-23-2250 | SEAL, CREVICE | ||
| 26 | 6162-23-2240 | O-RING, LOWER | ||
| 27 | 6162-23-2220 | O-RING, CENTER | ||
| 28 | 6161-21-1840 | NOZZLE, PISTON COOLING | ||
| 29 | 07000-72016 | O-RING | ||
| 30 | 01010-80818 | BOLT | ||
| 31 | 01602-00825 | WASHER, SPRING | ||
| 32 | 6100-21-1130 | PLUG (NO.4) | ||
| 33 | 07043-70108 | PLUG (NO. 1,2,3,5,6) | ||
| 34 | 08073-10505 | SWITCH, OIL PRESSURE | ||
| F1 - THESE ITEMS ARE FOUND IN THE CYLINDER BLOCK GASKET KIT (SEE FIG. A8116-B6A3). | ||||
