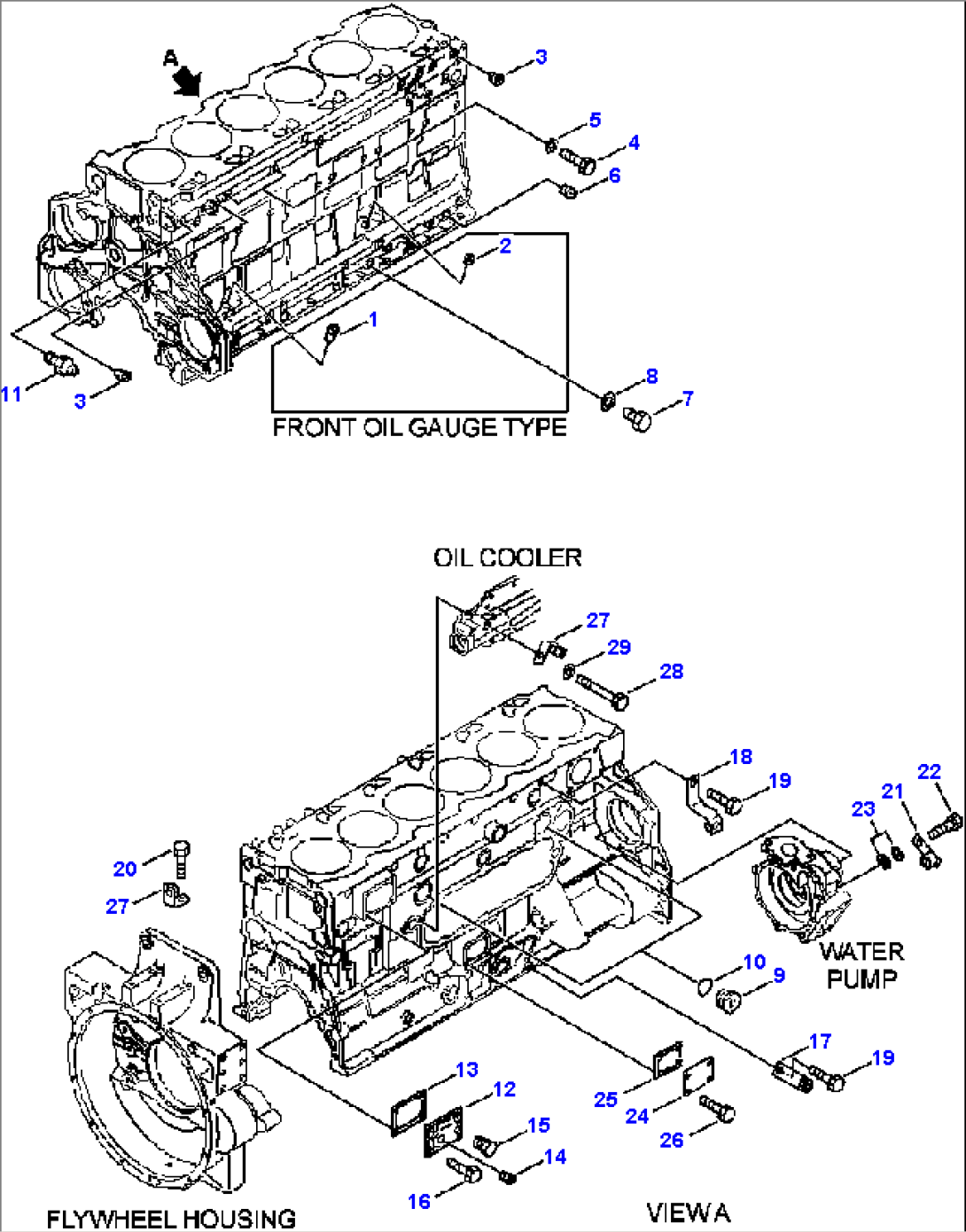

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 6150-21-5910 | BUSHING, OIL GAUGE GUIDE | ||
| 2 | 07046-22010 | PLUG | ||
| 3 | 07043-50108 | PLUG | ||
| 4 | 01050-51012 | BOLT | ||
| 5 | 07005-01012 | GASKET | ||
| 6 | 07042-00312 | PLUG | ||
| 7 | 6110-53-5910 | PLUG | ||
| 8 | 07005-01412 | GASKET | ||
| 9 | 6150-21-1180 | PLUG | ||
| 10 | 6150-21-1190 | O-RING | ||
| 11 | 08073-10505 | SWITCH, OIL PRESSURE | ||
| 12 | 6210-21-1960 | COVER | ||
| 13 | 6210-21-1971 | GASKET | ||
| 14 | 07043-00415 | PLUG | ||
| 15 | 287-35-11470 | PLUG | ||
| 16 | 01010-81025 | BOLT | ||
| 17 | 421-62-11940 | PLATE | ||
| 18 | 42A-16-11220 | PLATE | ||
| 19 | 01010-81020 | BOLT | ||
| 20 | 01010-81220 | BOLT | ||
| 21 | 426-06-11570 | BRACKET | ||
| 22 | 01010-81040 | BOLT | ||
| 23 | 01643-31032 | WASHER | ||
| 24 | 6306-21-4710 | PLATE | ||
| 25 | 6206-21-6871 | GASKET | ||
| 26 | 01010-81020 | BOLT | ||
| 27 | 42A-16-11210 | PLATE | ||
| 28 | BOLT (SEE FIG. A3310-A3B4) | |||
| 29 | WASHER (SEE FIG. A3310-A3B4) | |||
| F1 - THESE ITEMS ARE ALSO INCLUDED IN CYLINDER HEAD GASKET KIT. (SEE FIG. A8116-B3A7) | ||||
