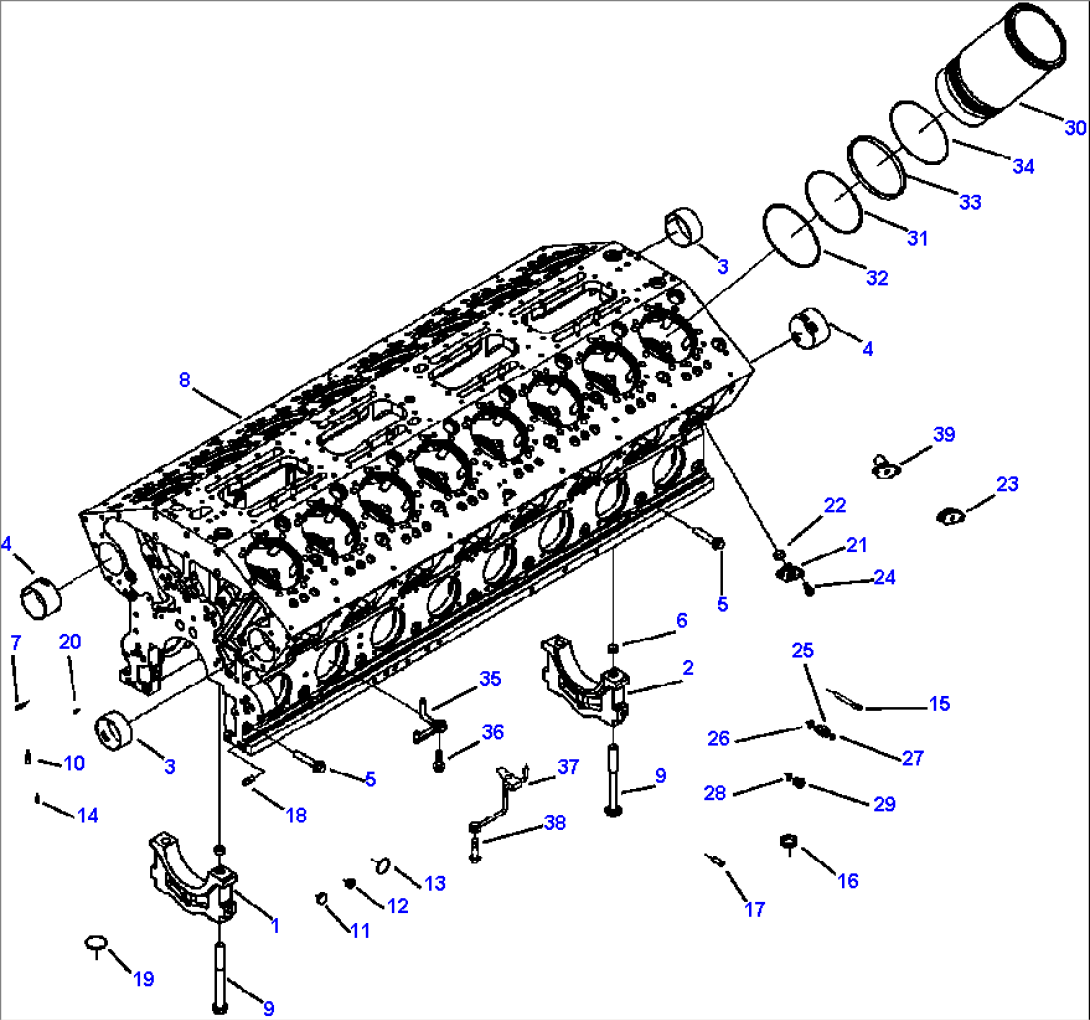

| Item | Part No. | Part Name | Qty | Serial No. |
| 4001053 | BLOCK, CYLINDER | |||
| 1 | 3082443 | CAP, MAIN BEARING | ||
| 2 | 4016758 | CAP, MAIN BEARING | ||
| 3 | 3089172 | BUSHING | ||
| 4 | 3089173 | BUSHING | ||
| 5 | 3089192 | BOLT | ||
| 6 | 3089201 | DOWEL, RING | ||
| 7 | 4016701 | DOWEL, PIN | ||
| 8 | (NSS) | BLOCK, CYLINDER | ||
| 9 | 3332234 | BOLT | ||
| 10 | 68445 | PIN, GROOVE | ||
| 11 | 4017622 | PLUG, EXPANSION | ||
| 12 | 3082438 | DOWEL, RING | ||
| 13 | 3629168 | PLUG, EXPANSION | ||
| 14 | 3172027 | DOWEL, PIN | ||
| 15 | 3176663 | SEAL, TAMPER PROOF | ||
| 16 | 4017621 | PLUG, EXPANSION | ||
| 17 | 3089378 | DOWEL, PIN | ||
| 18 | 3089379 | DOWEL, DIAMOND | ||
| 19 | 4017240 | PLUG, EXPANSION | ||
| 20 | 4001096 | DOWEL, PIN | ||
| 21 | 3631471 | ADAPTER, O-RING | ||
| 22 | 3632840 | SEAL, O-RING | ||
| 23 | 4017236 | ADAPTER, O-RING | ||
| 24 | 3902460 | BOLT (M10-1.50x25) | ||
| 3090400 | UNION, MALE | |||
| 25 | 3090419 | UNION, MALE | ||
| 26 | 3679139 | SEAL, O-RING | ||
| 27 | 3922794 | SEAL, O-RING | ||
| 3678873 | PLUG, THREADED | |||
| 28 | 3678786 | SEAL, O-RING | ||
| 29 | (NSS) | PLUG, THREADED | ||
| 3800366 | KIT, LINER | |||
| 30 | (NSS) | LINER, CYLINDER | ||
| 31 | 3011076 | SEAL, D-RING | ||
| 32 | 3014668 | SEAL, D-RING | ||
| 33 | 3081489 | SEAL, OIL | ||
| 34 | 3088386 | RING, LINER SEAL | ||
| 3088385 | RING, LINER SEAL | |||
| 3088387 | RING, LINER SEAL | |||
| 3088388 | RING, LINER SEAL | |||
| 35 | 3411273 | NOZZLE, PISTON COOLING | ||
| 36 | 3089016 | BOLT | ||
| 37 | 4080156 | NOZZLE, PISTON COOLING | ||
| 38 | 4001095 | BOLT | ||
| 39 | 4065339 | CONNECTION, ADAPTER |
