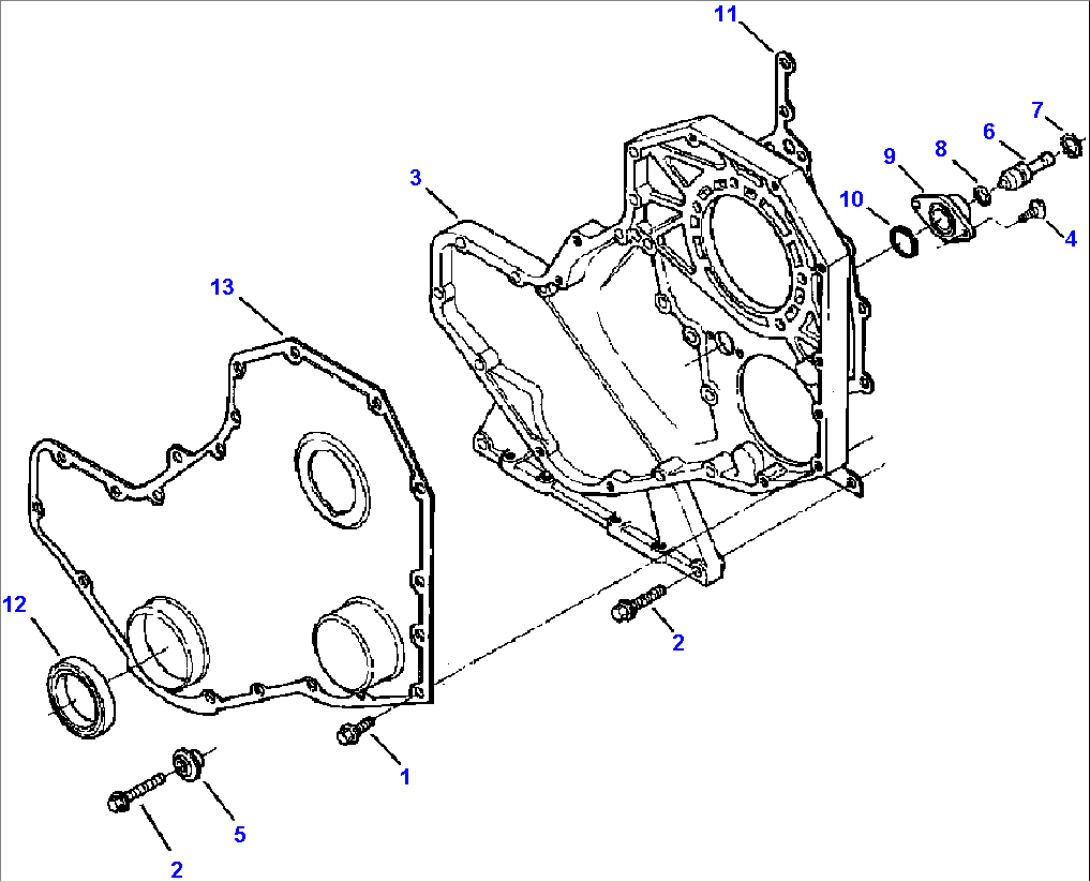

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 6736-21-5310 | BOLT, MOUNTING (M8-1.25x16) | ||
| 2 | 6736-21-3210 | BOLT, MOUNTING (M8-1.25x50) | ||
| 6742-01-2440 | BOLT (M8-1.25x65) | |||
| 3 | 6731-21-3110 | HOUSING, GEAR | ||
| 4 | 6732-21-3160 | BOLT (M5-0.80x17) | ||
| 5 | 6736-21-3810 | RETAINER, BELT | ||
| 6 | 6732-21-3140 | PIN, TIMING | ||
| 7 | 6732-21-3150 | RING, RETAINING | ||
| 8 | 6732-21-3870 | SEAL, O-RING | ||
| 9 | 6732-21-3180 | HOUSING, TIMING PIN | ||
| 10 | 6732-21-3880 | SEAL, RECTANGULAR RING | ||
| 11 | 6732-21-3812 | GASKET, GEAR HOUSING | ||
| 6731-21-4220 | KIT, FRONT SEAL SERVICE | |||
| 6731-81-8710 | SHIELD DUST | |||
| 12 | (NSS) | SEAL, OIL | ||
| 13 | 6736-21-3310 | COVER, GEAR | ||
| 6742-01-0540 | BOLT (M8-1.25x20) | |||
| F1 - KIT INCLUDES INSTALLATION TOOLS. | ||||
