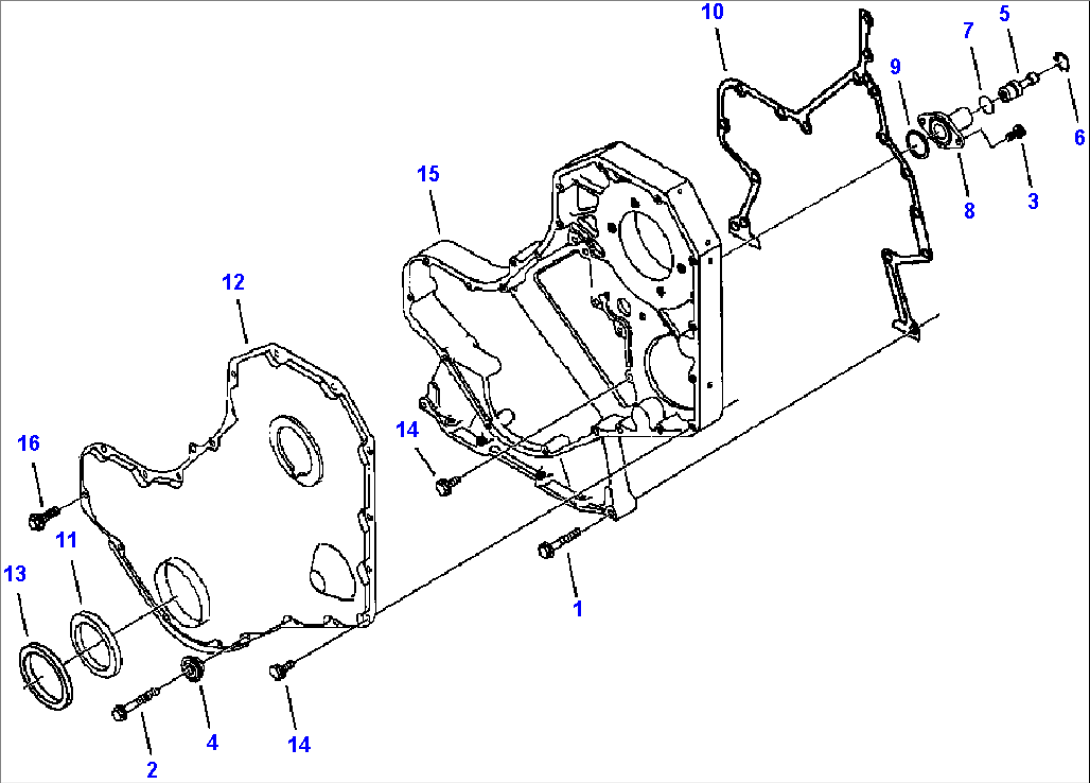

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 6742-01-0530 | BOLT - M8-1.25 X 50 | ||
| 2 | 6742-01-2441 | BOLT - M8-1.25 X 60 | ||
| 3 | 6732-21-3160 | BOLT - M5-0.80 X 17 | ||
| 4 | 6736-21-3810 | RETAINER, BELT | ||
| (NSS) | HOUSING, TIMING PIN | |||
| 5 | 6732-21-3140 | PIN, TIMING | ||
| 6 | 6732-21-3150 | RING, RETAINING | ||
| 7 | 6732-21-3870 | O-RING | ||
| 8 | 6732-21-3180 | HOUSING, TIMING PIN | ||
| 9 | 6732-21-3880 | SEAL, RECTANGULAR RING | ||
| 10 | 6732-21-3812 | GASKET, GEAR HOUSING | ||
| 11 | 6735-21-3511 | SEAL, FRONT OIL - WITH APPLICATIONTOOL | ||
| 12 | 6736-21-3310 | COVER, GEAR | ||
| 13 | 6736-21-3450 | GASKET, GEAR COVER | ||
| 14 | 6736-21-3220 | BOLT | ||
| 15 | 6735-21-3123 | HOUSING, GEAR | ||
| 16 | 6742-01-0540 | BOLT - M8-1.25 X 20 |
