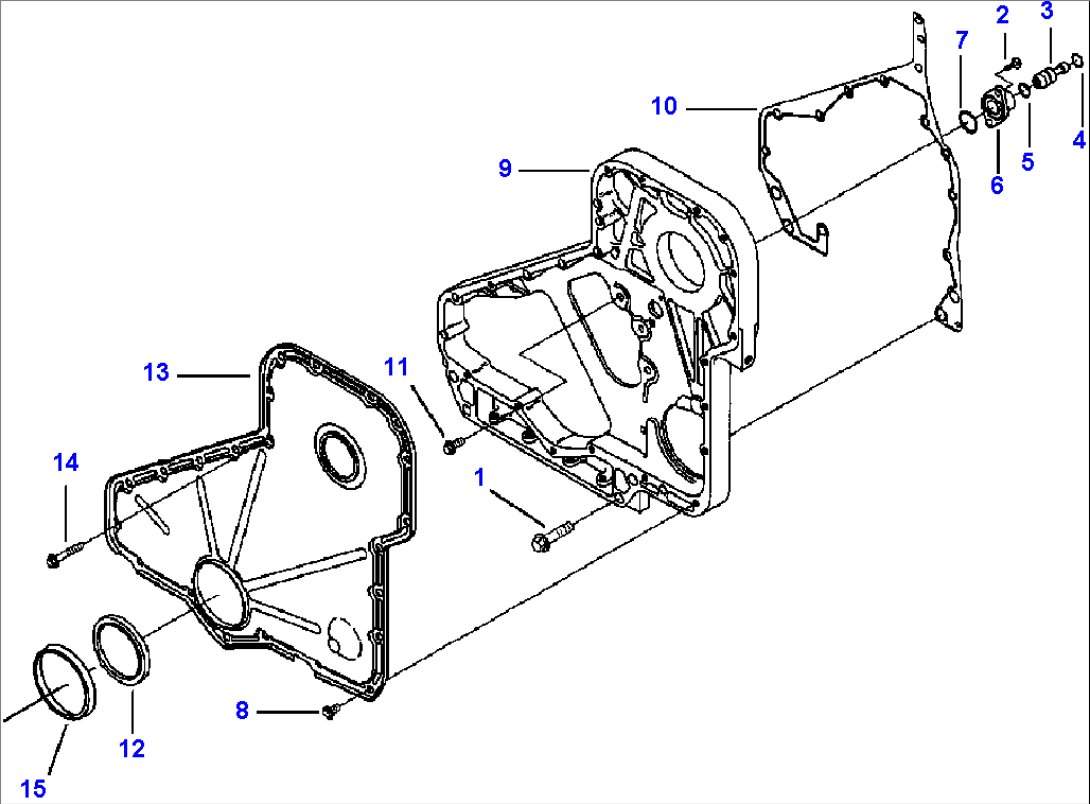

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 6742-01-3780 | BOLT (M12-1.75x50) | ||
| 2 | 6732-21-3160 | BOLT (M5-0.80x17) | ||
| 3 | 6732-21-3140 | PIN, TIMING | ||
| 4 | 6732-21-3150 | RING, RETAINING | ||
| 5 | 6732-21-3870 | SEAL, O-RING | ||
| 6 | 6732-21-3180 | HOUSING, TIMING PIN | ||
| 7 | 6732-21-3880 | SEAL, RECTANGULAR RING | ||
| 8 | 6736-21-5310 | BOLT (M8-1.25x16) | ||
| 9 | 1294 785 H2 | HOUSING, GEAR | ||
| 10 | 6742-21-3810 | GASKET, GEAR HOUSING | ||
| 11 | 6742-01-0540 | BOLT (M8-1.25x20) | ||
| 6731-21-3380 | COVER, GEAR | |||
| 12 | (NSS) | SEAL, OIL | ||
| 13 | (NSS) | COVER, GEAR | ||
| 14 | 6742-01-0530 | BOLT (M8-1.25x50) | ||
| 15 | 6742-01-3320 | SHIELD, DUST |
