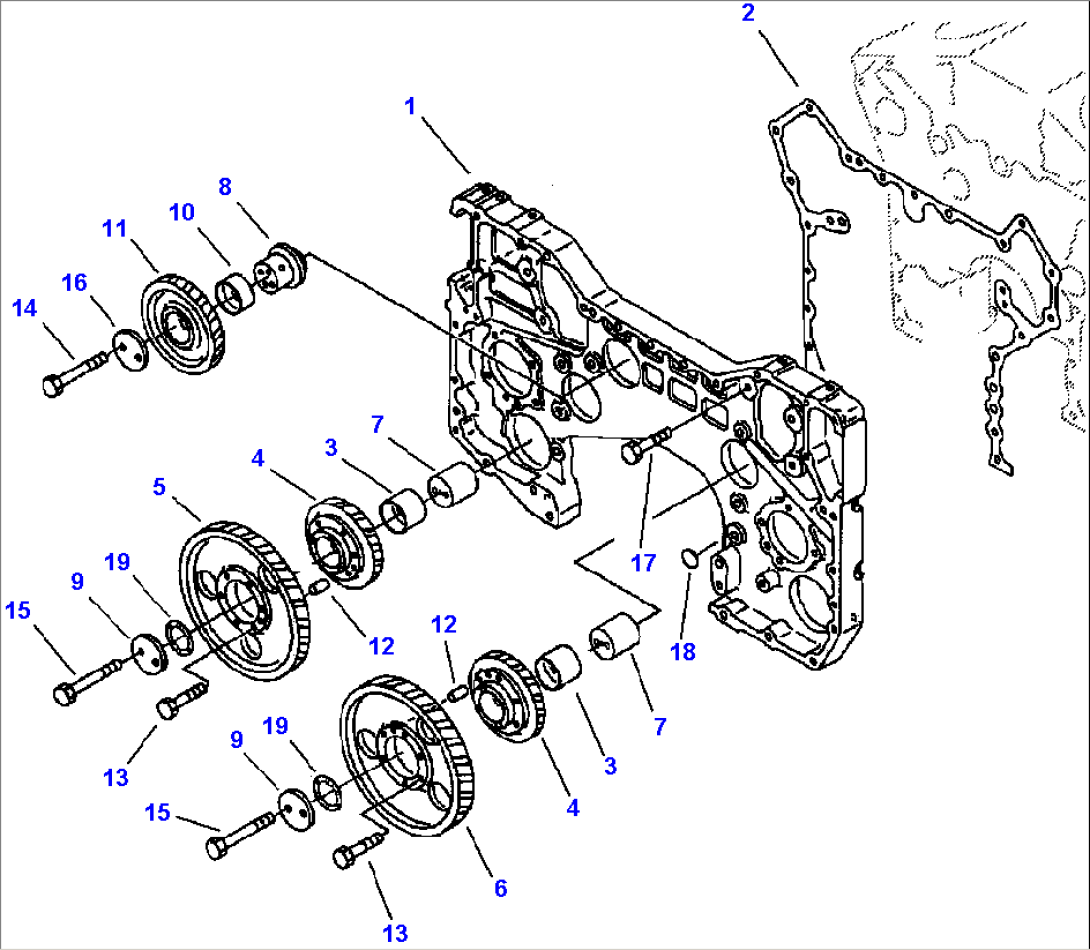

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 6216-21-3230 | HOUSING, GEAR | ||
| 2 | 6215-21-3820 | GASKET, GEAR HOUSING | ||
| 6215-31-6100 | GEAR, IDLER | |||
| 3 | 6212-31-6130 | BUSHING | ||
| 4 | (NSS) | GEAR, IDLER | ||
| 5 | 6215-31-6160 | GEAR, IDLER (RIGHT HAND) | ||
| 6 | 6215-31-6120 | GEAR, IDLER (LEFT HAND) | ||
| 7 | 6215-31-6431 | SHAFT, IDLER | ||
| 8 | 6215-31-6420 | SHAFT, IDLER | ||
| 9 | 6215-31-6470 | RETAINER, GEAR | ||
| 6215-31-6500 | GEAR, IDLER | |||
| 10 | 6215-31-6150 | BUSHING | ||
| 11 | (NSS) | GEAR, IDLER | ||
| 12 | 6127-21-1260 | DOWEL, PIN | ||
| 13 | 6216-34-6410 | BOLT (M10-1.50x40) | ||
| 14 | 01010-81280 | BOLT (M12-1.75x80) | ||
| 15 | 01011-31210 | BOLT (M12-1.75x110) | ||
| 16 | 6215-31-6460 | RETAINER, GEAR | ||
| 17 | 6216-34-6430 | BOLT (M12-1.75x30) | ||
| 18 | 07046-11816 | PLUG, EXPANSION | ||
| 19 | 6215-31-6131 | BEARING, THRUST |
