| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 6151-22-5331 | GAUGE, OIL LEVEL | ||
| 2 | 6151-22-5450 | GUIDE | ||
| 3 | 6150-21-5920 | COLLAR | ||
| 4 | 6150-21-5930 | NUT | ||
| 5 | 6144-21-5650 | CLIP | ||
| 6 | 01010-80816 | BOLT | ||
| 7 | 01580-10806 | NUT | ||
| 8 | 01642-20810 | WASHER | ||
| 9 | BRACKET (SEE FIG. A2060-A3D4) |
- Главная
- Каталог запчастей
- Бульдозеры
- D87e 2 s/n p090001 up
- Engine
- Fig. a2110 b3g5 oil level gauge
Поиск по каталогу

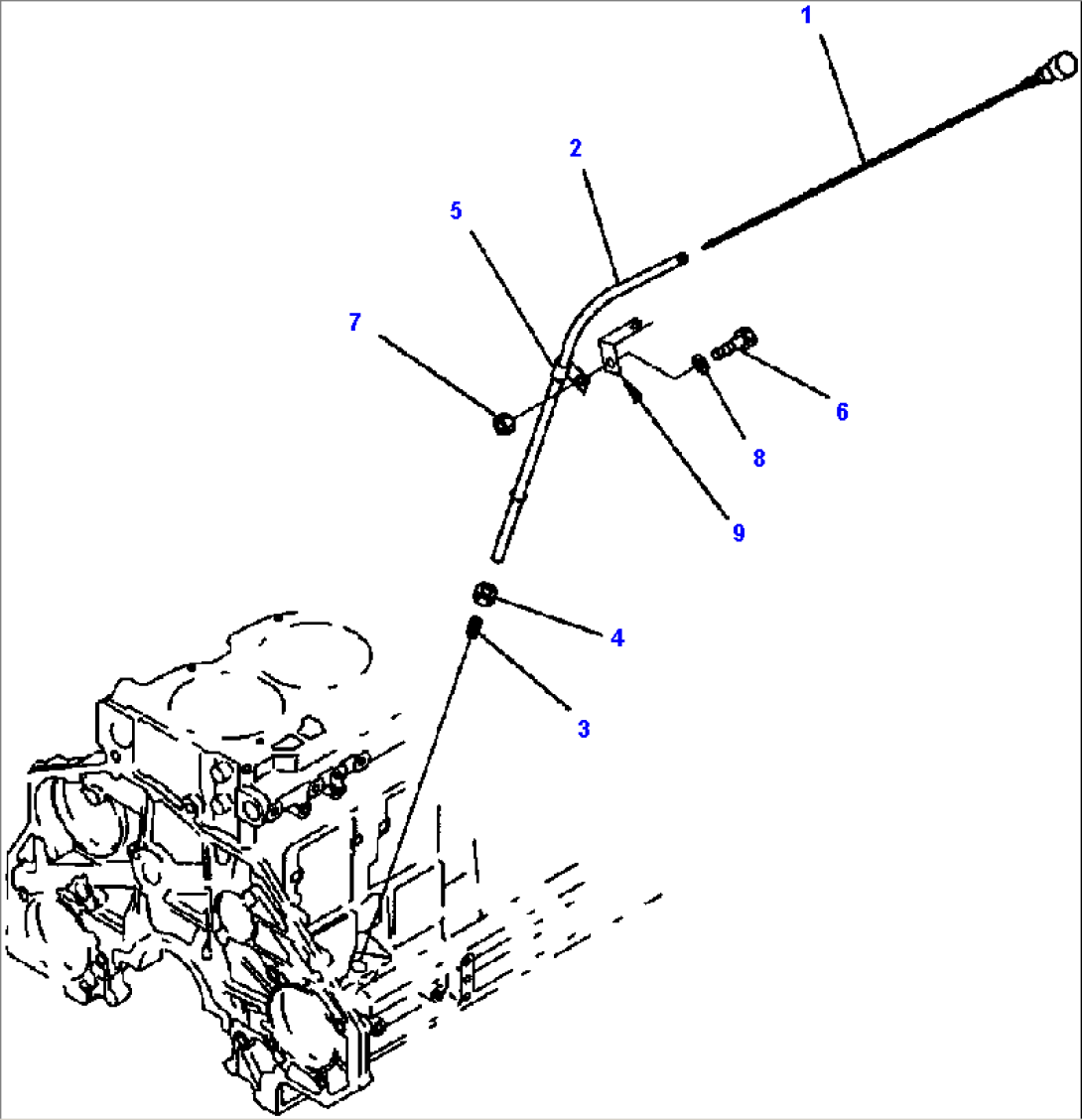

FIG. A2110-B3G5 OIL LEVEL GAUGE
