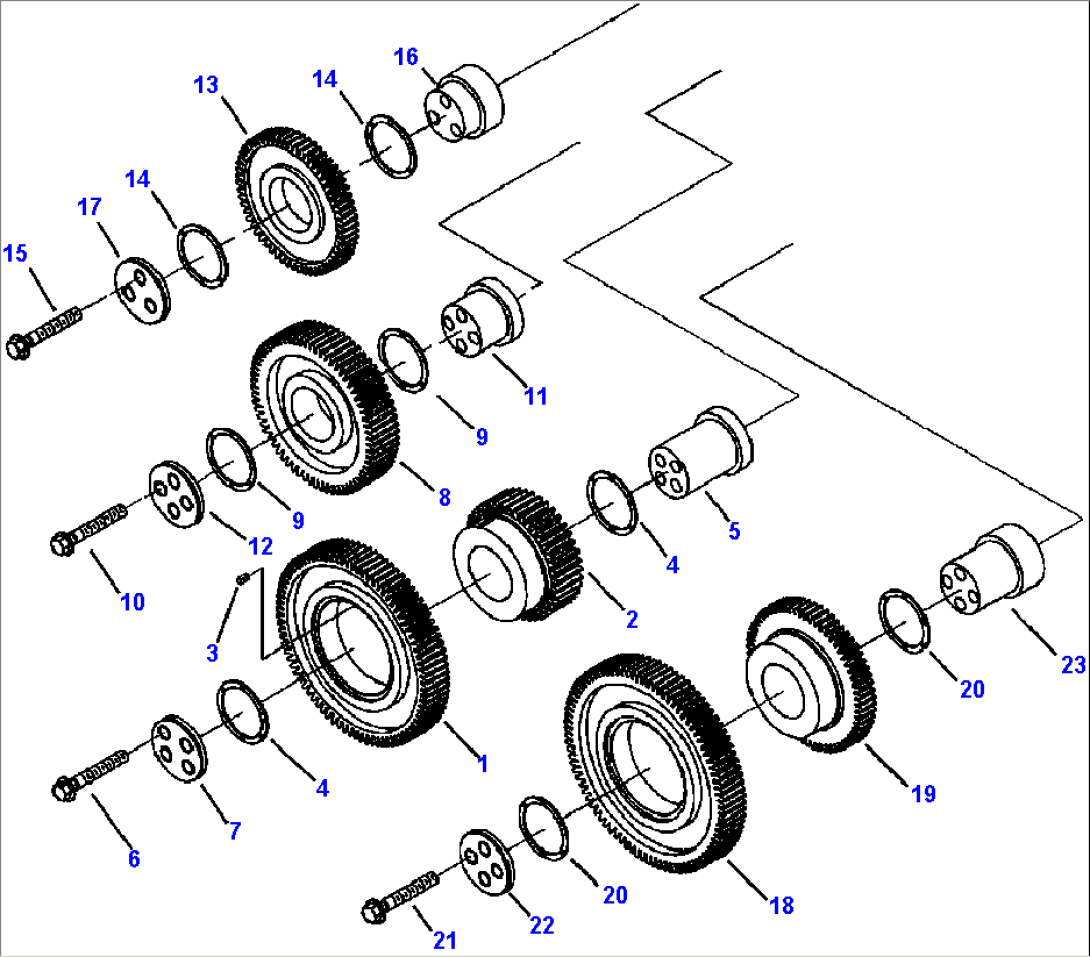

| Item | Part No. | Part Name | Qty | Serial No. |
| L. B. CAMSHAFT IDLER GEAR | ||||
| 3089087 | GEAR, IDLER | |||
| 1 | (NSS) | GEAR, IDLER | ||
| 2 | (NSS) | GEAR, IDLER | ||
| 3082057 | BUSHING | |||
| (NSS) | GEAR, IDLER | |||
| 3 | 3089498 | KEY, SQUARE | ||
| 4 | 3082121 | BEARING, THRUST | ||
| 5 | 3089083 | SHAFT, IDLER | ||
| 6 | 3089259 | BOLT | ||
| 7 | 3089281 | RETAINER, GEAR | ||
| R. B. CAMSHAFT IDLER GEAR | ||||
| 8 | 3089091 | GEAR, IDLER | ||
| (NSS) | GEAR, IDLER | |||
| 3089214 | BUSHING | |||
| 9 | 3082121 | BEARING, THRUST | ||
| 10 | 3082427 | BOLT | ||
| 11 | 3089084 | SHAFT, IDLER | ||
| 12 | 3089281 | RETAINER, GEAR | ||
| WATER PUMP IDLER GEAR | ||||
| 13 | 3089105 | GEAR, IDLER | ||
| (NSS) | GEAR, IDLER | |||
| 3089107 | BUSHING | |||
| 14 | 3082121 | BEARING, THRUST | ||
| 15 | 3082427 | BOLT | ||
| 16 | 3089104 | SHAFT, IDLER | ||
| 17 | 3089320 | RETAINER, GEAR | ||
| ACCESSORY DRIVE (COMPOUND) IDLER GEAR | ||||
| 3089121 | GEAR, IDLER | |||
| 18 | (NSS) | GEAR, IDLER | ||
| 19 | (NSS) | GEAR, IDLER | ||
| (NSS) | GEAR, IDLER | |||
| 3089315 | BUSHING | |||
| 20 | 3082121 | BEARING, THRUST | ||
| 21 | 3089259 | BOLT | ||
| 22 | 3089281 | RETAINER, GEAR | ||
| 23 | 3089314 | SHAFT, IDLER |
