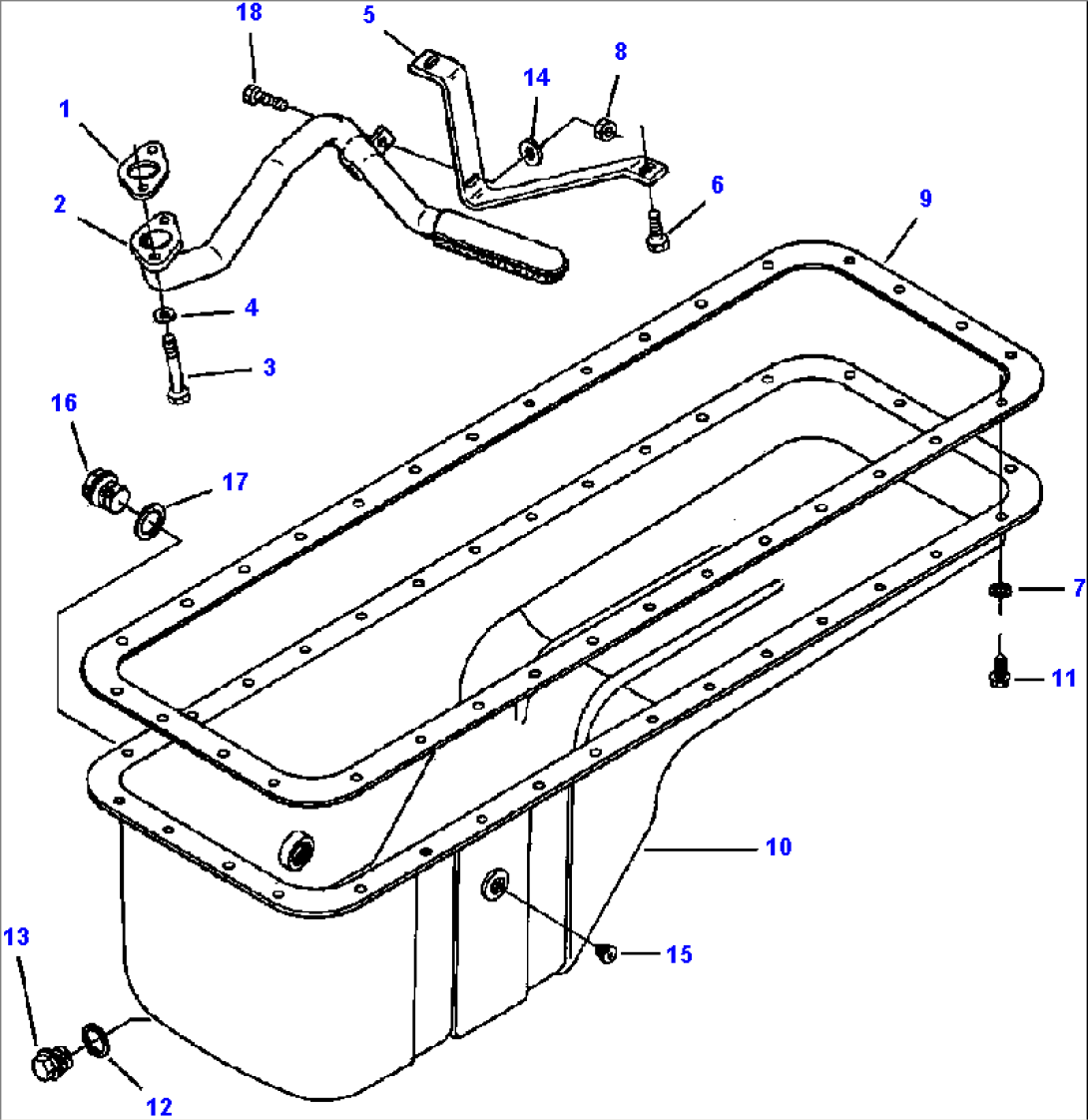

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 6742-01-1001 | GASKET, OIL SUCTION CONNECTION | ||
| 2 | 6742-01-2620 | CONNECTION, OIL SUCTION | ||
| 3 | 6742-01-2630 | BOLT - M6-1.00 X 30 | ||
| 4 | 6742-01-0310 | SPACER, MOUNTING | ||
| 5 | 1241 280 H2 | BRACE, TUBE | ||
| 6 | 6732-21-4180 | BOLT - M6-1.00 X 15 | ||
| 7 | 6732-21-5180 | WASHER, PLAIN - M9 | ||
| 8 | 01584-00605 | NUT | ||
| 9 | 6742-01-5308 | GASKET, OIL PAN | ||
| 10 | 6742-01-2670 | PAN, OIL | ||
| 11 | 6735-21-5540 | BOLT - M8-1.25 X 21 | ||
| 6732-21-6610 | BOLT - M8-1.25 X 25 | |||
| 12 | 6732-21-5190 | WASHER, SEALING | ||
| 13 | 6732-21-5210 | PLUG, THREADED - M8-1.25 X 12 | ||
| 14 | 6742-01-2690 | WASHER, PLAIN - M6 | ||
| 15 | 6732-21-5540 | PLUG, PIPE - 3/8 NPT | ||
| 16 | 6736-21-5320 | PLUG, THREADED | ||
| 17 | 6732-21-5170 | WASHER, SEALING | ||
| 18 | 6735-71-5190 | BOLT - M6-1.0 X 20 | ||
| N/I | 6736-22-5210 | PLATE, CLAMPING |
