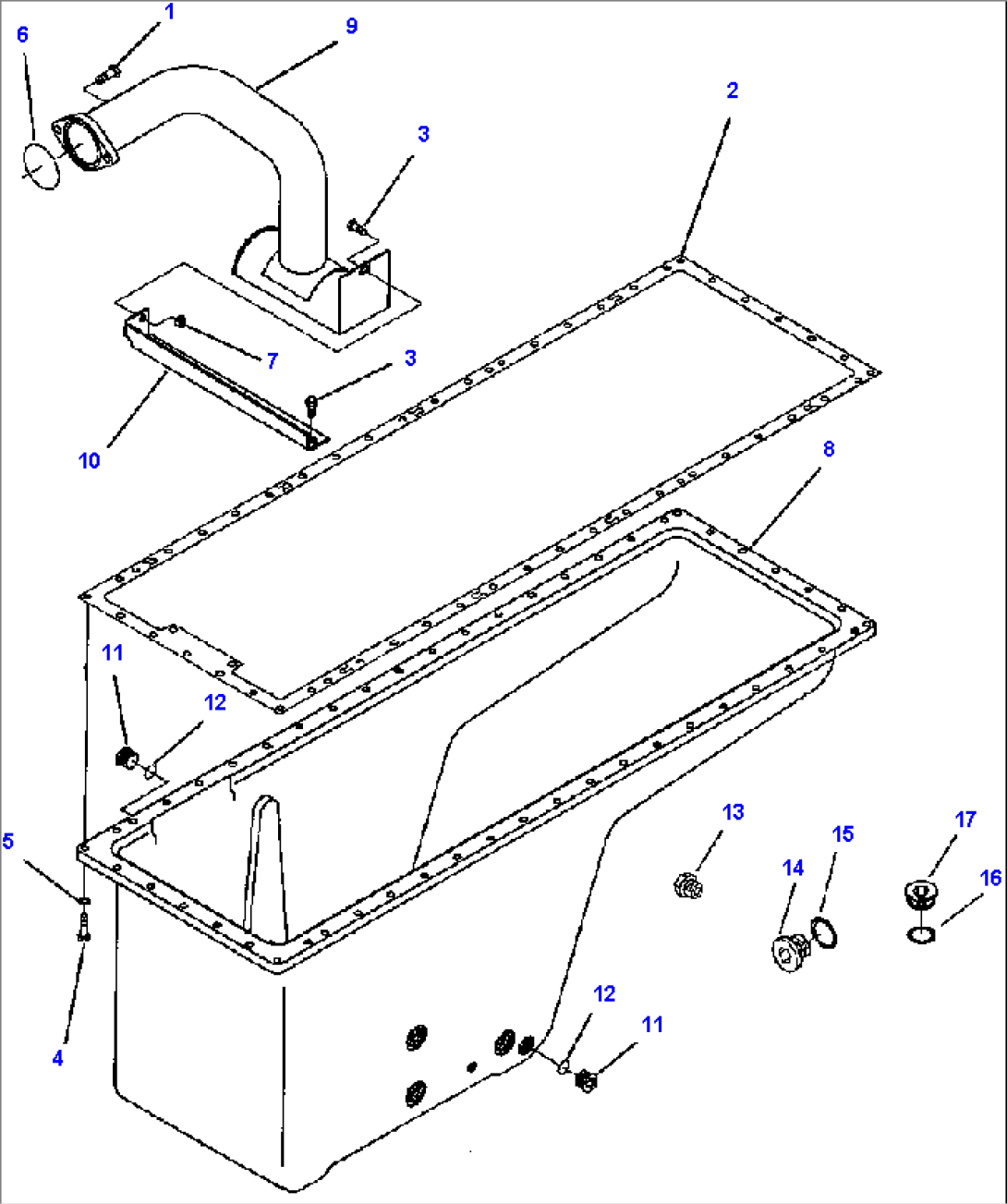

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 6216-94-3170 | BOLT (M12-1.75x35) | ||
| 2 | 6215-21-5830 | GASKET, OIL PAN | ||
| 3 | 01010-31025 | BOLT (M10-1.50x25) | ||
| 4 | 6216-71-6130 | BOLT (M10-1.50x40) | ||
| 5 | 01643-31032 | WASHER, PLAIN (M10) | ||
| 6 | 07000-E2080 | O-RING | ||
| 7 | 01580-01008 | NUT (M10-1.50) | ||
| 8 | 6216-24-5110 | PAN, OIL | ||
| 9 | 6216-54-6330 | TUBE, OIL SUCTION | ||
| 10 | 6216-54-6340 | BRACKET, OIL TUBE | ||
| 6216-24-1910 | PLUG, THREADED (M27) | |||
| 11 | (NSS) | PLUG, THREADED (M27-2.00) | ||
| 12 | 6216-24-1920 | O-RING | ||
| 13 | 6732-21-5540 | PLUG, PIPE (3/8 NPT) | ||
| 6216-24-5120 | PLUG, THREADED (M33-2.00) | |||
| 14 | (NSS) | PLUG, THREADED | ||
| 15 | 6216-54-1330 | SEAL, O-RING | ||
| 6735-21-1910 | PLUG, THREADED (M14-1.50) | |||
| 16 | 6735-21-1930 | SEAL, O-RING | ||
| 17 | (NSS) | PLUG, THREADED |
