| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 6150-31-1510 | PULLEY, NON-HARDENING | ||
| 2 | 04020-01228 | PIN, DOWEL | ||
| 3 | 01051-51635 | BOLT | ||
| 4 | 01051-51430 | BOLT | ||
| 5 | 6150-31-1810 | WASHER | ||
| 6 | 6130-32-1361 | WASHER |
- Главная
- Каталог запчастей
- Бульдозеры
- D87e 2 s/n p090001 up
- Engine
- Fig. a2370 a3c3 crank pulley non hardening pulley
Поиск по каталогу

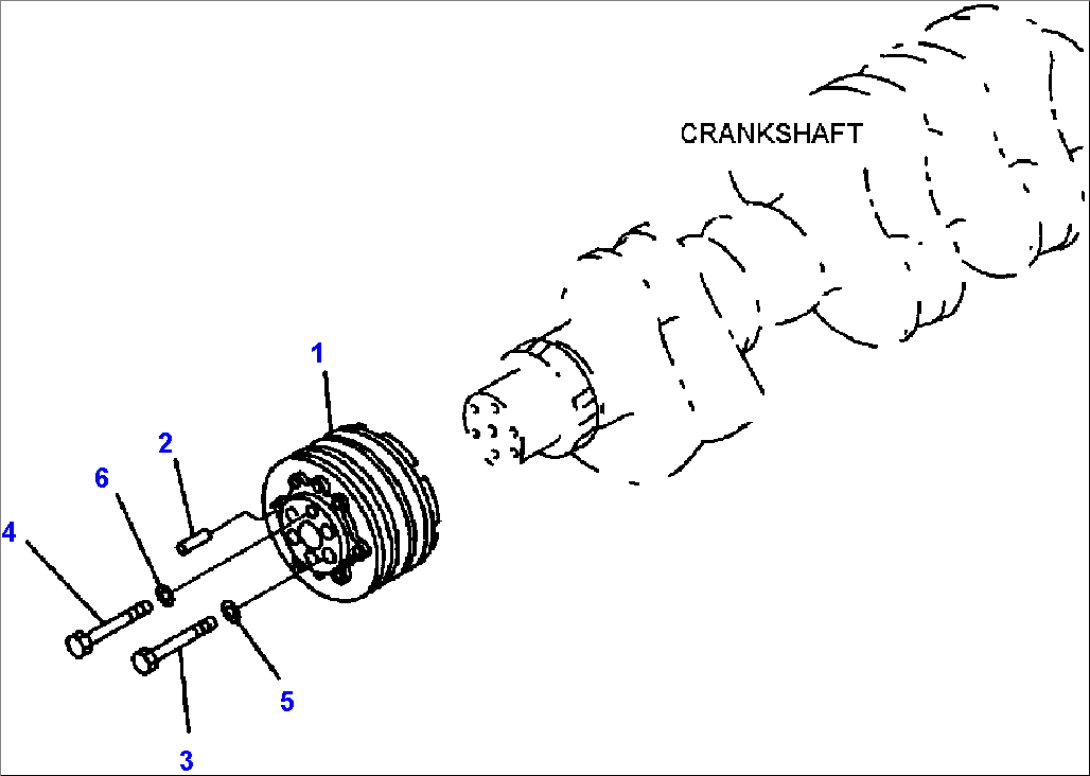

FIG. A2370-A3C3 CRANK PULLEY - NON-HARDENING PULLEY
