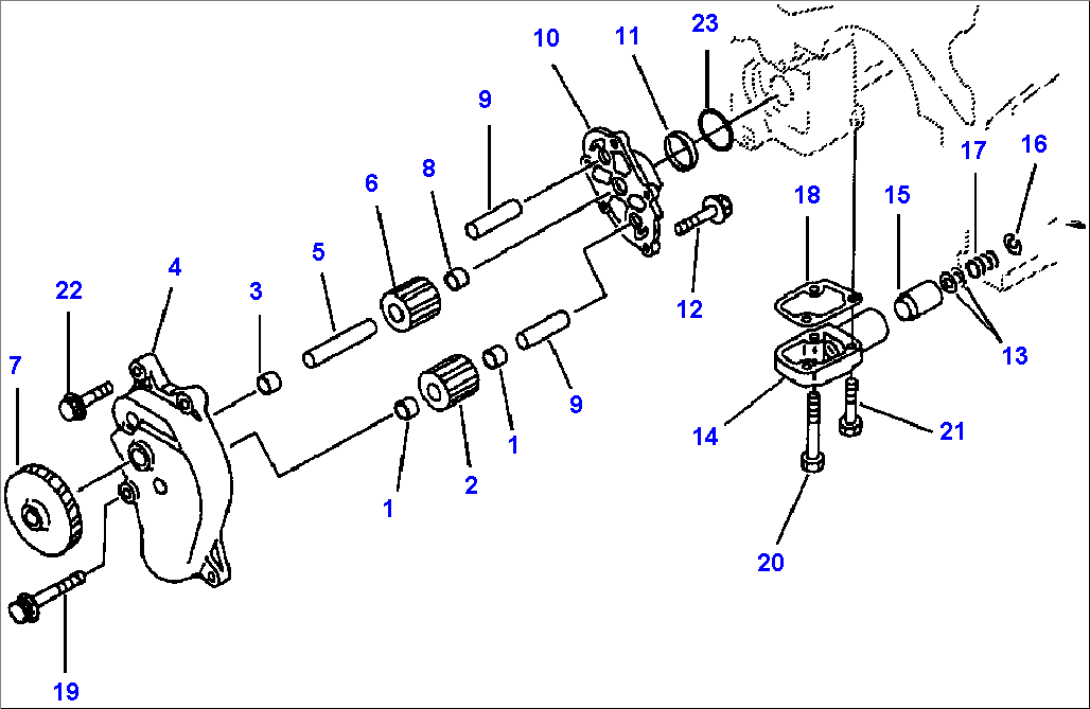

| Item | Part No. | Part Name | Qty | Serial No. |
| 6215-51-1500 | PUMP, LUBRICATING OIL | |||
| 6212-51-1250 | PUMP GEAR ASSEMBLY | |||
| 1 | (NSS) | BUSHING | ||
| 2 | (NSS) | GEAR, PUMP | ||
| 6215-51-2200 | PUMP BODY ASSEMBLY | |||
| 3 | (NSS) | BUSHING | ||
| 4 | (NSS) | BODY, PUMP | ||
| 6215-51-2300 | GEAR AND SHAFT | |||
| 5 | 6215-51-1310 | SHAFT, PUMP | ||
| 6 | 6212-51-1350 | GEAR, PUMP | ||
| 7 | 6215-51-1520 | GEAR, PUMP | ||
| 6215-51-2400 | COVER, PUMP | |||
| 8 | (NSS) | BUSHING | ||
| 9 | 6215-51-1530 | SHAFT, PUMP | ||
| 10 | (NSS) | COVER, PUMP | ||
| 11 | 6215-51-1550 | BUSHING | ||
| 12 | 01435-00820 | BOLT (M8-1.25x20) | ||
| 6215-51-1702 | VALVE, BYPASS | |||
| 13 | 11T-27-11190 | SHIM | ||
| 14 | 6215-51-1712 | BODY, BYPASS VALVE | ||
| 15 | 6215-51-1730 | PLUNGER, BYPASS VALVE | ||
| 16 | 6215-51-1740 | RETAINER, SPRING | ||
| 17 | 6215-51-1750 | SPRING, COMPRESSION | ||
| 18 | 6215-51-1780 | GASKET, BYPASS VALVE | ||
| 19 | 01437-01280 | BOLT (M12-2.00x80) | ||
| 20 | 6216-54-1240 | BOLT (M10-1.50x55) | ||
| 21 | 6216-24-8710 | BOLT (M10-1.50x30) | ||
| 22 | 01437-01245 | BOLT (M12-2.00x45) | ||
| 23 | 07000-E3050 | O-RING |
