| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 07281-00419 | CLAMP, HOSE | ||
| 2 | 6216-14-6920 | HOSE, PLAIN | ||
| 3 | 6215-61-7330 | CONNECTION, WATER TRANSFER | ||
| 4 | 6215-61-7340 | GASKET, TORQUE CONVERTER OIL COOLER | ||
| 5 | 01010-31235 | BOLT (M12-1.75x35) |
- Главная
- Каталог запчастей
- Самосвалы
- Hd785 5lc s/n a10224/a10228 a10315 (bfp42 05) (bepb010709)
- Engine
- Fig. a3120 a7a1 torque converter oil cooler connection
Поиск по каталогу

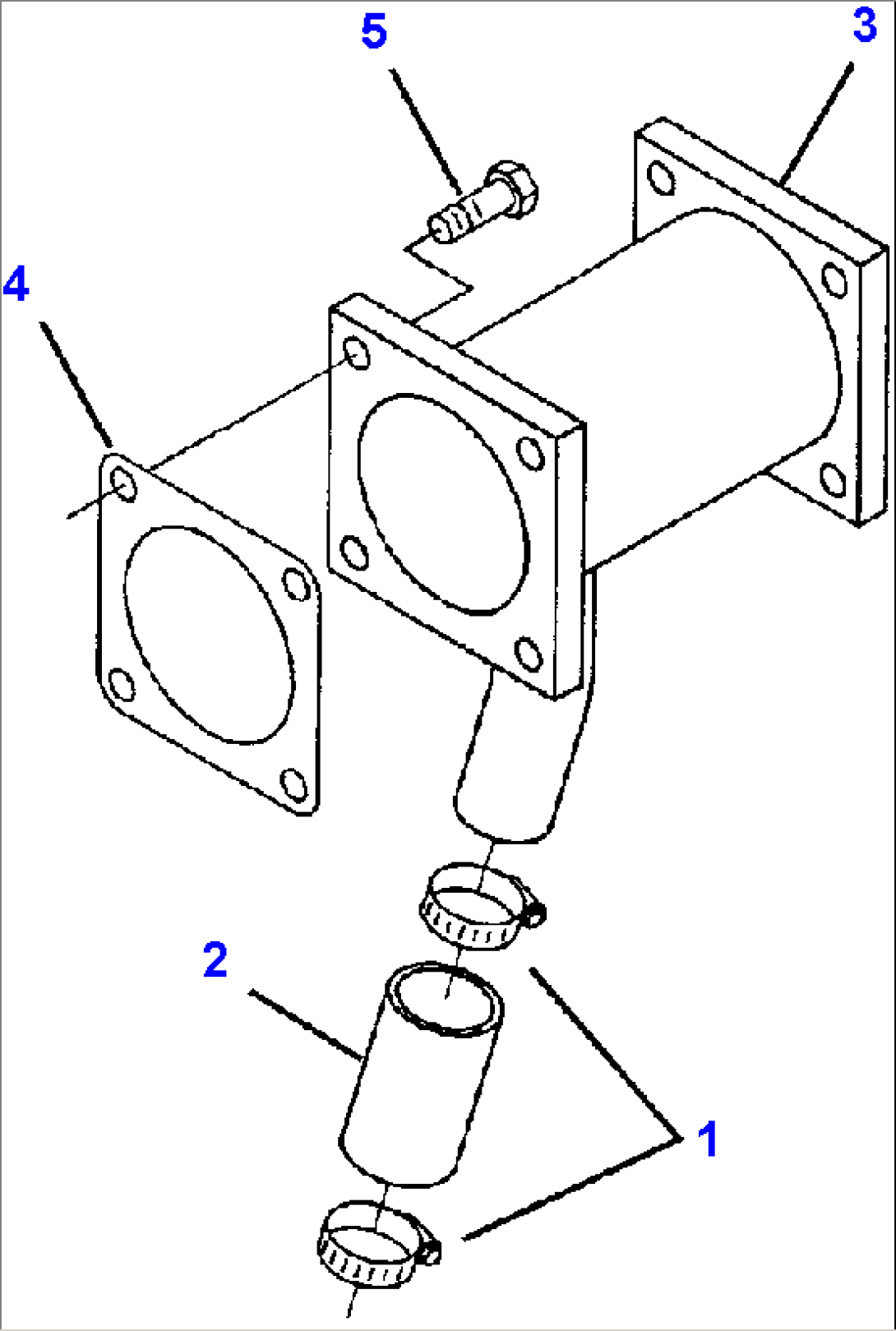

FIG. A3120-A7A1 TORQUE CONVERTER OIL COOLER CONNECTION
