| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | INJECTION PUMP ASSEMBLY (SEE FIG. A4010-B3T7) | |||
| 2 | 01437-01090 | BOLT | ||
| 3 | 01641-21016 | WASHER | ||
| 4 | 6151-71-7120 | TUBE | ||
| 5 | 07214-50710 | CONNECTOR | ||
| 6 | 6128-71-1932 | JOINT |
- Главная
- Каталог запчастей
- Бульдозеры
- D87e 2 s/n p090001 up
- Engine
- Fig. a4010 a3t7 fuel injection pump mounting
Поиск по каталогу

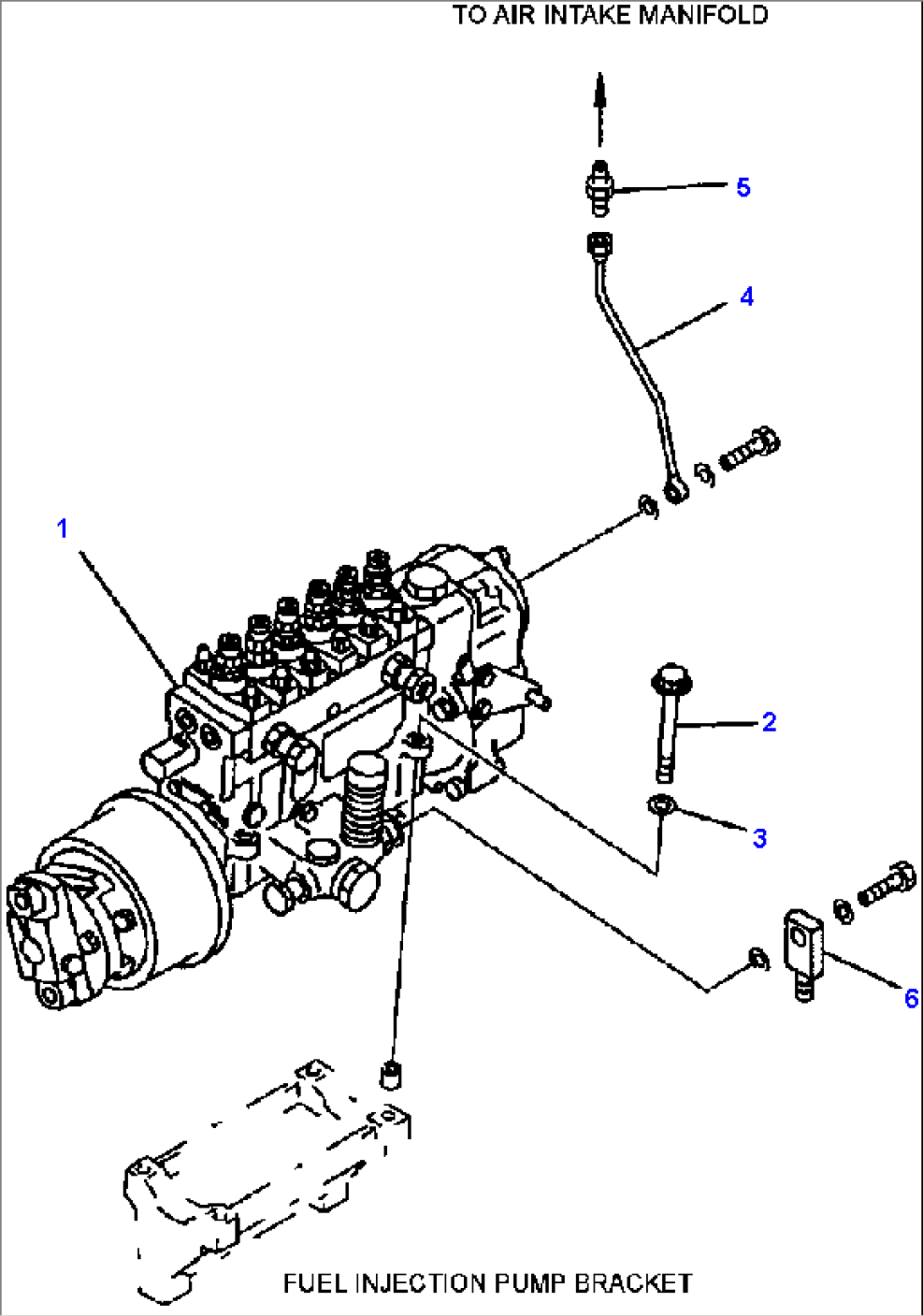

FIG. A4010-A3T7 FUEL INJECTION PUMP MOUNTING
