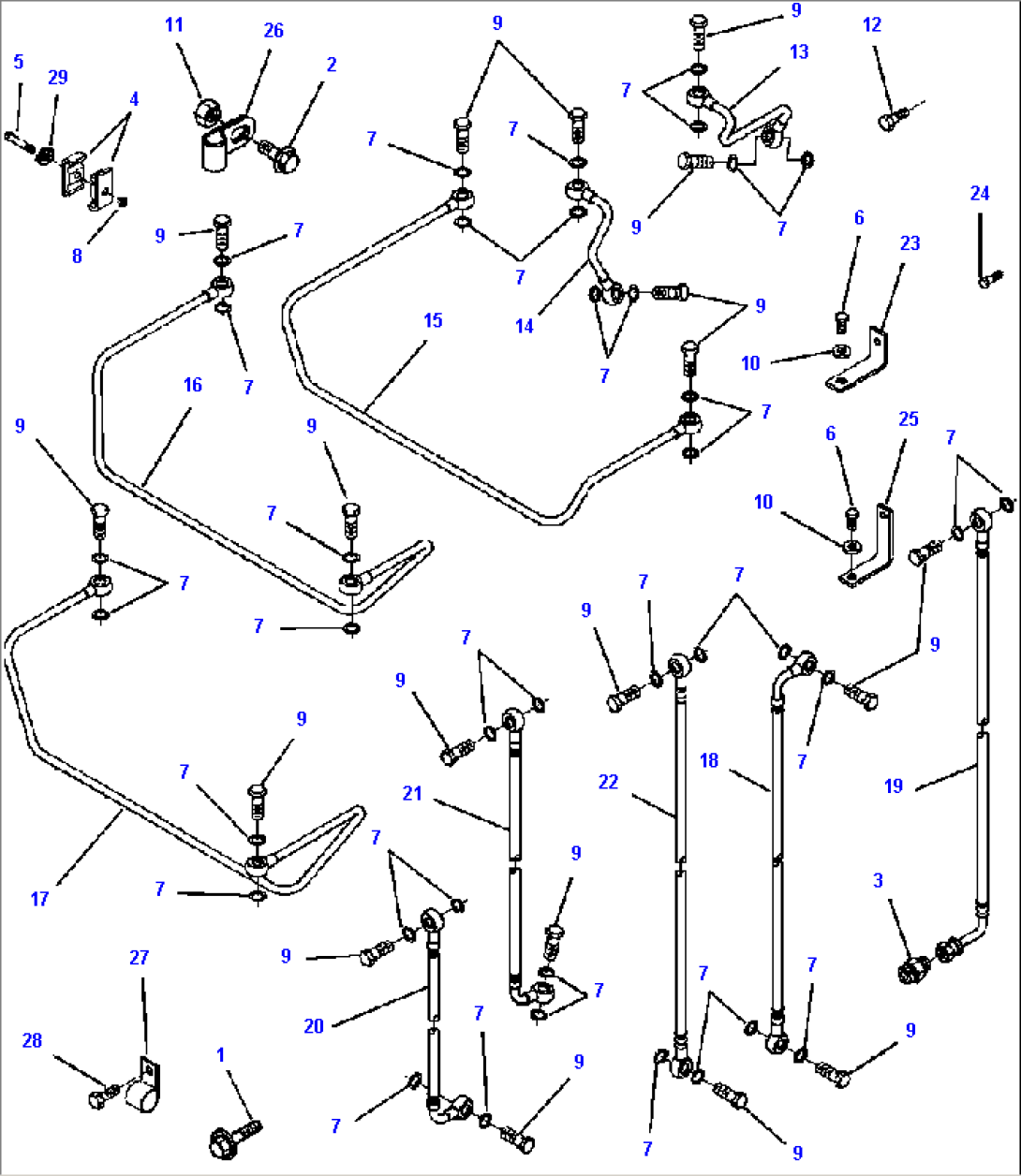

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 6216-71-6130 | BOLT (M10-1.50x25) | ||
| 2 | 01010-31020 | BOLT (M10-1.50x16) | ||
| 3 | 6216-74-6230 | UNION, MALE | ||
| 6216-74-6220 | SEAL, O-RING | |||
| 4 | 6216-74-6420 | CLAMP, TUBE | ||
| 5 | 01010-30840 | BOLT (M8-1.25x40) | ||
| 6 | 01010-30820 | BOLT (M10-1.25x40) | ||
| 7 | 6731-71-5880 | WASHER, SEALING (M14) | ||
| 8 | 01580-00806 | NUT, REGULAR HEXAGON (M8-1.25) | ||
| 9 | 07206-31014 | SCREW, BANJO CONNECTOR (M10) | ||
| 10 | 01641-20812 | WASHER, PLAIN (M8-1.25) | ||
| 11 | 01580-01008 | NUT, REGULAR HEXAGON (M10-1.50) | ||
| 12 | 01010-31030 | BOLT (M10-1.50x30) | ||
| 13 | 6216-71-5410 | TUBE, FUEL TRANSFER | ||
| 14 | 6216-71-5420 | TUBE, FUEL TRANSFER | ||
| 15 | 6216-71-5460 | TUBE, FUEL TRANSFER | ||
| 16 | 6216-71-5480 | TUBE, FUEL TRANSFER | ||
| 17 | 6216-71-5490 | TUBE, FUEL TRANSFER | ||
| 18 | 6216-74-7210 | HOSE, FLEXIBLE | ||
| 19 | 6216-74-7220 | HOSE, FLEXIBLE | ||
| 20 | 6216-74-7230 | HOSE, FLEXIBLE | ||
| 21 | 6216-74-7240 | HOSE, FLEXIBLE | ||
| 22 | 6216-74-6410 | HOSE, FLEXIBLE | ||
| 23 | 6216-71-592A | BRACE, HOSE | ||
| 24 | 01010-80845 | BOLT | ||
| 25 | 6354-71-5630 | BRACE, HOSE | ||
| 26 | 6735-71-8110 | CLIP | ||
| 27 | 6733-71-5610 | CLIP | ||
| 28 | 01010-31025 | BOLT (M10-1.50x25) | ||
| 29 | 01641-01016 | WASHER, PLAIN (M10) |
