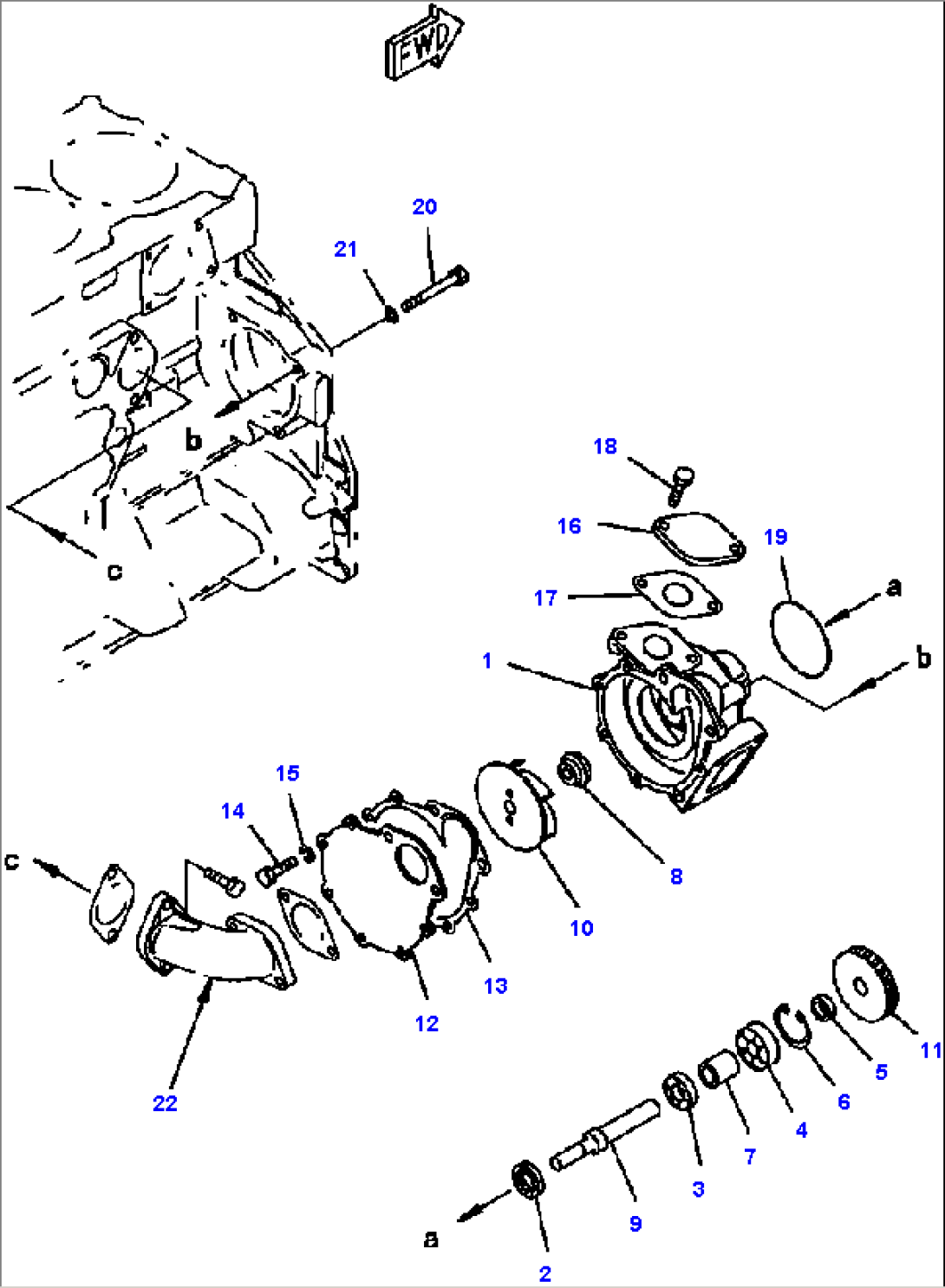

| Item | Part No. | Part Name | Qty | Serial No. |
| 6151-62-1102 | WATER PUMP ASSEMBLY | |||
| 1 | (NSS) | BODY | ||
| 2 | 6150-61-1510 | SEAL | ||
| 3 | 06030-06004 | BEARING | ||
| 4 | 06030-06304 | BEARING | ||
| 5 | 6150-61-1350 | SPACER | ||
| 6 | 04065-05220 | RING, SNAP | ||
| 7 | 6151-61-1360 | SPACER | ||
| 8 | 6211-61-1530 | SEAL, WATER | ||
| 9 | 6151-62-1310 | SHAFT | ||
| 10 | 6151-61-1210 | IMPELLER | ||
| 11 | 6150-61-1410 | GEAR | ||
| 12 | 6151-61-1151 | COVER | ||
| 13 | 6151-61-1162 | GASKET | ||
| 14 | 01010-80816 | BOLT | ||
| 15 | 01602-20825 | WASHER | ||
| 16 | 6151-62-6510 | PLATE | ||
| 17 | 6150-61-1821 | GASKET | ||
| 18 | 01010-81025 | BOLT | ||
| 19 | 07000-62115 | O-RING | ||
| 20 | 01011-81010 | BOLT | ||
| 21 | 01640-21016 | WASHER | ||
| 22 | CONNECTOR (SEE FIG. A5010-B3J3) | |||
| F1 THESE ITEMS ARE ALSO INCLUDED IN WATER PUMP GASKET KIT. REFER TO FIG. A8134-F3A4. | ||||
