| Item | Part No. | Part Name | Qty | Serial No. |

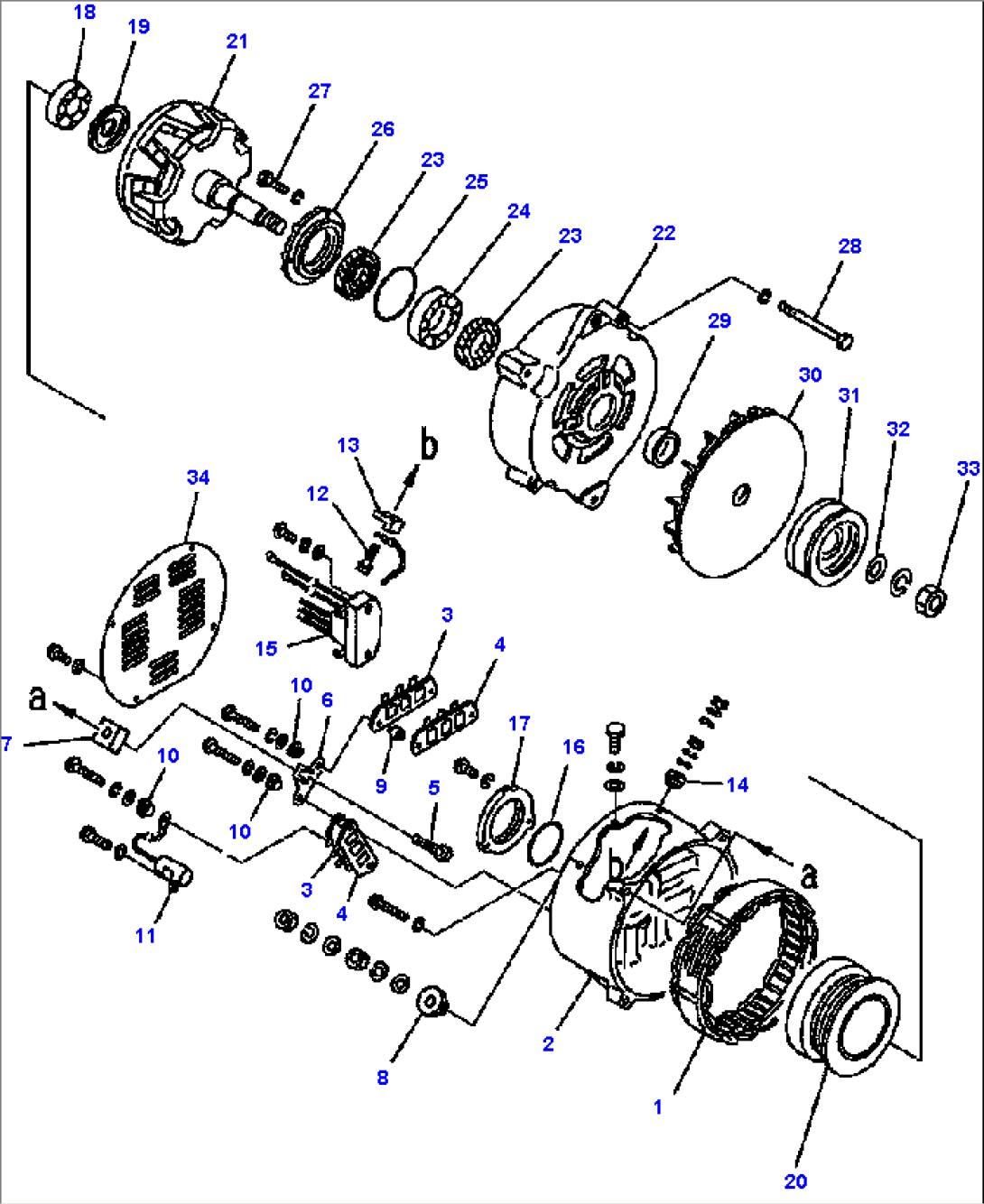

| 600-825-7110 | ALTERNATOR (75A) | |||
| 1 | SD1211-40300X0 | STATOR | ||
| SD1230-18802X0 | REAR BRACKET | |||
| 2 | SD2240-19500X0 | BRACKET, REAR | ||
| 3 | SD1235-06400X0 | HEAT SINK(+) | ||
| 4 | SD1235-06410X0 | HEAT SINK(-) | ||
| 5 | SD5010-26400X0 | BOLT | ||
| 6 | SD3220-38800X0 | SUPPORT | ||
| 7 | SD4215-04000X0 | INSULATOR | ||
| 8 | SD4041-07500X0 | BUSHING | ||
| 9 | SD4215-03900X0 | INSULATOR | ||
| 10 | SD4041-00900X0 | BUSHING | ||
| 11 | SD6060-11920X0 | CONDENSER | ||
| 12 | SD8140-0503010 | BOLT | ||
| 13 | SD4215-01300X0 | INSULATOR | ||
| 14 | SD4041-05700X0 | BUSHING | ||
| 15 | SD1510-02910X0 | REGULATOR | ||
| 16 | SD4142-01000X0 | O-RING | ||
| 17 | SD2202-01401X0 | COVER | ||
| 18 | SD6206-00730X0 | BEARING, BALL | ||
| 19 | SD3409-00300X0 | COVER | ||
| 20 | SD1251-00700X0 | COIL | ||
| 21 | SD1221-15100X0 | ROTOR | ||
| SD1240-07200X0 | FRONT BRACKET | |||
| 22 | SD2242-08600X0 | BRACKET, FRONT | ||
| 23 | SD6410-02000X0 | SEAL, OIL | ||
| 24 | SD6206-00320X0 | BEARING, BALL | ||
| 25 | SD4142-00900X0 | O-RING | ||
| 26 | SD2202-02200X0 | COVER | ||
| 27 | SD5010-21500X0 | BOLT | ||
| 28 | SD5010-04750X0 | BOLT | ||
| 29 | SD3600-17300X0 | COLLAR | ||
| 30 | SD1982-03200X0 | FAN | ||
| 31 | SD2080-28900X0 | PULLEY | ||
| 32 | SD3000-07800X0 | WASHER | ||
| 33 | SD8264-1830010 | NUT | ||
| 34 | SD3002-04600X0 | COVER |
