| Item | Part No. | Part Name | Qty | Serial No. |

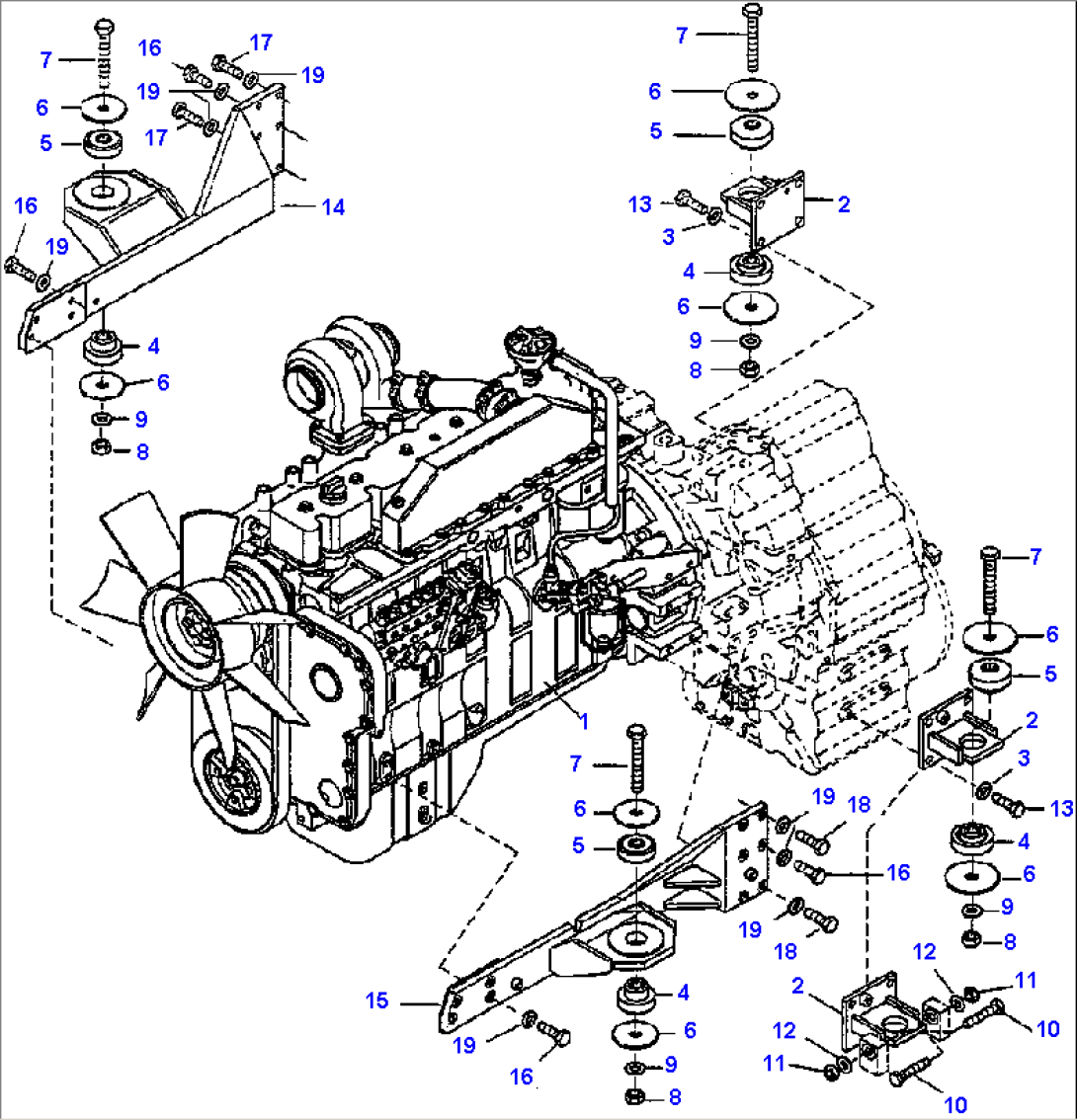

| 1 | ENGINE ASSEMBLY (SEE FIG. A9101-A3A9) | A30001-UP- | ||
| 2 | 421-01-21120 | BRACKET | A30001-UP- | |
| 3 | 01643-31645 | WASHER | A30001-UP- | |
| 424-01-11310 | CUSHION ASSEMBLY | A30001-UP- | ||
| 4 | (NSS) | CUSHION | A30001-UP- | |
| 5 | (NSS) | CUSHION | A30001-UP- | |
| 6 | 424-01-11220 | WASHER | A30001-UP- | |
| 7 | 01011-62440 | BOLT | A30001-UP- | |
| 8 | 01580-02419 | NUT | A30001-UP- | |
| 9 | 01643-32460 | WASHER | A30001-UP- | |
| 10 | 01016-52080 | BOLT | A30001-UP- | |
| 11 | 01580-12016 | NUT | A30001-UP- | |
| 12 | 01643-32060 | WASHER | A30001-UP- | |
| 13 | 01010-81650 | BOLT | A30001-UP- | |
| 14 | 424-01-21211 | SUPPORT L.H. | A30001-UP- | |
| 15 | 424-01-21221 | SUPPORT R.H. | A30001-UP- | |
| 16 | 01010-E1245 | BOLT | A30001-UP- | |
| 17 | 01010-E1240 | BOLT | A30001-UP- | |
| 18 | 01010-E1250 | BOLT | A30001-UP- | |
| 19 | 01643-31232 | WASHER | A30001-UP- |
