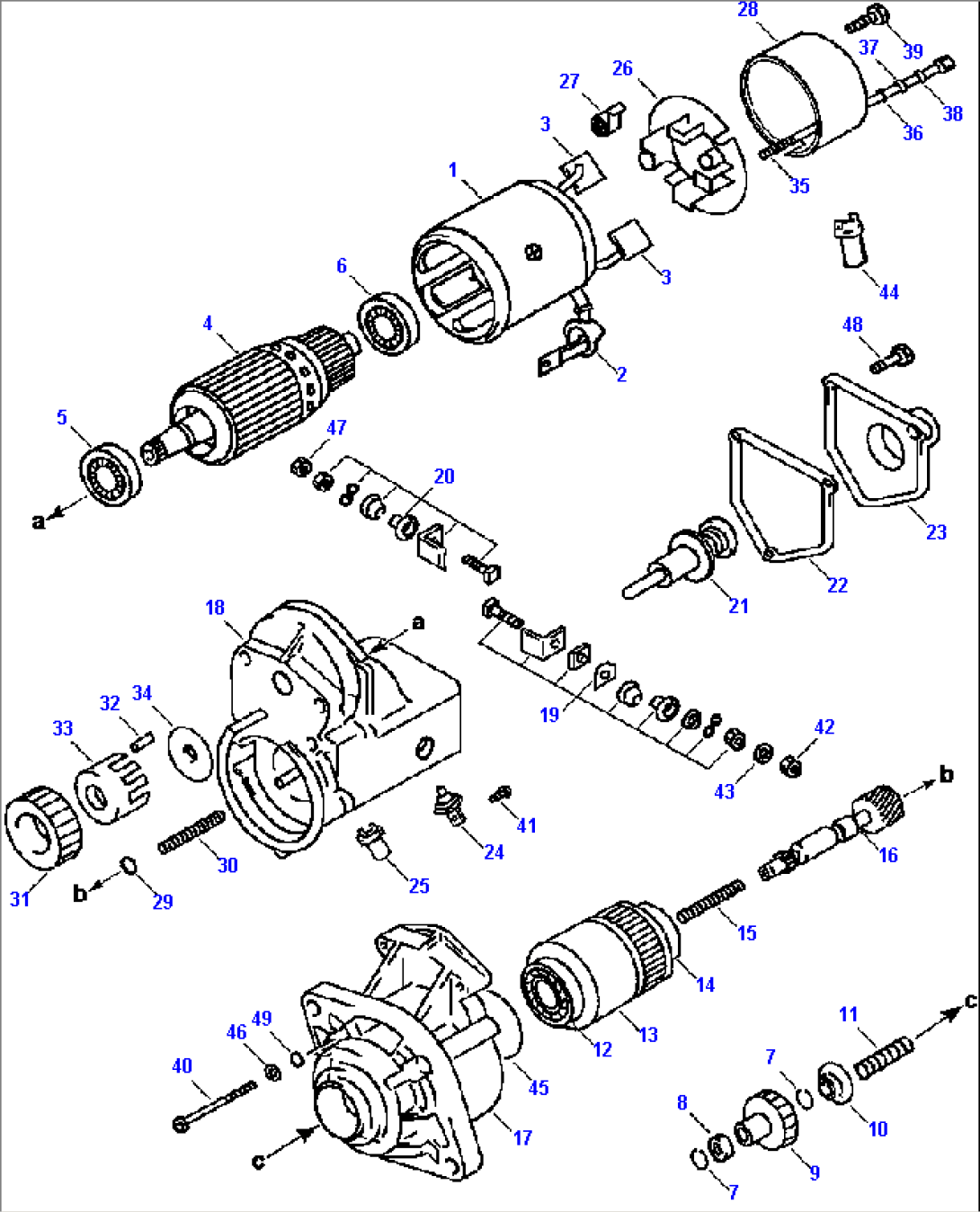

| Item | Part No. | Part Name | Qty | Serial No. |
| 1308 853 H91 | MOTOR ASSEMBLY, STARTING | A80001-UP- | ||
| 1308 854 H1 | HOUSING ASSEMBLY WITH FIELD COIL | A80001-UP- | ||
| 1 | (NSS) | HOUSING AND FIELD COIL | A80001-UP- | |
| 2 | 1308 855 H1 | BOOT, TERMINAL | A80001-UP- | |
| 3 | 1308 856 H1 | KIT, STARTER | A80001-UP- | |
| 1308 857 H1 | ARMATURE ASSEMBLY | A80001-UP- | ||
| 4 | (NSS) | ARMATURE | A80001-UP- | |
| 5 | 1308 858 H1 | BEARING, BALL | A80001-UP- | |
| 6 | 1308 859 H1 | BEARING, BALL | A80001-UP- | |
| 6 | 1308 860 H1 | BEARING, BALL | A80001-UP- | |
| 6 | 1308 861 H1 | BEARING, BALL | A80001-UP- | |
| 1308 862 H91 | CLUTCH ASSEMBLY | A80001-UP- | ||
| 1308 863 H1 | KIT, PINION GEAR | A80001-UP- | ||
| 7 | (NSS) | RING, SNAP | A80001-UP- | |
| 8 | (NSS) | SPACER, GEAR | A80001-UP- | |
| 9 | (NSS) | GEAR, PINION | A80001-UP- | |
| 10 | (NSS) | COLLAR, GEAR | A80001-UP- | |
| 11 | (NSS) | SPRING, TENSION | A80001-UP- | |
| 1308 953 H91 | CLUTCH ASSEMBLY | A80001-UP- | ||
| 12 | 1308 864 H1 | BEARING, BALL | A80001-UP- | |
| 13 | (NSS) | CLUTCH | A80001-UP- | |
| 14 | 1308 865 H1 | BEARING, BALL | A80001-UP- | |
| 15 | 1308 866 H1 | SPRING, TENSION | A80001-UP- | |
| 16 | 1308 867 H1 | SHART, PINION | A80001-UP- | |
| 17 | 1308 868 H1 | HOUSING, PINION | A80001-UP- | |
| 1308 869 H1 | HOUSING ASSEMBLY, MAG SWITCH | A80001-UP- | ||
| 18 | (NSS) | HOUSING, SWITCH | A80001-UP- | |
| 19 | 1309 007 H1 | KIT, TERMINAL | A80001-UP- | |
| 20 | 1308 870 H1 | KIT, TERMINAL | A80001-UP- | |
| 21 | 1308 871 H1 | PLUNGER | A80001-UP- | |
| 22 | 1308 872 H1 | GASKET, COVER | A80001-UP- | |
| 23 | 1308 873 H1 | COVER, HOUSING | A80001-UP- | |
| 24 | 1308 874 H1 | BOLT, TERMINAL | A80001-UP- | |
| 25 | 1308 875 H1 | BUSHING, DRAIN | A80001-UP- | |
| 1308 876 H1 | HOLDER ASSY, BRUSH | A80001-UP- | ||
| 26 | (NSS) | HOLDER, BRUSH | A80001-UP- | |
| 27 | 1308 877 H1 | SPRING, BRUSH | A80001-UP- | |
| 28 | 1308 878 H1 | FRAME, END | A80001-UP- | |
| 29 | 1308 879 H1 | BALL, STEEL | A80001-UP- | |
| 30 | 1308 880 H1 | SPRING, TENSION | A80001-UP- | |
| 31 | 1308 881 H1 | GEAR, PINION | A80001-UP- | |
| 32 | 1308 882 H1 | ROLLER, CLUTCH | A80001-UP- | |
| 33 | 1308 883 H1 | CAGE, RETAINER | A80001-UP- | |
| 34 | 1308 884 H1 | RETAINER, SNAP | A80001-UP- | |
| 35 | 1308 885 H1 | BOLT, THRU | A80001-UP- | |
| 36 | 1308 886 H1 | O-RING | A80001-UP- | |
| 37 | 1308 887 H1 | WASHER, FLAT | A80001-UP- | |
| 38 | 1308 888 H1 | WASHER, SPRING | A80001-UP- | |
| 39 | 1308 889 H1 | SCREW AND WASHER | A80001-UP- | |
| 40 | 1308 890 H1 | SCREW, MOUNTING | A80001-UP- | |
| 41 | 1308 892 H1 | SCREW AND WASHER | A80001-UP- | |
| 42 | 1308 893 H1 | NUT, HEX | A80001-UP- | |
| 43 | 1308 894 H1 | WASHER, SPRING | A80001-UP- | |
| 44 | 1308 895 H1 | COVER | A80001-UP- | |
| 45 | 1308 896 H1 | SEAL, SECTION | A80001-UP- | |
| 46 | 1308 897 H1 | WASHER, FLAT | A80001-UP- | |
| 47 | 1308 898 H1 | NUT, HEX | A80001-UP- | |
| 48 | 1308 960 H1 | BOLT AND WASHER | A80001-UP- | |
| 49 | 1308 891 H1 | O-RING | A80001-UP- |
