| Item | Part No. | Part Name | Qty | Serial No. |

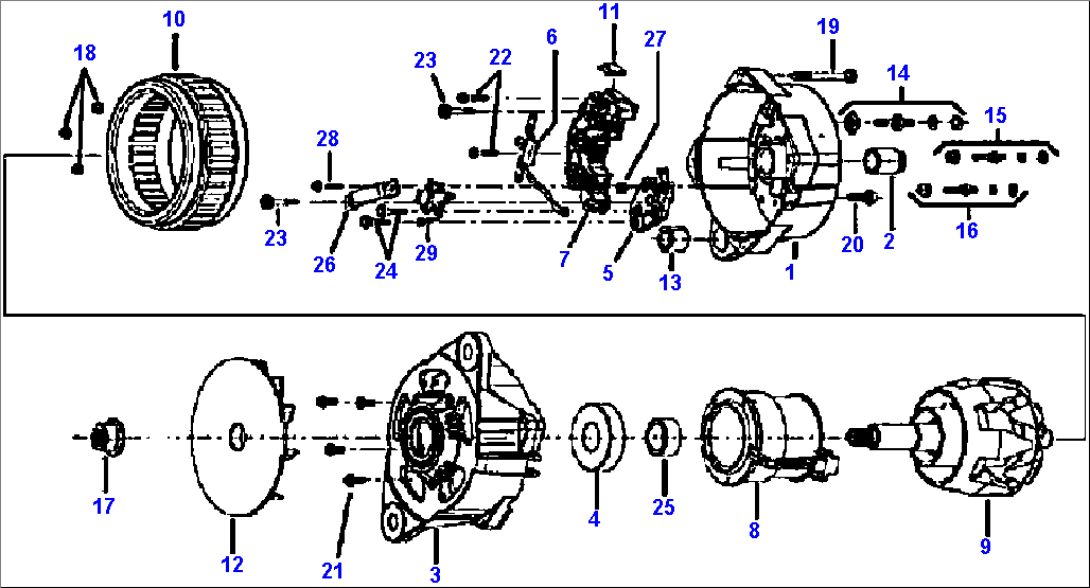

| 416-06-A1020 | ALTERNATOR ASSEMBLY | A70311-UP- | ||
| 1 | 1317 214 H1 | HOUSING - RECTIFIER | A70311-UP- | |
| 2 | 1440 073 H1 | ROLLER BEARING | A70311-UP- | |
| 3 | 1316 585 H1 | FRAME-DE | A70311-UP- | |
| 4 | 1213 268 H1 | BALL BEARING ASSEMBLY | A70311-UP- | |
| 5 | 1218 115 H1 | REGULATOR | A70311-UP- | |
| 6 | 1440 075 H1 | DIODE TRIO | A70311-UP- | |
| 7 | 1316 594 H1 | RECTIFIER ASSEMBLY | A70311-UP- | |
| 8 | 1440 076 H1 | FIELD COIL | A70311-UP- | |
| 9 | 1440 077 H1 | ROTOR ASSEMBLY | A70311-UP- | |
| 10 | 1316 592 H1 | STATOR ASSEMBLY | A70311-UP- | |
| 11 | 1307 334 H1 | CAPACITOR | A70311-UP- | |
| 12 | 1307 576 H1 | FAN | A70311-UP- | |
| 13 | 1213 242 H1 | BUSHING | A70311-UP- | |
| 14 | 1317 218 H1 | TERMINAL PACKAGE - BATTERY | A70311-UP- | |
| 15 | 1317 220 H1 | RELAY TERMINAL AND LEAD ASSEMBLY | A70311-UP- | |
| 16 | 1317 219 H1 | TERMINAL PACKAGE - INDICATOR LIGHT | A70311-UP- | |
| 17 | VE8211 | NUT SHAFT | A70311-UP- | |
| 18 | 120 622 | NUT | A70311-UP- | |
| 19 | 1316 288 H1 | BOLT, THRU | A70311-UP- | |
| 20 | 1307 578 H1 | SCREW | A70311-UP- | |
| 21 | 1316 584 H1 | SCREW | A70311-UP- | |
| 22 | 1268 365 H1 | SCREW | A70311-UP- | |
| 23 | 1317 216 H1 | SCREW | A70311-UP- | |
| 24 | 1268 367 H1 | SCREW | A70311-UP- | |
| 25 | 1316 586 H1 | COLLAR | A70311-UP- | |
| 26 | 1316 593 H1 | CONNECTOR | A70311-UP- | |
| 27 | 1218 126 H1 | NUT | A70311-UP- | |
| 28 | 1268 365 H1 | SCREW | A70311-UP- | |
| 29 | 1440 078 H1 | CONNECTOR. | A70311-UP- |
