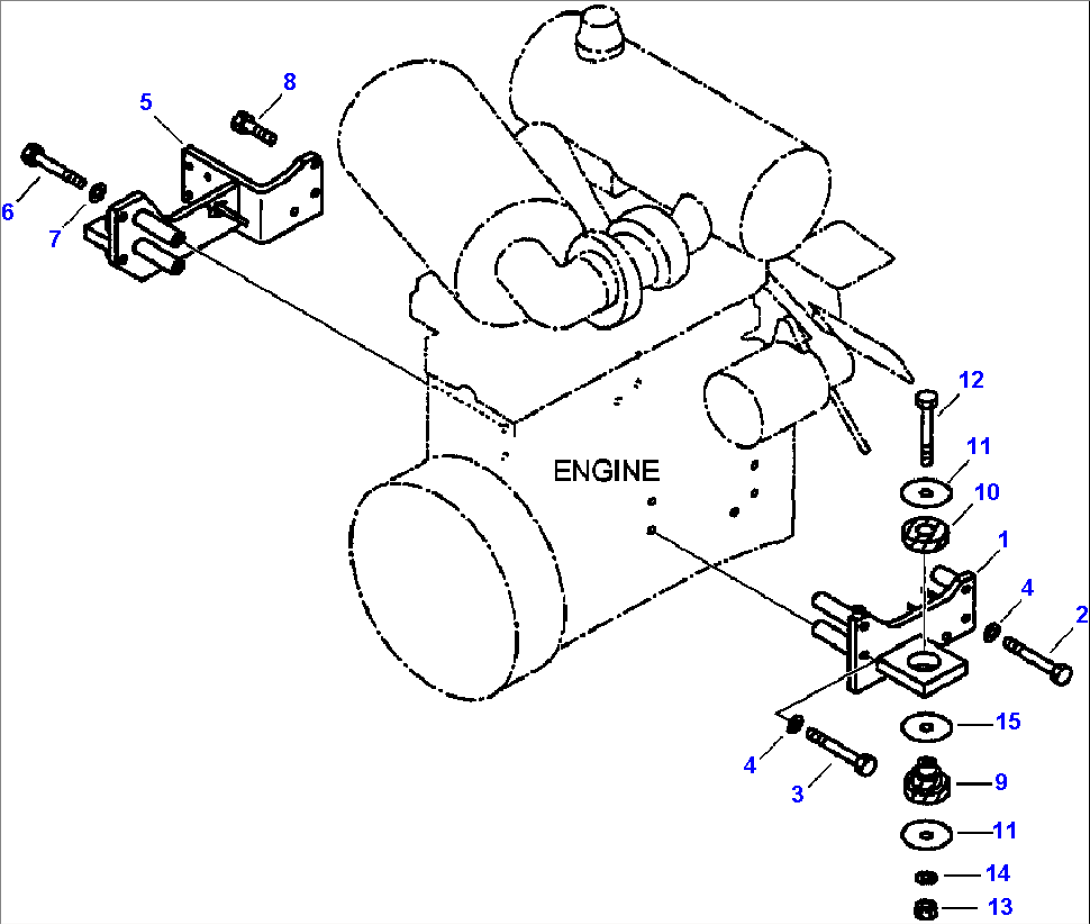

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 418-01-A1810 | BRACKET, L.H. | A70001-UP- | |
| 2 | 01010-81295 | BOLT | A70001-UP- | |
| 3 | 01011-81235 | BOLT | A70001-UP- | |
| 4 | 01643-31232 | WASHER | A70001-UP- | |
| 5 | 418-01-21151 | BRACKET, R.H. | A70001-A70230- | |
| OR | ||||
| 5 | 418-01-A1690 | BRACKET, R.H. | A70231-UP- | |
| 6 | 01011-81235 | BOLT | A70001-UP- | |
| 7 | 01643-31232 | WASHER | A70001-A70230- | |
| OR | ||||
| 7 | 01643-31232 | WASHER | A70231-UP- | |
| 8 | 01435-01240 | BOLT | A70001-A70230- | |
| OR | ||||
| 8 | 01010-81295 | BOLT | A70231-UP- | |
| 418-01-11111 | CUSHION ASSEMBLY | A70001-UP- | ||
| 9 | (NSS) | CUSHION | A70001-UP- | |
| 10 | (NSS) | CUSHION | A70001-UP- | |
| 11 | 419-01-11162 | WASHER | A70001-UP- | |
| 12 | 01011-62230 | BOLT | A70001-UP- | |
| 13 | 01580-02218 | NUT | A70001-UP- | |
| 14 | 01643-32260 | WASHER | A70001-UP- | |
| 15 | 418-01-A1820 | SPACER | A70001-UP- | |
| N/I | 04434-52212 | CLIP, HOSE | A70001-UP- | |
| F1 - USE WITH BRACKET P/N 418-01-21151. | ||||
