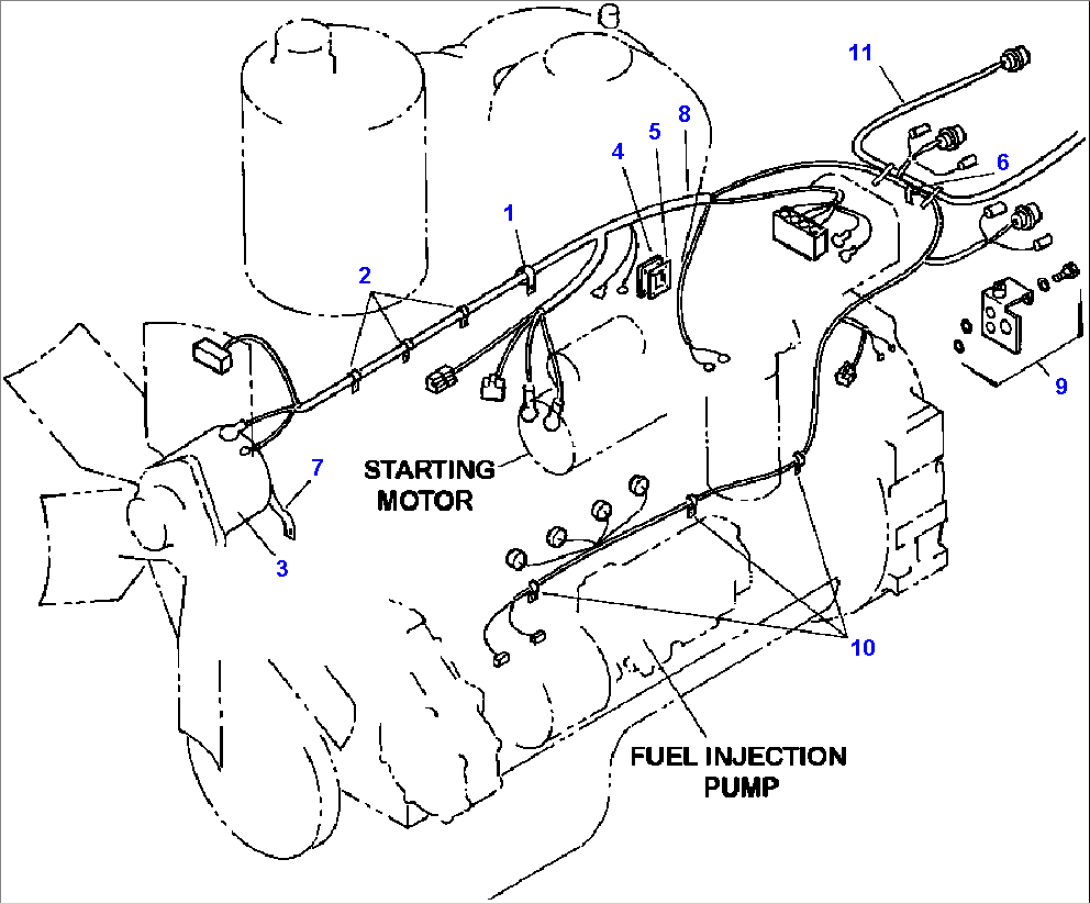

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 362 121 R1 | CLIP | | P090001- |
| 2 | 267 788 R1 | CLIP | | P090001- |
| 3 | | ALTERNATOR (50A) (SEE FIG. A6010-B3S4) | | P090001- |
| 4 | 1315 326 H1 | COVER | | P090001- |
| 5 | 6210-21-1971 | GASKET | | P090001- |
| 6 | 622 963 C1 | CLIP | | P090001- |
| 7 | 1500 809 H1 | ELEMENT, STRAP TIE | | P090001- |
| 935 522 C1 | STRAP, TIE | | P090001- |
| 8 | 1500 329 H91 | HARNESS, ENGINE | | P090001- |
| 9 | 1500 810 H91 | BRACKET, CONNECTOR MOUNTING | | P090001- |
| 24 838 R1 | BOLT, MOUNTING - 3/8NCx1/2 | | P090001- |
| 25 534 R1 | WASHER, HARD - 3/8 | | P090001- |
| 63 323 D | GROMMET | | P090001- |
| 10 | 363 444 R1 | CLAMP | | P090001- |
| 11 | | HARNESS (SEE FIG. E0200-02A0) | | P090001- |
