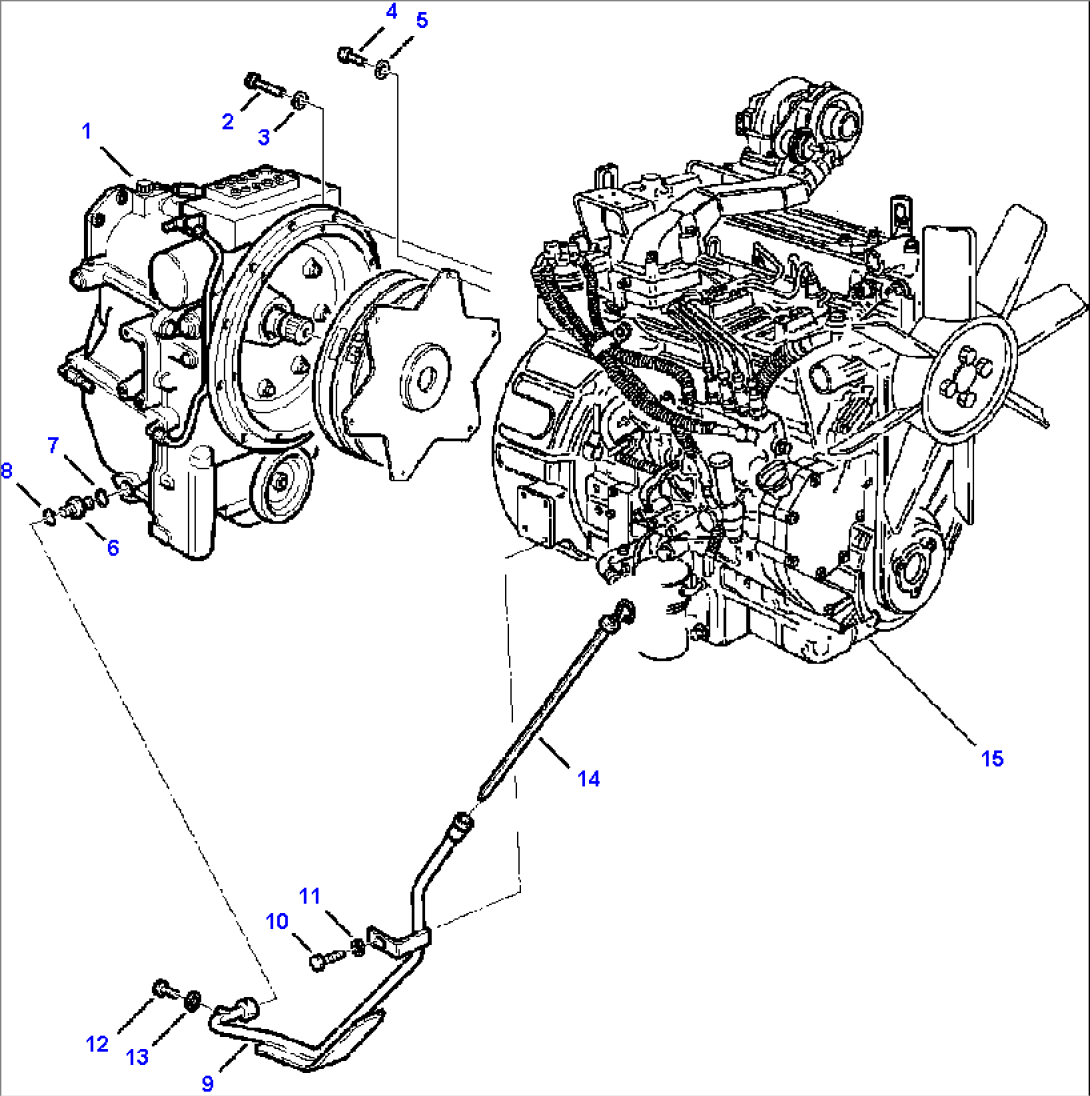

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | TRANSMISSION (SEE FIG. F3220-01A0) | A90002-A90013- | ||
| 2 | 801015110 | BOLT | A90002-A90013- | |
| 3 | 802170002 | WASHER | A90002-A90013- | |
| 4 | 801015086 | BOLT | A90002-A90013- | |
| 5 | 802170001 | WASHER | A90002-A90013- | |
| 6 | 312607714 | UNION | A90002-A90013- | |
| 7 | 855021121 | O-RING | A90002-A90013- | |
| 8 | 855670009 | O-RING | A90002-A90013- | |
| 9 | 312607111 | PIPE, OIL LEVEL | A90002-A90013- | |
| 10 | 801015134 | BOLT | A90002-A90013- | |
| 11 | 802170003 | WASHER | A90002-A90013- | |
| 12 | 500365753 | PLUG | A90002-A90013- | |
| 13 | 855150054 | GASKET | A90002-A90013- | |
| 14 | 312607085 | DIPSTICK, OIL | A90002-A90013- | |
| 15 | TIER I ENGINE (SEE FIG. A0100-01A0) | A90002-A90013- |
