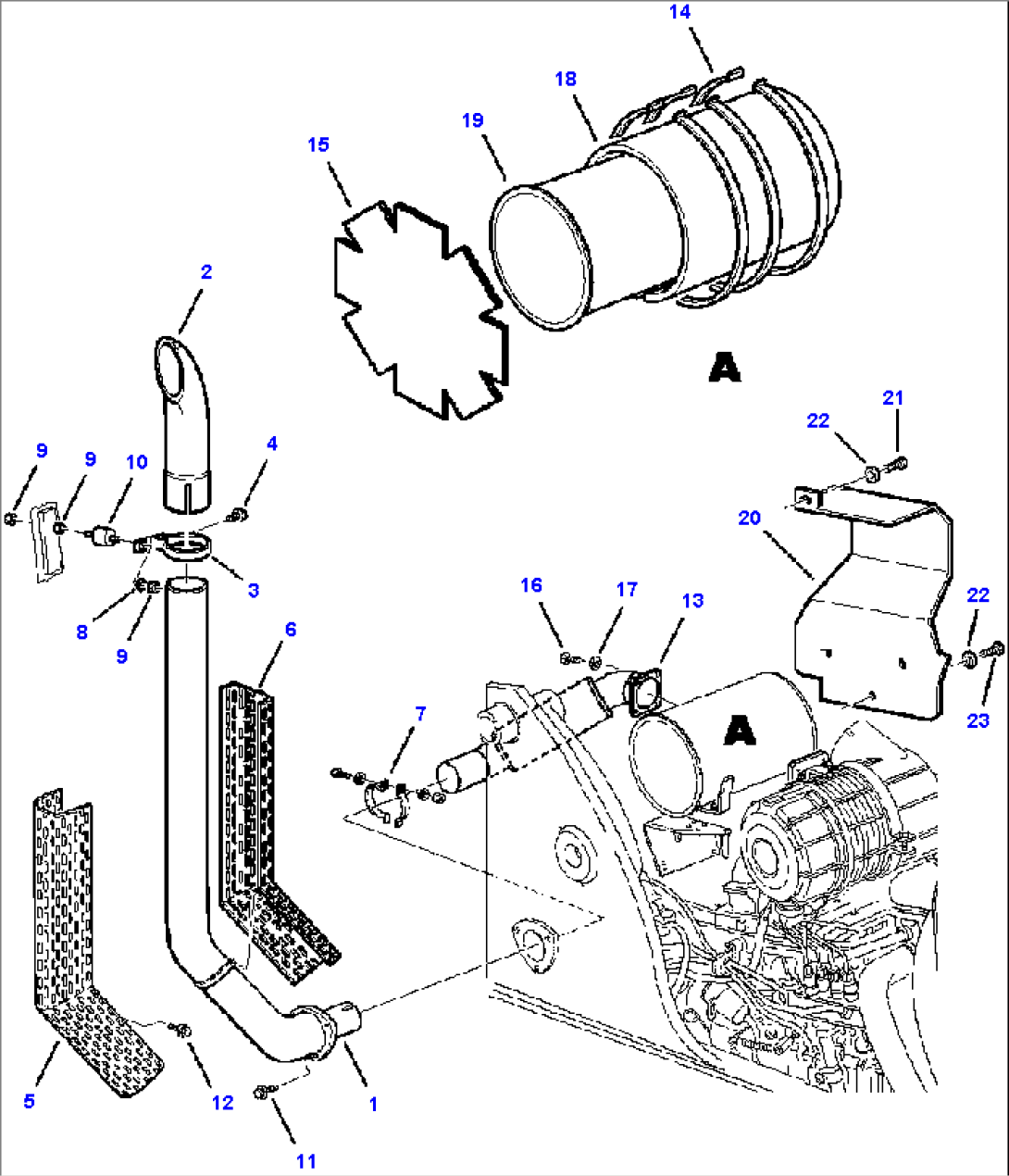

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 312607055 | TUBE, MUFFLER | A60029-- | |
| 2 | 312607680 | TUBE, EXHAUST | A60029-- | |
| 3 | 312607106 | CLAMP | A60029-- | |
| 4 | 01024-80825 | BOLT, SEMS | A60029-- | |
| 5 | 312607075 | PROTECTION, OUTER | A60029-- | |
| 6 | 312607088 | PROTECTION, INNER | A60029-- | |
| 7 | 802670075 | CLAMP | A60029-- | |
| 8 | 01643-30823 | WASHER | A60029-- | |
| 9 | 01580-10806 | NUT | A60029-- | |
| 10 | 808001043 | DAMPER | A60029-- | |
| 11 | 01024-81030 | BOLT, SEMS | A60029-- | |
| 12 | 01024-81020 | BOLT, SEMS | A60029-- | |
| 13 | 312607053 | TUBE, MUFFLER | A60029-- | |
| 14 | 312607843 | PROTECTION, MUFFLER | A60029-- | |
| 15 | 312607676 | PROTECTION, MUFFLER END | A60029-- | |
| 16 | 01010-80825 | BOLT | A60029-- | |
| 17 | 01643-30823 | WASHER | A60029-- | |
| 18 | 885190010 | STRAP, TIE | A60029-- | |
| 19 | MUFFLER (SEE FIG. A0106-01A0) | A60029-A60048- | ||
| MUFFLER (SEE FIG. A0106-01A1) | A60049-- | |||
| 20 | 312607156 | SHIELD, HEAT | A60029-- | |
| 21 | 801015547 | BOLT, UPPER | A60029-- | |
| 22 | 802170001 | WASHER | A60029-- | |
| 23 | 801015546 | BOLT, LOWER | A60029-- |
