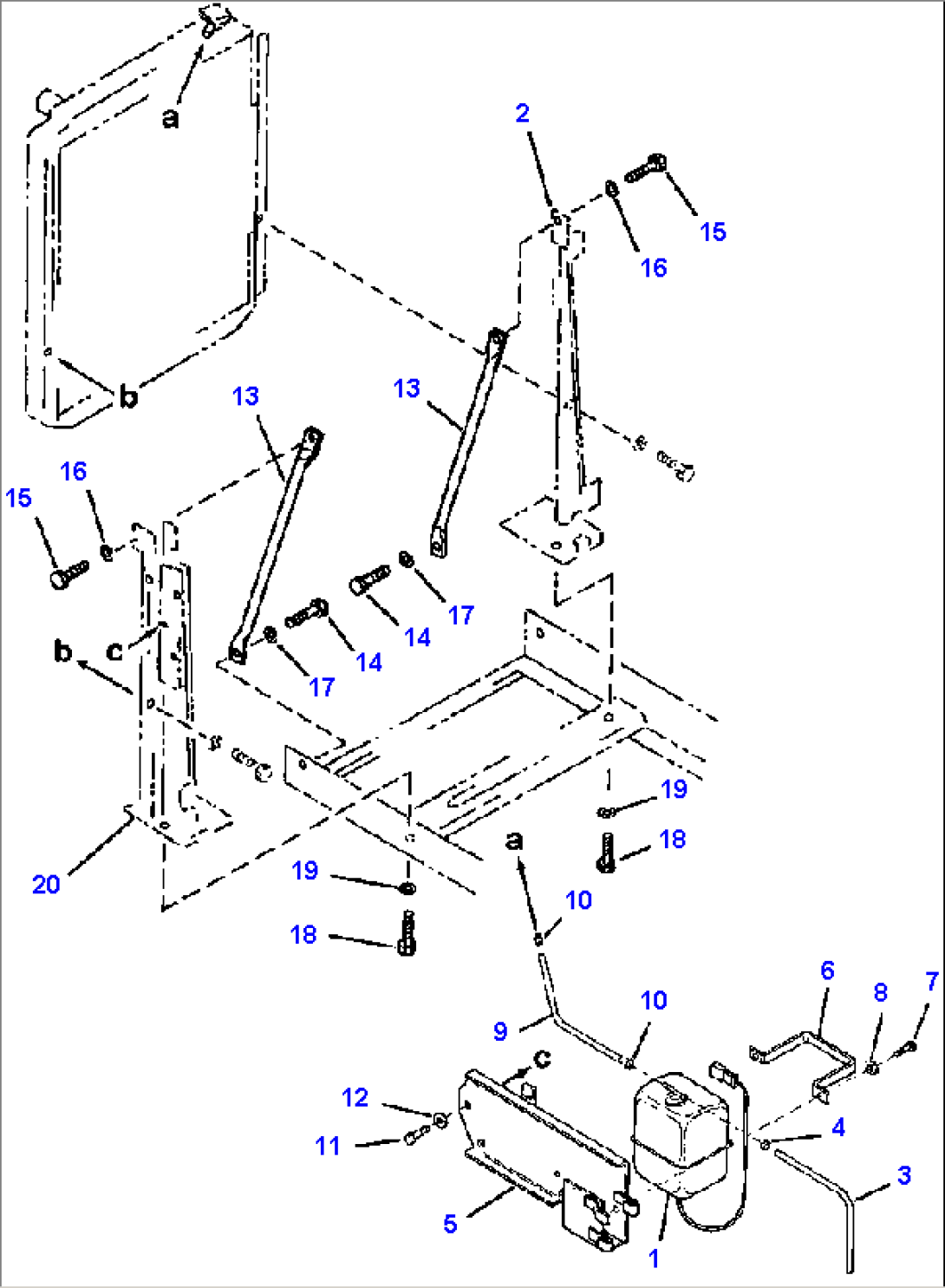

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | TANK (SEE FIG. C0100-03A1) | A83001-- | ||
| 2 | BRACKET, FRONT (SEE FIG. C0100-01A0) | A83001-- | ||
| 3 | 20Y-03-21450 | HOSE | A83001-- | |
| 4 | 206-03-43340 | CLIP | A83001-- | |
| 5 | 20Y-03-21252 | BRACKET | A83001-- | |
| 6 | 203-03-56650 | BRACKET | A83001-- | |
| 7 | 01010-80820 | BOLT | A83001-- | |
| 8 | 01643-30823 | WASHER | A83001-- | |
| 9 | 20Y-03-21460 | HOSE | A83001-- | |
| 10 | 206-03-43340 | CLIP | A83001-- | |
| 11 | 01010-81020 | BOLT | A83001-- | |
| 12 | 01643-31032 | WASHER | A83001-- | |
| 13 | 20Y-03-K1260 | STAY | A83001-- | |
| 14 | 01010-81635 | BOLT | A83001-- | |
| 15 | 01010-81635 | BOLT | A83001-- | |
| 16 | 01643-31645 | WASHER | A83001-- | |
| 17 | 21T-54-16150 | WASHER | A83001-- | |
| 18 | 01016-51250 | BOLT | A83001-- | |
| 19 | 01643-31232 | WASHER | A83001-- | |
| 20 | BRACKET, REAR (SEE FIG. C0100-01A0) | A83001-- |
