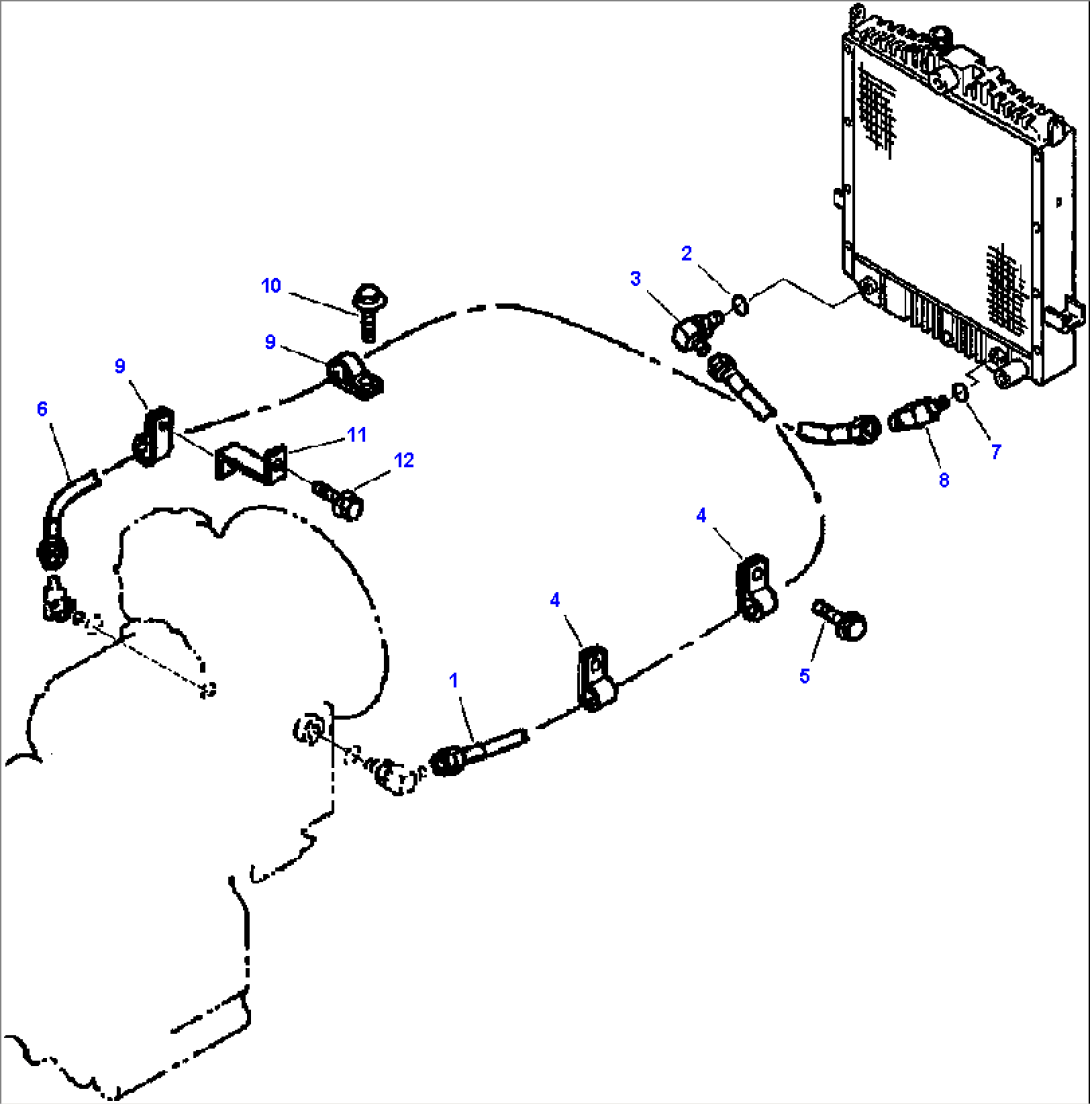

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 07102-21017 | HOSE | A70001-UP- | |
| 2 | 07002-13334 | O-RING | A70001-UP- | |
| 3 | 07236-11034 | ELBOW | A70001-UP- | |
| 4 | 281-01-13180 | CLIP | A70001-UP- | |
| 5 | 01435-01016 | BOLT | A70001-UP- | |
| 6 | 07102-21018 | HOSE | A70001-UP- | |
| 7 | 07002-13334 | O-RING | A70001-UP- | |
| 8 | 07236-11034 | ELBOW | A70001-UP- | |
| 9 | 281-01-13180 | CLIP | A70001-UP- | |
| 10 | 01435-01016 | BOLT | A70001-UP- | |
| 11 | 418-16-21120 | BRACKET | A70001-UP- | |
| 12 | 01435-01016 | BOLT | A70001-UP- |
