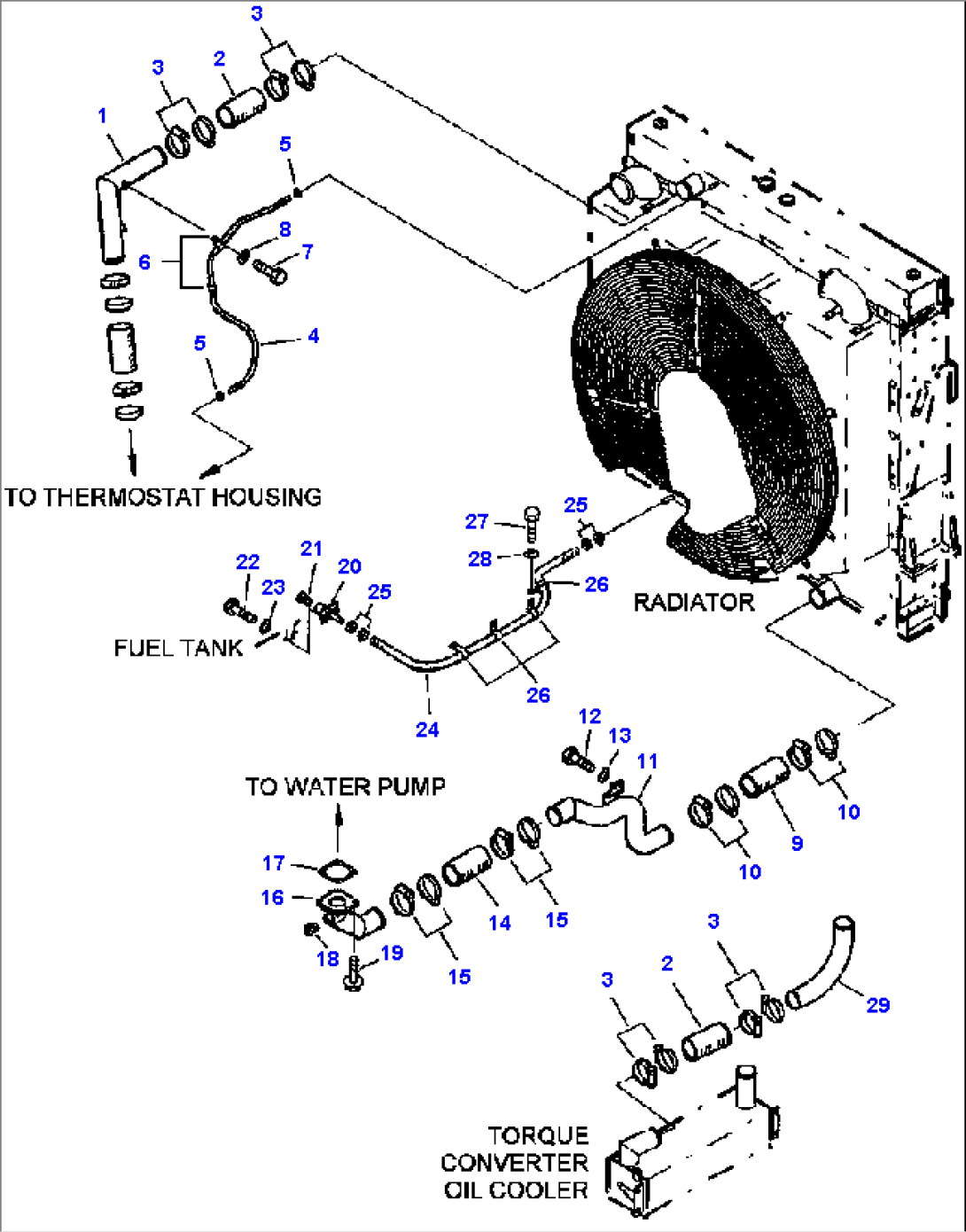

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 428-03-12440 | TUBE | A50001 -- | |
| 2 | 07260-27418 | HOSE | A50001 -- | |
| 3 | 07289-00095 | CLAMP | A50001 -- | |
| 4 | 09483-40309 | HOSE | A50001 -- | |
| 5 | 07281-00197 | CLAMP | A50001 -- | |
| 6 | 08036-61814 | CLIP | A50001 -- | |
| 7 | 01010-81016 | BOLT | A50001 -- | |
| 8 | 01643-31032 | WASHER | A50001 -- | |
| 9 | 07260-27432 | HOSE | A50001 -- | |
| 10 | 07289-00095 | CLAMP | A50001 -- | |
| 11 | 428-03-22160 | TUBE | A50001 -- | |
| 12 | 01010-81225 | BOLT | A50001 -- | |
| 13 | 01643-31232 | WASHER | A50001 -- | |
| 14 | 07260-27422 | HOSE | A50001 -- | |
| 15 | 07289-00095 | CLAMP | A50001 -- | |
| 16 | 428-03-12141 | TUBE | A50001 -- | |
| 17 | 6693-62-9242 | GASKET | A50001 -- | |
| 18 | 07043-70415 | PLUG | A50001 -- | |
| 19 | 01435-01030 | BOLT | A50001 -- | |
| 20 | 426-01-11231 | TUBE | A50001 -- | |
| 21 | 424-01-11110 | PLUG | A50001 -- | |
| 22 | 01010-81030 | BOLT | A50001 -- | |
| 23 | 01643-31032 | WASHER | A50001 -- | |
| 24 | 427-03-11510 | HOSE | A50001 -- | |
| 25 | 07281-00359 | CLAMP,HOSE | A50001 -- | |
| 26 | 08036-03014 | CLIP | A50001 -- | |
| 27 | 01010-81020 | BOLT | A50001 -- | |
| 28 | 01643-31032 | WASHER | A50001 -- | |
| 29 | TUBE (SEE FIG. C0120-02A0) | A50001 -- |
