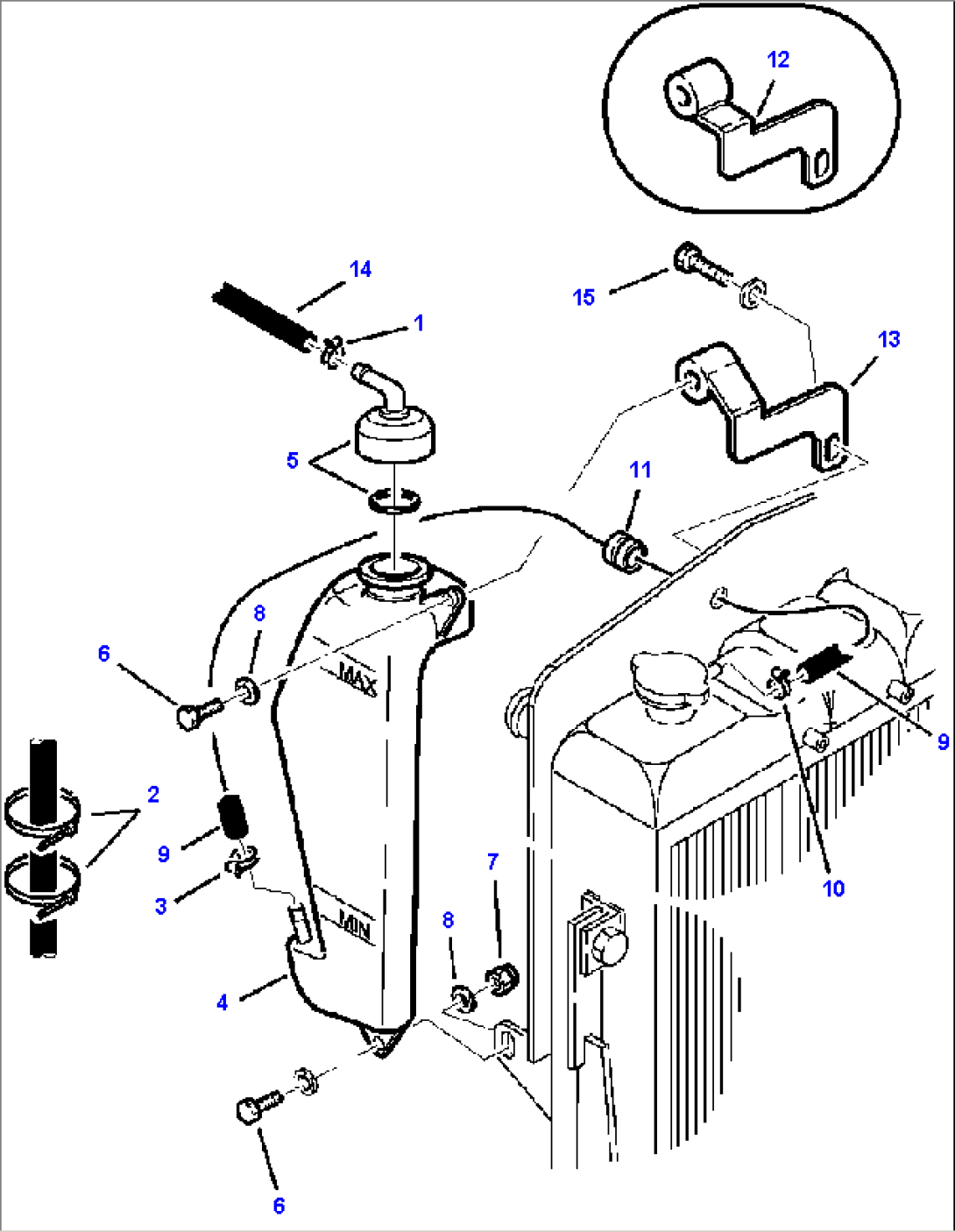

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 802660610 | CLAMP | A70010-- | |
| 2 | 885180016 | STRAP, TIE | A70010-- | |
| 3 | 802660615 | CLAMP | A70010-- | |
| 4 | 312607153 | TANK, EXPANSION | A70010-- | |
| 5 | 816215125 | CAP | A70010-- | |
| 6 | 801015087 | BOLT | A70010-- | |
| 7 | 801880208 | NUT, LOCK | A70010-- | |
| 8 | 802170001 | WASHER | A70010-- | |
| 9 | 312607816 | HOSE | A70010-- | |
| 10 | 802660612 | CLAMP | A70010-- | |
| 11 | 885411159 | GROMMET, RUBBER | A70010-- | |
| 12 | 312607125 | SUPPORT, UPPER | A70010-A70013- | |
| 13 | 312607154 | SUPPORT, UPPER | A70014-- | |
| 14 | 306503811 | HOSE | A70010-- | |
| 15 | 801015068 | BOLT | A70010-- | |
| F1 FOR REPLACEMENT, ORDER THE FOLLOWING PART: | ||||
| 312607154 | SUPPORT, UPPER | |||
